Stage 6 Pro

Stage 6 Pro

F: 160MM | R: 150MM | W: 29

  • Brand new lightweight frame designed and built in Britain
  • 5-year frame warranty with limited lifetime crash replacement
  • Aggressive All-Mountain Geometry
  • Improved progressive suspension kinematics
  • On-board Orange SAFE – Store Accessories, Food & Equipment
  • Trunnion rear shock with 30mm shaft eyelet for bearing or bushing compatibility
  • Neutral pivot location allowing less drivetrain/suspension interaction
  • Improved dropout with UDH gear hanger
  • Short seatube sizing for longer dropper-post compatibility
  • Zero-stack tapered head-tube

Stage 6 Pro

F: 160MM | R: 150MM | W: 29

  • Brand new lightweight frame designed and built in Britain
  • 5-year frame warranty with limited lifetime crash replacement
  • Aggressive All-Mountain Geometry
  • Improved progressive suspension kinematics
  • On-board Orange SAFE – Store Accessories, Food & Equipment
  • Trunnion rear shock with 30mm shaft eyelet for bearing or bushing compatibility
  • Neutral pivot location allowing less drivetrain/suspension interaction
  • Improved dropout with UDH gear hanger
  • Short seatube sizing for longer dropper-post compatibility
  • Zero-stack tapered head-tube
Size
  • Small
  • Medium
  • Large
  • Extra Large
Frame Colour

F: 160MM | R: 150MM | W: 29

  • Brand new lightweight frame designed and built in Britain
  • 5-year frame warranty with limited lifetime crash replacement
  • Aggressive All-Mountain Geometry
  • Improved progressive suspension kinematics
  • On-board Orange SAFE – Store Accessories, Food & Equipment
  • Trunnion rear shock with 30mm shaft eyelet for bearing or bushing compatibility
  • Neutral pivot location allowing less drivetrain/suspension interaction
  • Improved dropout with UDH gear hanger
  • Short seatube sizing for longer dropper-post compatibility
  • Zero-stack tapered head-tube
Size
  • Small
  • Medium
  • Large
  • Extra Large
Frame Colour
£7,900.00 GBP
{price}% OFF

✅ Great news! Stage 6 Pro is in stock or Ready for Pre-Order Handmade frames and carefully thought out builds take time to create, we ask for up to a maximum or 6-8 weeks for pre-orders, quality isn't worth rushing.

BITS N' BOBS

OVERVIEW

  • F: 160MM | R: 150MM | W: 29Brand New — Lightweight Frame Handbuilt in Britain5 Year Frame Warranty with Limited Lifetime Crash ReplacementAggressive All-Mountain GeometryNew — Improved progressive suspension kinematicsNew — On-board Orange SAFE – Store Accessories, Food & EquipmentTrunnion rear shock with 30mm shaft eyelet for bearing or bushing compatibilityNeutral pivot location allowing less drivetrain/suspension interactionLow position offset pivot for chainring clearanceGeometry for reduced offset forkImproved dropout with UDH gear hangerNew — Short seatube sizing for longer dropper-post compatibilityBoost 148x12mm rear hub spacingNew — Zero-stack tapered head-tubeTop-tube bottle/accessory mountsBelow are correct - styleInternal cable/hose routingBrand New — Lightweight Frame - Handbuilt, Tested & Built in Britain5 Year Frame Warranty with Limited Lifetime Crash ReplacementAggressive All-Mountain GeometryNew — Improved suspension kinematicsNew — On-board Orange SAFE – Store Accessories, Food & EquipmentTrunnion rear shock with 30mm shaft eyelet for bearing or bushing compatibilityNeutral pivot location allowing less drivetrain/suspension interactionLow position offset pivot for chainring clearanceGeometry for reduced offset forkImproved dropout with UDH gear hangerNew — Short seatube sizing for longer dropper-post compatibilityBoost 148x12mm rear hub spacingNew — Zero-stack tapered head-tubeTop-tube bottle/accessory mountsInternal cable/hose routing

BUILD SPEC DETAILS

Frame and Fork
Frame 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 150.
Swingarm
Type Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
Rear Shock Formula Nebbia 205x57.5
Headset FPD 49mm / 56mm zerostack
Fork Formula Selva S 160mm 29
Drivetrain
Bottom Bracket Hope 30mm Black
Crankset Hope Black 170mm 32t
Rear Mech Shimano XT 12spd
Chain SRAM GX Eagle
Shifters Shimano XT 12spd
Cassette Shimano XT 10-51T 12spd
Wheel and Tyres
Wheelset Stans Flow Mk4 + Hope Pro 5 (Black) 29
Tyres Maxxis Minion DHF 2.5 3C Exo / DHR II 2.4 Exo 29
Braking
Brakes Formula Cura 4 200/200 (Black)
Finishing Kit
Seatpost KS Ragei 150/170mm Drop
Seat Clamp Strange Bolted
Stem Burgtec Enduro Black 42.5mm
Saddle SDG Strange Bel Air III
Handlebars Burgtec RideWide Enduro 800mm
Grips Strange Grappler Lock-On

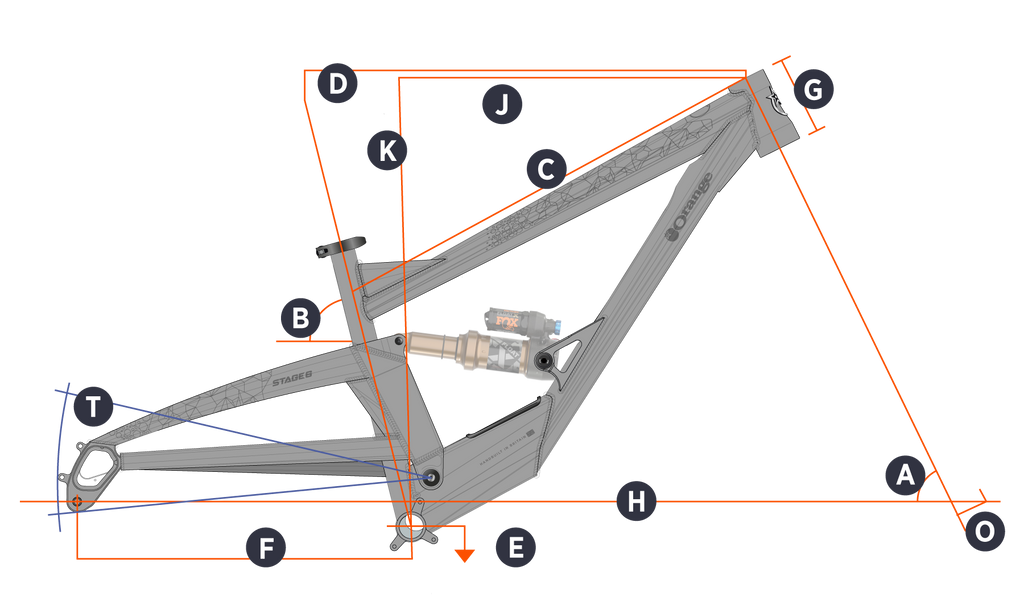

FRAME GEOMETRY

Stage 6 Pro
Monocoque/6061-T6 Custom Butted Aluminium Tubing
Frame Size M L XL
Seat Tube Length 16" 17" 18"
A. Head Angle 64° 64° 64°
B. Seat Angle (Effective) 76° 76° 76°
D. Top Tube (effective) 625 645 665
E. BB Height (from ground) 335 335 335
BB height (from axles) -35 -35 -35
F. Chainstay 469 469 469
G. Head Tube 110 120 130
H. Wheel base 1253 1273 1293
J. Reach 468 486 504
K. Stack 630 639 648
O. Fork Offset 42 42 42
T. Rear Travel 150 150 150
Standover 733 744 797
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740mm Ø tyres.
