Speedwork

THE ALL ROUNDER

  • Lightweight custom butted 6061-T6 OS aluminium designed in Britain
  • Carbon Fork with 15 mm bolt-through axle
  • 5 year frame warranty
  • Tektro hydraulic disc brakes
  • Built for weekend gravel epics as well as your daily workhorse
  • Comfort and control but with road bike speed
  • 700c x 37c tyres giving that perfect blend of comfort and speed
  • Shimano Deore 1 x 11spd drivetrain with 11-51 range for all the gears you'll ever need

Speedwork

THE ALL ROUNDER

  • Lightweight custom butted 6061-T6 OS aluminium designed in Britain
  • Carbon Fork with 15 mm bolt-through axle
  • 5 year frame warranty
  • Tektro hydraulic disc brakes
  • Built for weekend gravel epics as well as your daily workhorse
  • Comfort and control but with road bike speed
  • 700c x 37c tyres giving that perfect blend of comfort and speed
  • Shimano Deore 1 x 11spd drivetrain with 11-51 range for all the gears you'll ever need
Size
  • Small
  • Medium
  • Large
  • Extra Large
Frame Colour

THE ALL ROUNDER

  • Lightweight custom butted 6061-T6 OS aluminium designed in Britain
  • Carbon Fork with 15 mm bolt-through axle
  • 5 year frame warranty
  • Tektro hydraulic disc brakes
  • Built for weekend gravel epics as well as your daily workhorse
  • Comfort and control but with road bike speed
  • 700c x 37c tyres giving that perfect blend of comfort and speed
  • Shimano Deore 1 x 11spd drivetrain with 11-51 range for all the gears you'll ever need
Size
  • Small
  • Medium
  • Large
  • Extra Large
Frame Colour
£1,360.00 GBP
PLEASE NOTE: Final date to order for guaranteed Pre-Christmas delivery is 17th December. We will still be taking orders over the holidays, but won't be processing them until January 5th.

BITS N' BOBS

OVERVIEW

A week is a long time to go without a dash of Orange, so we created the Speedwork; a super-fast everyday flat handlebar gravel bike that's far beyond a hybrid. The Speedwork defies being labelled; a breathtaking blend of gravel bike comfort and road bike speed is what this bike is all about, with a healthy dose of fun thrown in.

A brand new frame for this year sees updated geometry, internal cable routing and some neat extra features for rack and mudguard users. We've also added an extra set of bottle bosses under the downtube if frame bags are your thing.

Built around our legendary 6061 tubing, the Speedwork offers all the comfort and control you'd ever need, with a rigid carbon fork, 700c wheels and fast-rolling 37c tyres for flat-out speed on man-made terrain. Big gear ratios and reliable componentry means minimal servicing even when you’re clocking up commuter miles.

A bike this good isn’t just a weekday workhorse though. For weekend bike-packing trips, that gravel race you really want to do, the daily grind or just relishing the thrill of riding fast, the Speedwork totally nails it. Of all the Oranges in your quiver, this could be the one you ride most.

BUILD SPEC DETAILS

Frame and Fork
Frame 6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 700c.
Fork Strange Carbon With Alloy Steerer
Swingarm
Type Bolt Type Allen Key Head (12 x 142mm Hub)
Headset FPD 44mm / 56mm zerostack
Drivetrain
Bottom Bracket FSA
Crankset FSA Omega 40t
Cassette Shimano Deore 11-51T 11spd
Finishing Kit
Seatpost Strange Post 400 30.9
Seat Clamp Strange Bolted
Saddle WTB Volt Steel
Grips Strange Grappler Lock-On

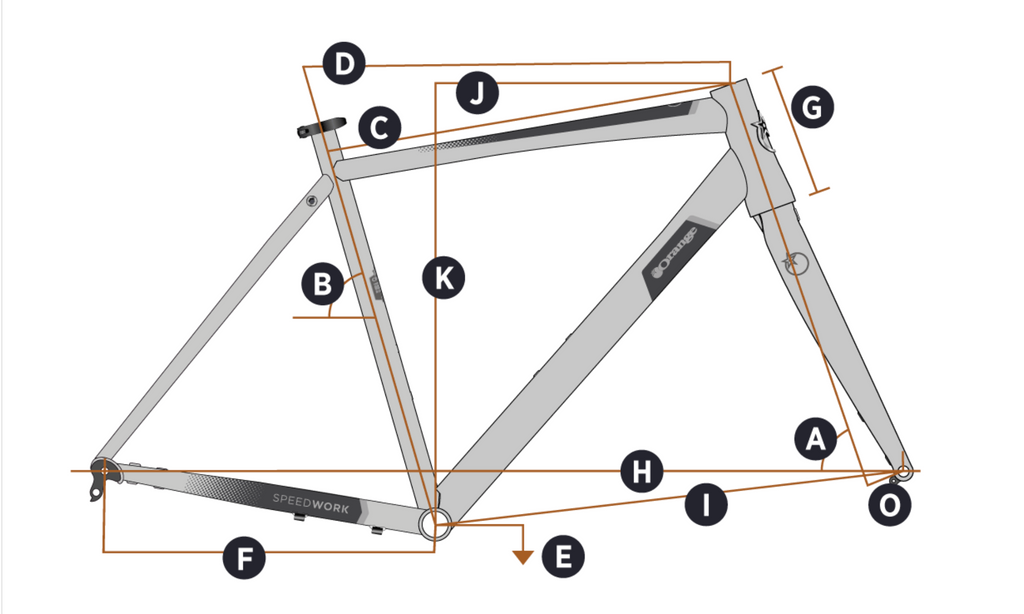

FRAME GEOMETRY

Speedwork
6061-T6 Double Butted Aluminium
Frame Size S M L XL
A. Head Angle 69° 69° 69° 69°
B. Seat Angle (Effective) 74° 74° 74° 74°
D. Top Tube (effective) 528 548 564 580
E. BB Height (from ground) -65 -65 -65 -65
F. Chainstay 433 433 433 433
G. Head Tube 110 130 150 170
H. Wheel base 1032 1053 1071 1088
J. Reach 370 385 395 405
K. Stack 552 570 589 608
Standover 786 757 775 799
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 719 mm Ø tyre.
  • black_line_froot

    HANDMADE IN HALIFAX

  • orange-solid-froot_2x_c1f947d0-8a48-4075-a1bd-fae947f8834f

    EXPERT TESTED FRAMES

  • Orange_Froot_Icon_9a2c9727-8114-45ec-8aff-309d6f162de7

    COLOUR OPTIONS

  • black_line_froot

    5 YEAR FRAME

FRAME SIZING

Getting the right size bike is perhaps the most important decision once you have decided which model suits you best.

Traditionally bikes have been sized on the height of the seat-tube, but more recently, things have moved on.
