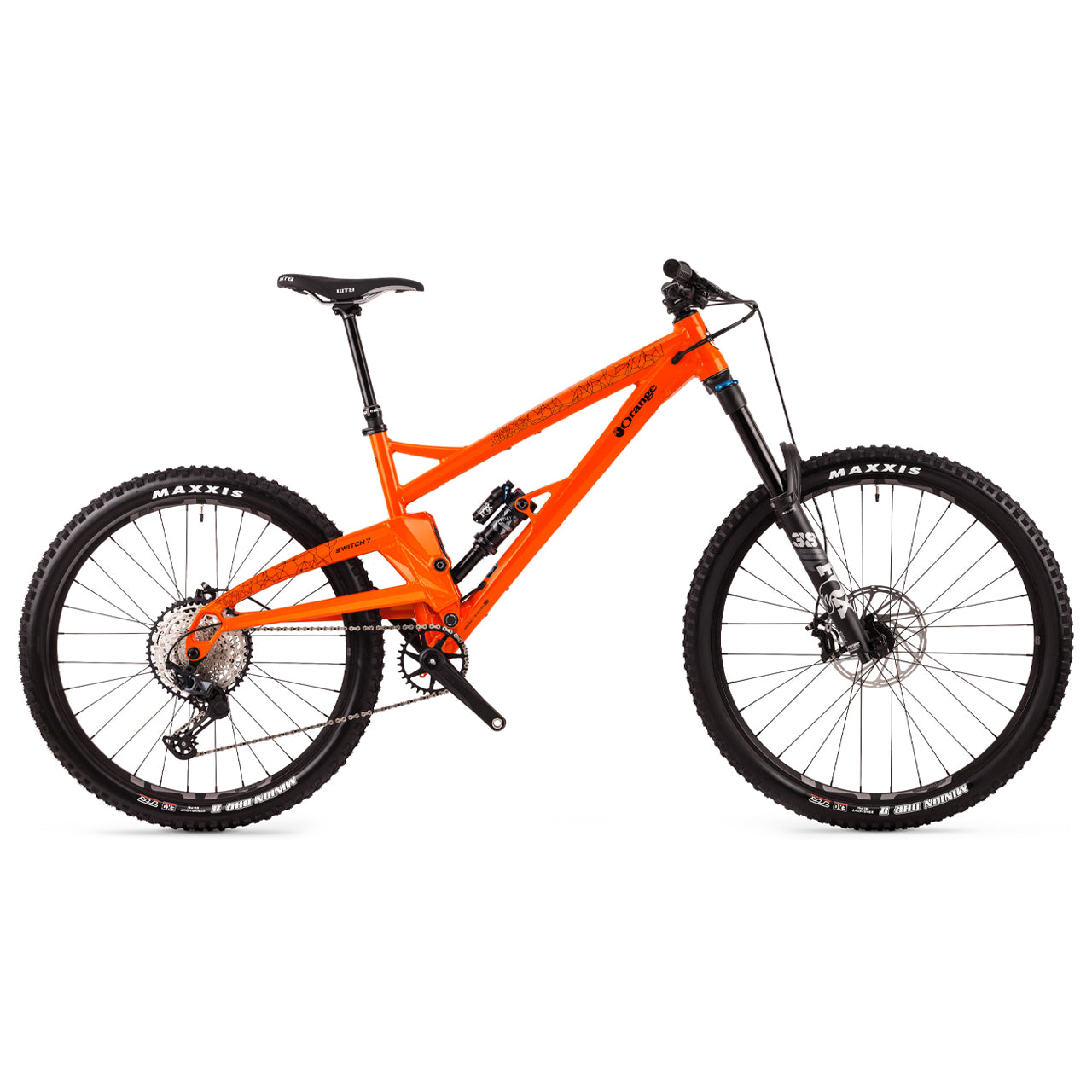

Switch 7 Pro

Switch 7 Pro

F: 170MM | R: 170MM | W: 29/27.5 MX

  • Brand New Lightweight Frame machined & Handbuilt in Britain
  • 5-year frame warranty with limited lifetime crash replacement
  • Aggressive Enduro Race geometry
  • New Linkage Driven Progressive suspension kinematics
  • More neutral pivot location allowing less drivetrain/suspension interaction
  • Asymmetrical swingarm with increased longitudinal stiffness
  • New top tube accessory/Bottle cage mounts and bottle dimple in frame
  • New stiffer lower profile 56mm zerostack Head tube
  • New Improved dropout with UDH gear hanger
  • 205 x 57.5 trunnion shock for reduced friction

Switch 7 Pro

F: 170MM | R: 170MM | W: 29/27.5 MX

  • Brand New Lightweight Frame machined & Handbuilt in Britain
  • 5-year frame warranty with limited lifetime crash replacement
  • Aggressive Enduro Race geometry
  • New Linkage Driven Progressive suspension kinematics
  • More neutral pivot location allowing less drivetrain/suspension interaction
  • Asymmetrical swingarm with increased longitudinal stiffness
  • New top tube accessory/Bottle cage mounts and bottle dimple in frame
  • New stiffer lower profile 56mm zerostack Head tube
  • New Improved dropout with UDH gear hanger
  • 205 x 57.5 trunnion shock for reduced friction

F: 170MM | R: 170MM | W: 29/27.5 MX

  • Brand New Lightweight Frame machined & Handbuilt in Britain
  • 5-year frame warranty with limited lifetime crash replacement
  • Aggressive Enduro Race geometry
  • New Linkage Driven Progressive suspension kinematics
  • More neutral pivot location allowing less drivetrain/suspension interaction
  • Asymmetrical swingarm with increased longitudinal stiffness
  • New top tube accessory/Bottle cage mounts and bottle dimple in frame
  • New stiffer lower profile 56mm zerostack Head tube
  • New Improved dropout with UDH gear hanger
  • 205 x 57.5 trunnion shock for reduced friction

SIZE | COLOUR

£5,800.00 GBP
{price}% OFF

INFORMATION

OVERVIEW

F: 170MM | R: 170MM | W: 29/27.5

  • Brand New Lightweight Frame machined & Handbuilt in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • New Aggressive Enduro Race geometry optimised for 170mm front & rear travel
  • New STRANGE Power Link Driven Progressive Suspension Kinematics.
  • More neutral pivot location allowing less drivetrain/suspension interaction
  • Low position Offset pivot – neutral suspension feel & increased chainring clearance
  • Asymmetrical swingarm with increased longitudinal stiffness
  • New top tube accessory/Bottle cage mounts and bottle dimple in frame
  • New stiffer lower profile 56mm zerostack Head tube
  • Geometry for reduced offset fork
  • New Improved dropout with UDH gear hanger
  • Boost 148 rear hub spacing
  • New Top tube accessory/Bottle cage mounts and bottle dimple in frame
  • Internal cable/hose routing
  • 30 x 8 bearing mount compatible shock
  • 205 x 65 trunnion shock for reduced friction
  • Adjustable BB height

BUILD SPEC DETAILS

Frame and Fork
Frame 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. Rear wheel travel: 170mm.
Fork Fox Performance 38 Float 170mm 29
Swingarm
Type Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
Rear Shock Fox Float X Performance 205x65
Headset FPD 44mm / 56mm zerostack
Drivetrain
Rear Mech Shimano SLX 12spd
Chain KMC 12spd
Shifters Shimano SLX 12spd
Cassette Shimano SLX 10-51T 12spd
Bottom Bracket SRAM DUB
Crankset SRAM SX Eagle 32t
Wheel and Tyres
Wheelset E13 LG1 30mm + Strange Pro 29
Tyres Maxxis Minion DHR II 2.4 EXO 29/ DHR II 2.4 EXO 27.5
Braking
Brakes SRAM Guide RE 200/180
Finishing Kit
Stem Burgtec Enduro Black 42.5mm
Saddle WTB Silverado SL
Handlebars Burgtec RideWide Enduro 800mm
Grips Strange Grappler Lock-On
Seatpost SDG Tellis 150/170mm
Seat Clamp Strange Bolted

TECHNICAL DETAILS

technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
170 mm 170 mm 170 mm

Shock Length 205 x 65 mm
Rear Hub 12 x 148mm Boost
Fork Offset 44 mm
Seatpost Ø 30.9 mm
Seatclamp Ø 34.9 mm
Front Derailleur N/A
BB Shell 73 mm ISCG05
Tapered Headset Upper: ZS49/28.6
Lower: ZS56/40

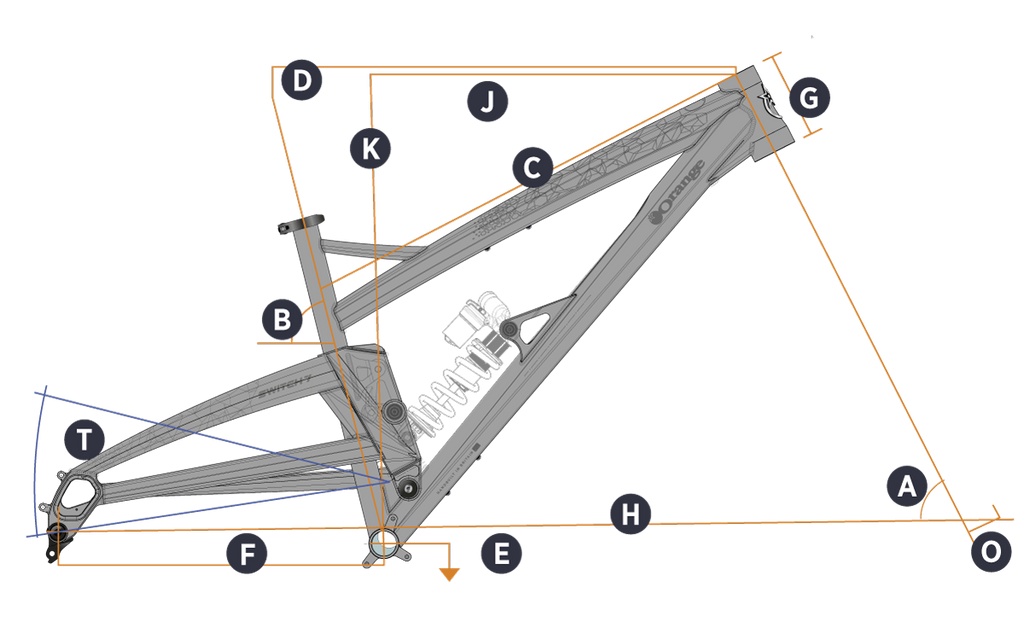

FRAME GEOMETRY

Switch 7 Pro
Monocoque/6061-T6 Custom Butted Aluminium Tubing
Frame Size S M L XL
Seat Tube Length 16" 17" 18" 19"
A. Head Angle 63° 63° 63° 63°
B. Seat Angle (Effective) 76° 76° 76° 76°
D. Top Tube (effective) 605 625 645 665
E. BB Height (from ground) 335 335 335 335
BB height (from axles) -16.2 -16.2 -16.2 -16.2
F. Chainstay 448 448 448 448
G. Head Tube 110 110 120 130
H. Wheel base 1250 1270 1292 1314
J. Reach 458 466 484 502
K. Stack 636 636 646 654
O. Fork Offset 44 44 44 44
T. Rear Travel 170 170 170 170
Standover 706 724 750 770
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740mm Front and 700mm Rear mm Ø tyre.

FRAME SIZING

Getting the right size bike is perhaps the most important decision once you have decided which model suits you best.

Traditionally bikes have been sized on the height of the seat-tube, but more recently, things have moved on.
