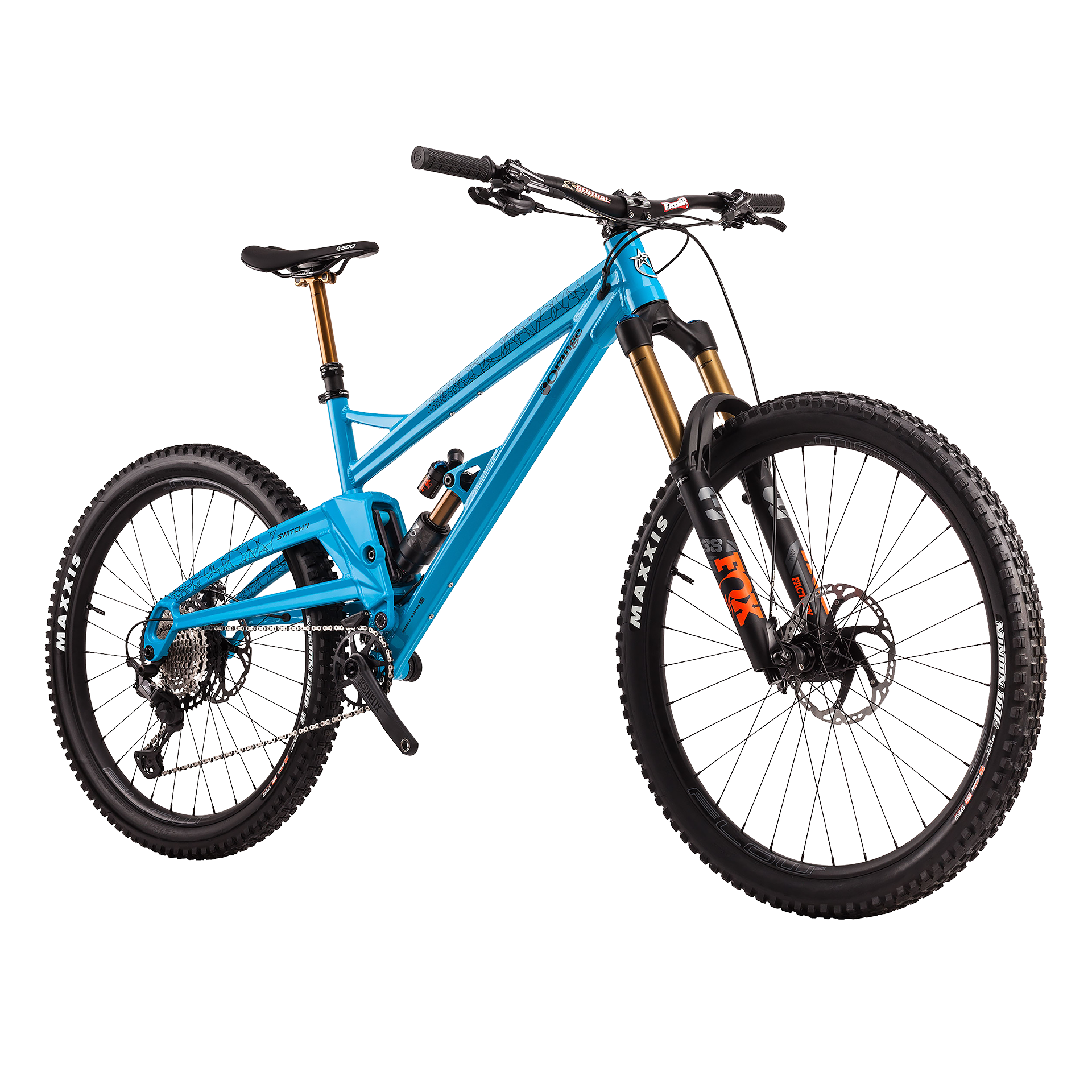

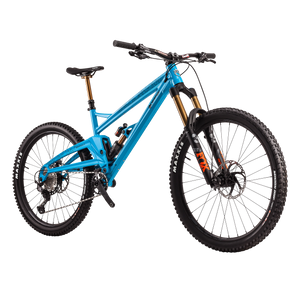

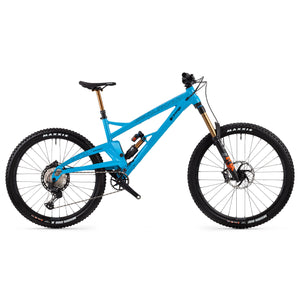

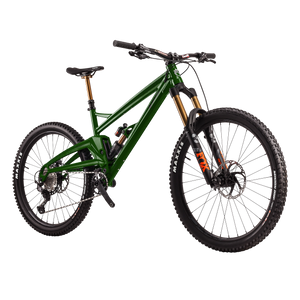

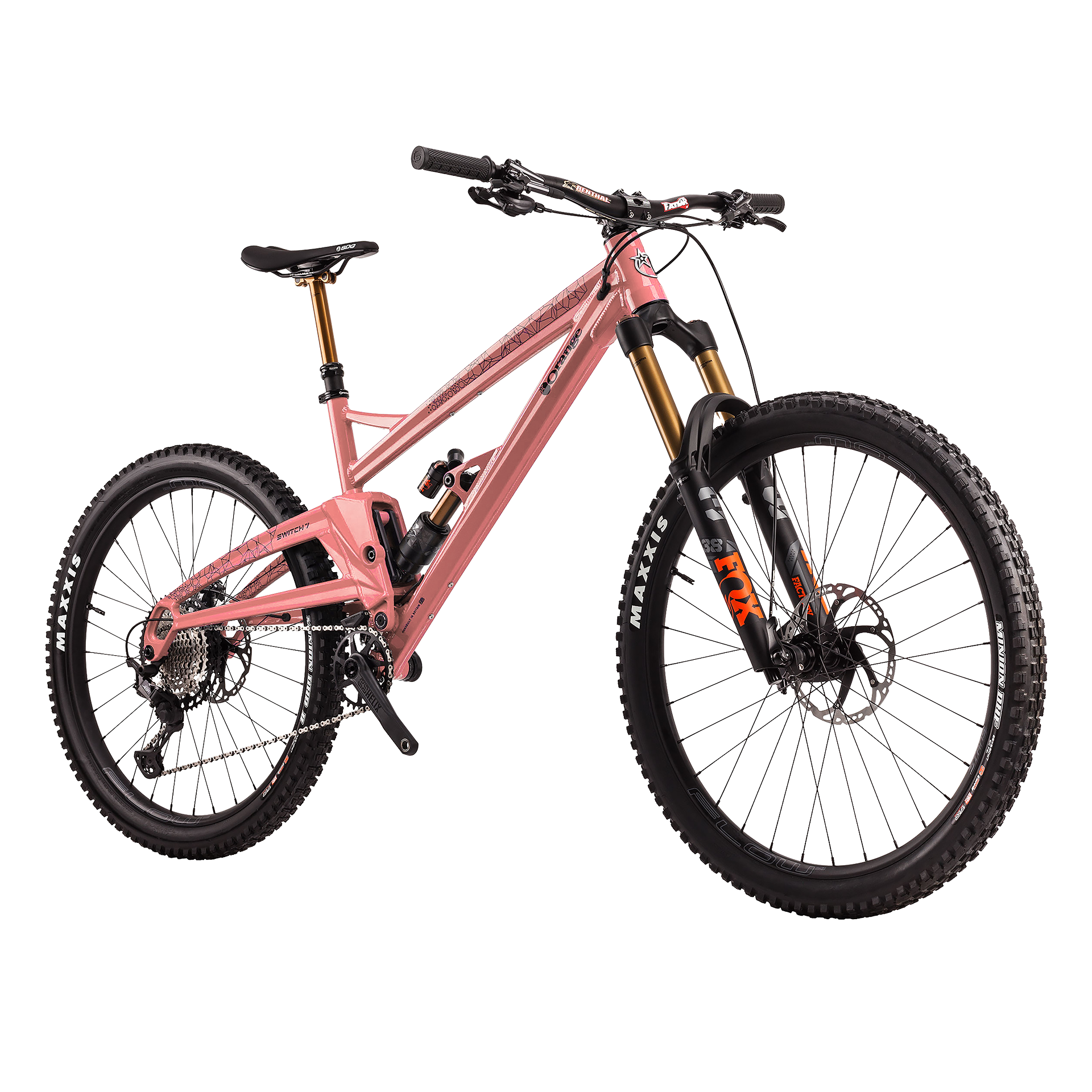

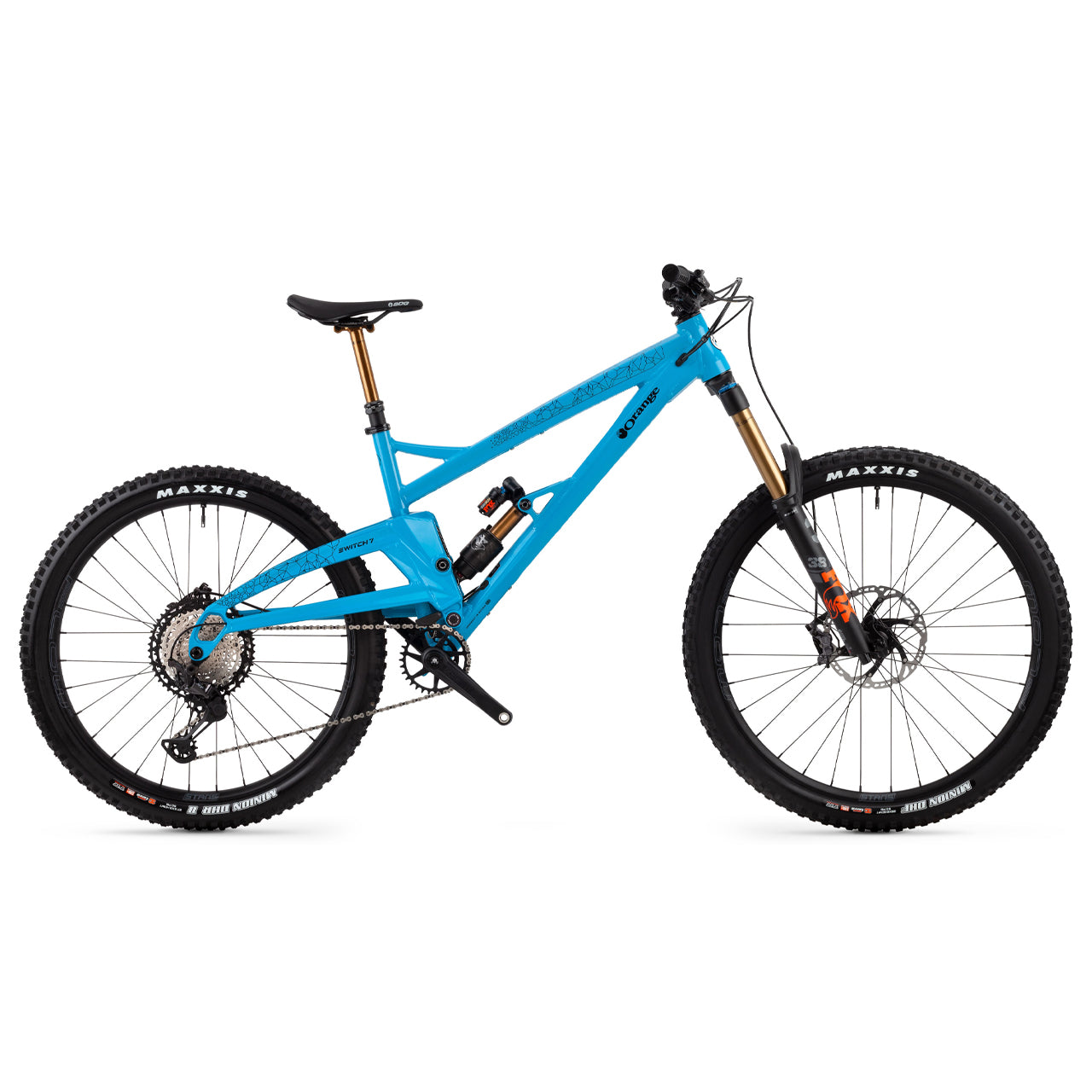

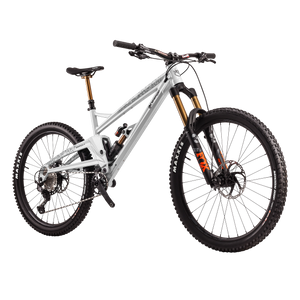

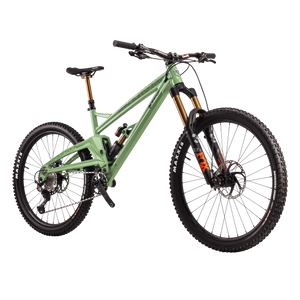

Switch 7 Factory

Switch 7 Factory

F: 170MM | R: 170MM | W: 29/27.5 MX

  • Brand New Lightweight Frame machined & Handbuilt in Britain
  • 5-year frame warranty with limited lifetime crash replacement
  • Aggressive Enduro Race geometry
  • New Linkage Driven Progressive suspension kinematics
  • More neutral pivot location allowing less drivetrain/suspension interaction
  • Asymmetrical swingarm with increased longitudinal stiffness
  • New top tube accessory/Bottle cage mounts and bottle dimple in frame
  • New stiffer lower profile 56mm zerostack Head tube
  • New Improved dropout with UDH gear hanger
  • 205 x 57.5 trunnion shock for reduced friction

Switch 7 Factory

F: 170MM | R: 170MM | W: 29/27.5 MX

  • Brand New Lightweight Frame machined & Handbuilt in Britain
  • 5-year frame warranty with limited lifetime crash replacement
  • Aggressive Enduro Race geometry
  • New Linkage Driven Progressive suspension kinematics
  • More neutral pivot location allowing less drivetrain/suspension interaction
  • Asymmetrical swingarm with increased longitudinal stiffness
  • New top tube accessory/Bottle cage mounts and bottle dimple in frame
  • New stiffer lower profile 56mm zerostack Head tube
  • New Improved dropout with UDH gear hanger
  • 205 x 57.5 trunnion shock for reduced friction
Size
  • Small
  • Medium
  • Large
  • Extra Large

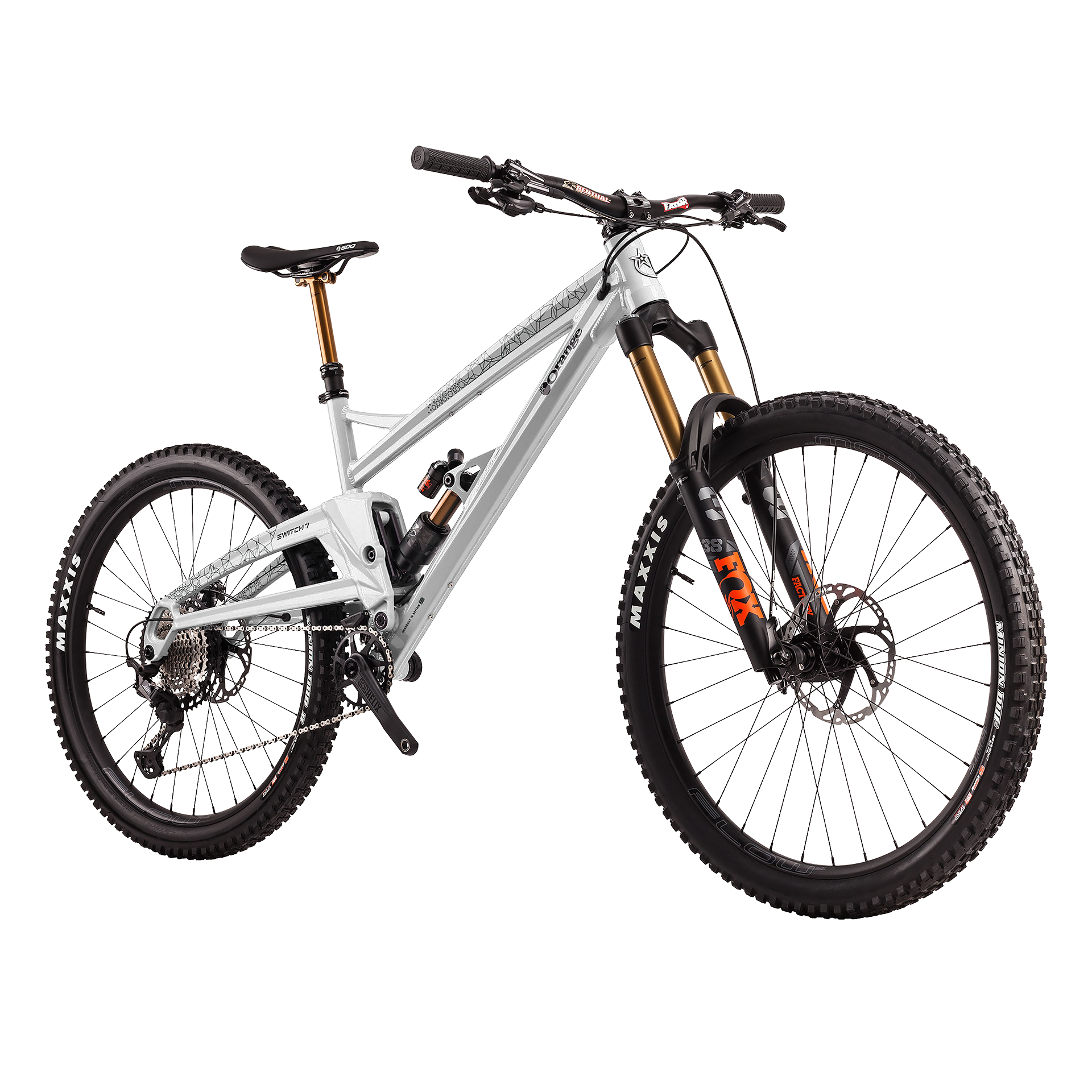

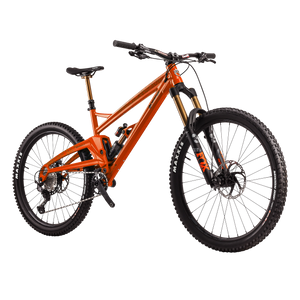

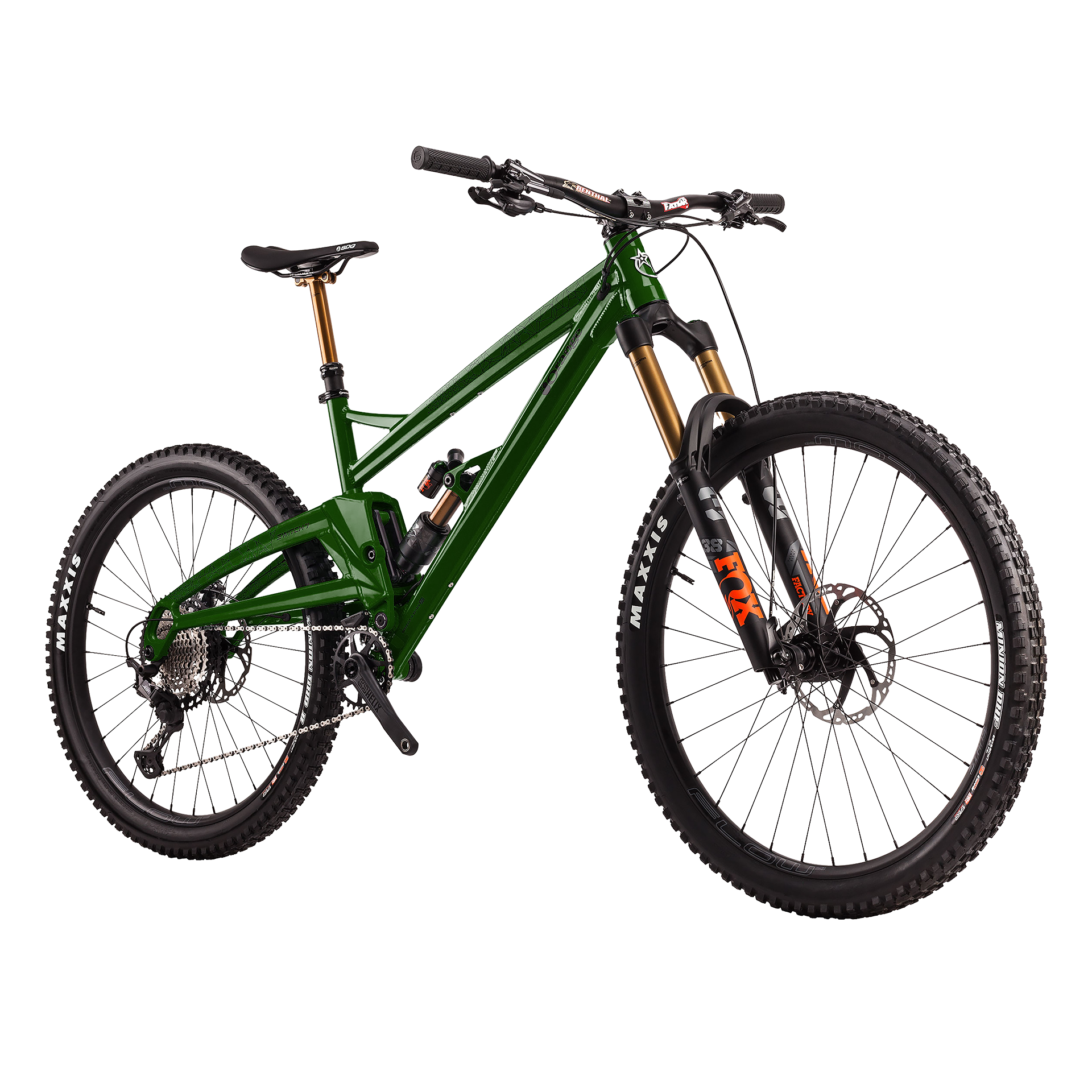

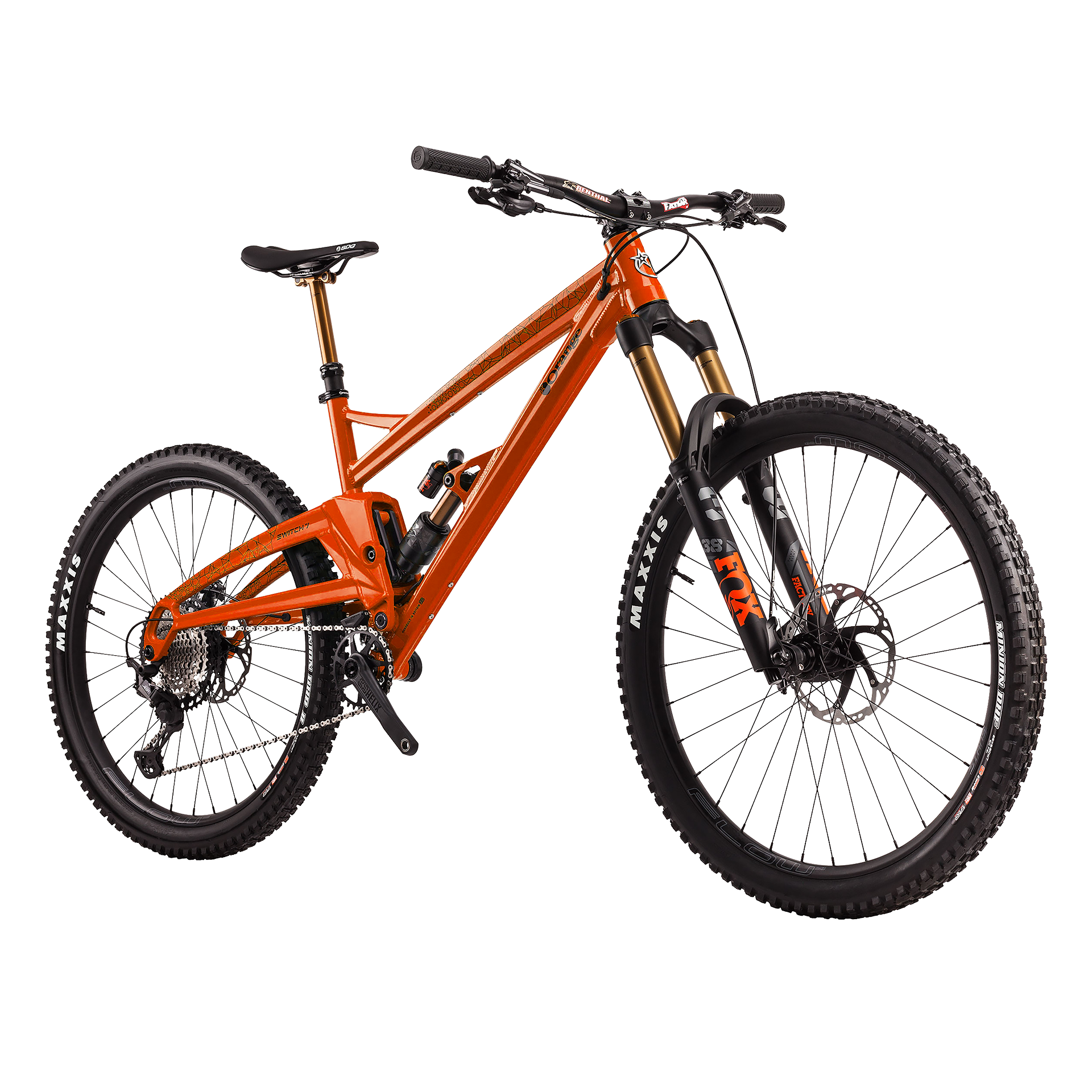

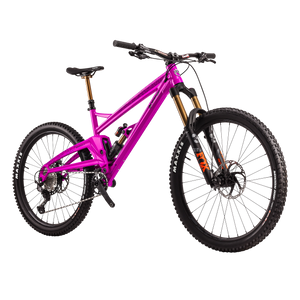

Frame Colour

F: 170MM | R: 170MM | W: 29/27.5 MX

  • Brand New Lightweight Frame machined & Handbuilt in Britain
  • 5-year frame warranty with limited lifetime crash replacement
  • Aggressive Enduro Race geometry
  • New Linkage Driven Progressive suspension kinematics
  • More neutral pivot location allowing less drivetrain/suspension interaction
  • Asymmetrical swingarm with increased longitudinal stiffness
  • New top tube accessory/Bottle cage mounts and bottle dimple in frame
  • New stiffer lower profile 56mm zerostack Head tube
  • New Improved dropout with UDH gear hanger
  • 205 x 57.5 trunnion shock for reduced friction
Size
  • Small
  • Medium
  • Large
  • Extra Large
Frame Colour
£7,400.00 GBP
{price}% OFF
PLEASE NOTE: Final date to order for guaranteed Pre-Christmas delivery is 17th December. We will still be taking orders over the holidays, but won't be processing them until January 5th.

BITS N' BOBS

OVERVIEW

F: 170MM | R: 170MM | W: 29/27.5

  • Brand New Lightweight Frame machined & Handbuilt in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • New Aggressive Enduro Race geometry optimised for 170mm front & rear travel
  • New STRANGE Power Link Driven Progressive Suspension Kinematics.
  • More neutral pivot location allowing less drivetrain/suspension interaction
  • Low position Offset pivot – neutral suspension feel & increased chainring clearance
  • Asymmetrical swingarm with increased longitudinal stiffness
  • New top tube accessory/Bottle cage mounts and bottle dimple in frame
  • New stiffer lower profile 56mm zerostack Head tube
  • Geometry for reduced offset fork
  • New Improved dropout with UDH gear hanger
  • Boost 148 rear hub spacing
  • New Top tube accessory/Bottle cage mounts and bottle dimple in frame
  • Internal cable/hose routing
  • 30 x 8 bearing mount compatible shock
  • 205 x 65 trunnion shock for reduced friction
  • Adjustable BB height

BUILD SPEC DETAILS

Frame and Fork
Frame 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. Rear wheel travel: 170.
Swingarm
Type Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
Rear Shock
Shock Fox Float X2 Factory 205x65
Headset
Headset Hope Black - 49mm for Tapered Steerer
Fork
Fork Fox Factory 38 Float 170mm 29
Drivetrain
Chain Device E13 Vario Compact Guide
Bottom Bracket SRAM DUB
Crankset SRAM GX Eagle 32t
Rear Mech Shimano XT 12spd
Chain KMC 12spd
Shifters Shimano XT 12spd
Cassette Shimano XT 10-51T 12spd
Wheel and Tyres
Wheelset Stans Flow Mk4 + Hope Pro 4 (Black) 29 + 27
Tyres Maxxis Minion DHF 2.5 3c EXO+ 29 / DHR II 2.4 3c EXO+ 27.5
Braking
Brakes Shimano XT Trail 203/180
Finishing Kit
Seatpost Fox Factory Transfer 175mm Drop
Seat Clamp Strange Bolted
Stem Burgtec Enduro Black 42.5mm
Saddle SDG Strange Bel Air III
Handlebars Renthal FatBar M35 800mm
Grips Strange Grappler Lock-On

FRAME GEOMETRY

Switch 7 Factory
Monocoque/6061-T6 Custom Butted Aluminium tubing
Frame Size S M L XL
Seat Tube Length 16" 17" 18" 19"
A. Head Angle 63° 63° 63° 63°
B. Seat Angle (Effective) 76° 76° 76° 76°
D. Top Tube (effective) 605 625 645 665
E. BB Height (from ground) 335 335 335 335
BB height (from axles) -16.2 -16.2 -16.2 -16.2
F. Chainstay 448 448 448 448
G. Head Tube 110 110 120 130
H. Wheel base 1250 1270 1292 1314
J. Reach 458 466 484 502
K. Stack 636 636 646 654
O. Fork Offset 44 44 44 44
T. Rear Travel 170 170 170 170
Standover 706 724 750 770
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740mm Front and 700mm Rear mm Ø tyre.
