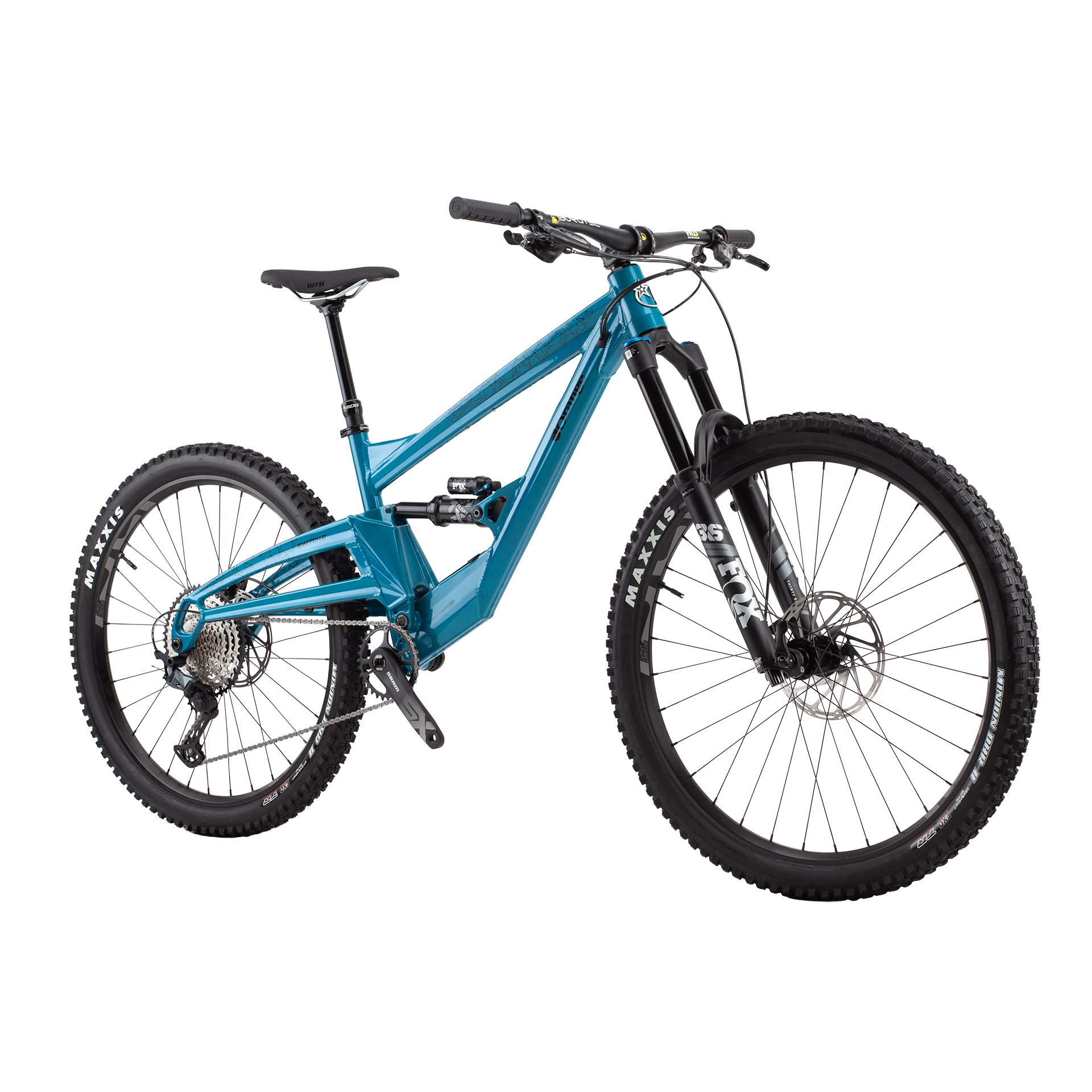

Switch 6 Pro

Switch 6 Pro

F: 160MM | R: 160MM | W: 29/27.5

  • Brand New Lightweight Frame machined & Handbuilt in Britain
  • 5-year frame warranty with limited lifetime crash replacement
  • Aggressive All-Mountain Geometry
  • New On-board Orange SAFE – Store Accessories, Food & Equipment
  • More neutral pivot location allowing less drivetrain/suspension interaction
  • Short seatube sizing for longer dropper-post compatibility
  • Zero-stack tapered head-tube
  • New stiffer lower profile 56mm zerostack Head tube
  • New Improved dropout with UDH gear hanger
  • Top-tube bottle/accessory mounts

Switch 6 Pro

F: 160MM | R: 160MM | W: 29/27.5

  • Brand New Lightweight Frame machined & Handbuilt in Britain
  • 5-year frame warranty with limited lifetime crash replacement
  • Aggressive All-Mountain Geometry
  • New On-board Orange SAFE – Store Accessories, Food & Equipment
  • More neutral pivot location allowing less drivetrain/suspension interaction
  • Short seatube sizing for longer dropper-post compatibility
  • Zero-stack tapered head-tube
  • New stiffer lower profile 56mm zerostack Head tube
  • New Improved dropout with UDH gear hanger
  • Top-tube bottle/accessory mounts
Size
  • Small
  • Medium
  • Large
  • Extra Large
Frame Colour

F: 160MM | R: 160MM | W: 29/27.5

  • Brand New Lightweight Frame machined & Handbuilt in Britain
  • 5-year frame warranty with limited lifetime crash replacement
  • Aggressive All-Mountain Geometry
  • New On-board Orange SAFE – Store Accessories, Food & Equipment
  • More neutral pivot location allowing less drivetrain/suspension interaction
  • Short seatube sizing for longer dropper-post compatibility
  • Zero-stack tapered head-tube
  • New stiffer lower profile 56mm zerostack Head tube
  • New Improved dropout with UDH gear hanger
  • Top-tube bottle/accessory mounts
Size
  • Small
  • Medium
  • Large
  • Extra Large
Frame Colour
£4,900.00 GBP
{price}% OFF
PLEASE NOTE: Final date to order for guaranteed Pre-Christmas delivery is 17th December. We will still be taking orders over the holidays, but won't be processing them until January 5th.

BITS N' BOBS

OVERVIEW

The new Switch 6 features a host of upgades and new features from the original MX wheeled trail bike we launched a few short years ago. Enduro and fast trail riders swear by its capability. Fast rolling, agile and forward thinking.

This new Switch 6 is a 160/160mm MX wheeled mountain bike for… well,  just about anything. If you've followed Orange Factory Racing you'll know the guys used the original Switch 6 for their first year of the EWS, or if you've heard of Jack Carthy (10x trials world champion) you'll know its equally at home hopping, skipping and jumping over some of Yorkshire's most precarious rock structures. It's also the chosen daily driver for many a rider, used on their local trails or summer trips abroad.

So by changing it we had a lot to live up to. Luckily when it comes to a performance trail bike we're confident that we are safe hands.

Sweating the Details

The Switch 6 is an MX wheeled Mountain bike, 160mm travel front and rear. It uses a 205x65 trunnion shock alongside revised upper & lower shock mounts, which now allows for a bearing eyelet to be used. This has been done to achieve a lower break away force, providing incredible sensitivity to the initial part of the shock's stroke, while maintaining our signature feel.

The layout of the New Switch 6 frame has also seen major revisions, the inclusion of Orange's S.A.F.E (Stores Accessories Food & Equipment) should mean you don't have to strap so much to the outside of your bike, you can keep it hidden and readily available. More room has been created to fit a larger water bottle inside the front triangle to keep you hydrated on those longer days in the saddle. We've added our new tapered head tube to improve stiffness and increase strength and we've also revised our sizing with shorter seat tube lengths to allow for longer dropper posts.

Technology developed on our most recent bikes also appears on the Switch 6, it has an asymmetrical swingarm, this allowed us to increase the bike's vertical stiffness whilst tuning its lateral compliance, producing a bike with a direct feel under power but still maintaining buckets of grip.

PRODUCT VIDEO

BUILD SPEC DETAILS

Frame and Fork
Frame 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. Rear wheel travel: 160.
Swingarm Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
Rear Shock Fox Float X Performance 205x65
Headset FPD 44mm / 56mm zerostack
Fork Fox Performance 36 Float 160mm 29
Drivetrain
Bottom Bracket SRAM DUB
Crankset SRAM SX Eagle 32t
Rear Mech Shimano SLX 12spd
Chain SRAM NX Eagle
Shifters Shimano SLX 12spd
Cassette Shimano SLX 10-51T 12spd
Wheel and Tyres
Wheelset E13 LG1 30mm + Strange Pro 29/27.5
Tyres Maxxis Minion DHR II 2.4 EXO 29/ DHR II 2.4 EXO 27.5
Braking
Brakes SRAM Guide RE 200/180
Finishing Kit
Seatpost SDG Tellis 150/170mm
Seat Clamp Strange Bolted
Stem Burgtec Enduro Black 42.5mm
Saddle WTB Silverado SL
Handlebars Burgtec RideWide Enduro 800mm
Grips Strange Grappler Lock-On

FRAME GEOMETRY

Switch 6 Pro
Monocoque/6061-T6 Custom Butted Aluminium tubing
Frame Size S M L XL
Seat Tube Length 15" 16" 17" 18"
A. Head Angle 64° 64° 64° 64°
B. Seat Angle (Effective) 76° 76° 76° 76°
D. Top Tube (effective) 605 625 645 665
E. BB Height (from ground) 335 335 335 335
BB height (from axles) -19 -19 -19 -19
F. Chainstay 450 450 450 450
G. Head Tube 110 110 120 130
H. Wheel base 1235 1255 1277 1299
J. Reach 448 468 486 504
K. Stack 630 630 639 648
O. Fork Offset 42 42 42 42
T. Rear Travel 160 160 160 160
Standover 716 733 744 797
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740mm Front and 700mm Rear mm Ø tyre.
