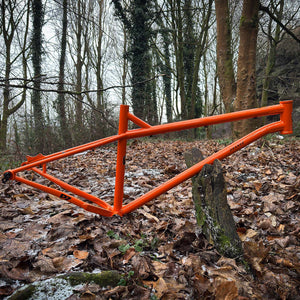

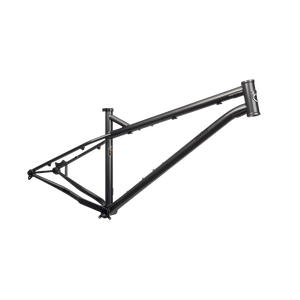

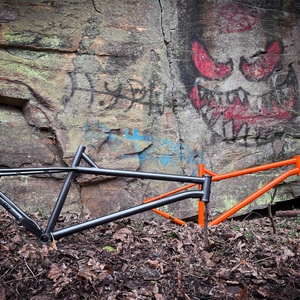

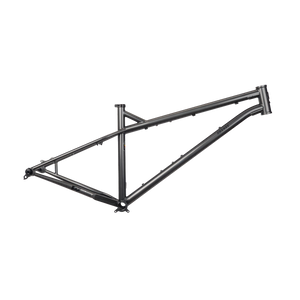

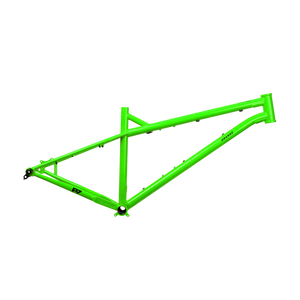

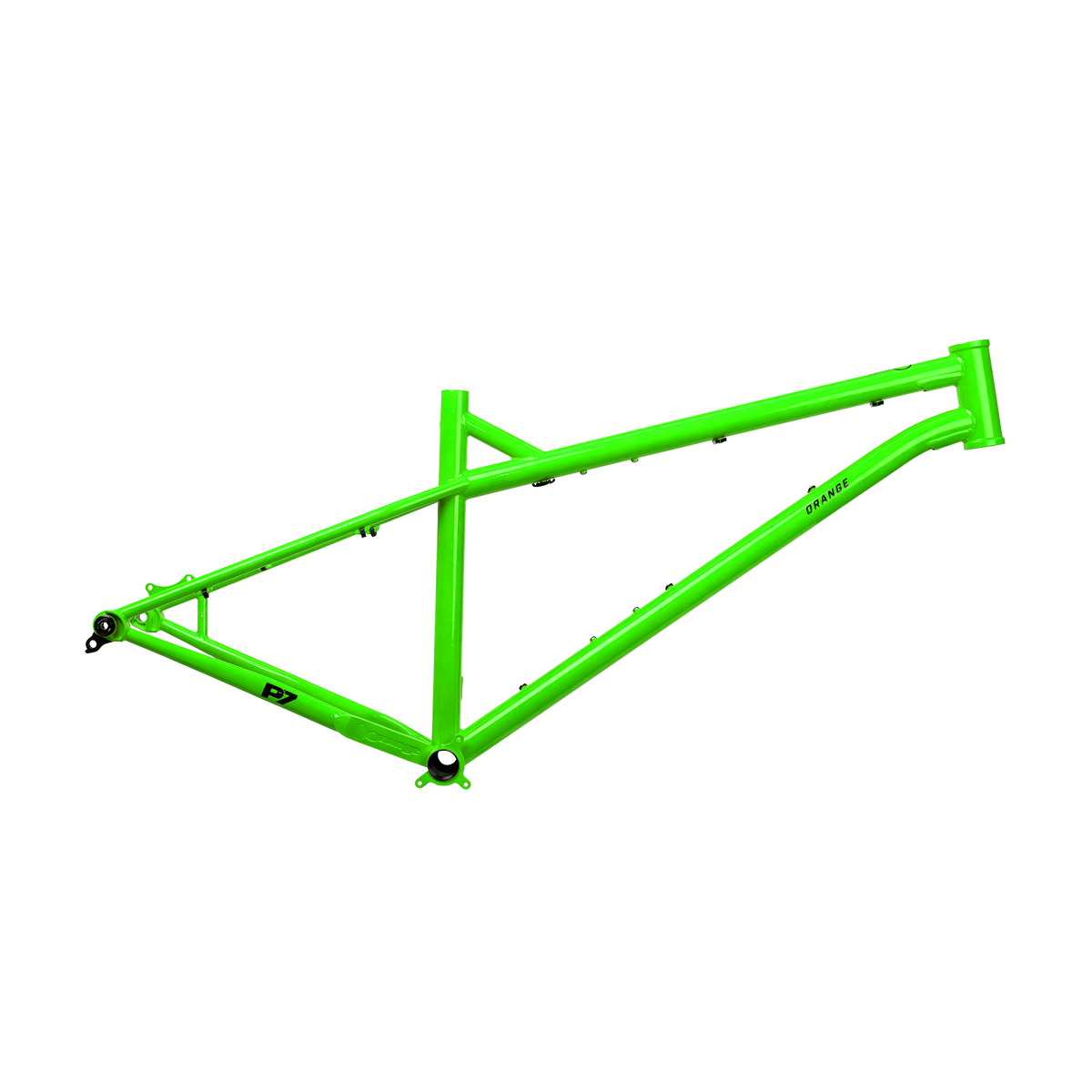

P7 MX Frame

F: 140MM | W: 29/27.5



  • Frame designed in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Custom butted Reynolds 525 CroMo Tubeset
  • MX wheels
  • UDH Dropout
  • Accessory mount
  • Geometry for a 140mm fork
  • Internal dropper routing


P7 MX Frame

F: 140MM | W: 29/27.5



  • Frame designed in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Custom butted Reynolds 525 CroMo Tubeset
  • MX wheels
  • UDH Dropout
  • Accessory mount
  • Geometry for a 140mm fork
  • Internal dropper routing


F: 140MM | W: 29/27.5



  • Frame designed in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Custom butted Reynolds 525 CroMo Tubeset
  • MX wheels
  • UDH Dropout
  • Accessory mount
  • Geometry for a 140mm fork
  • Internal dropper routing


£650.00 GBP
{price}% OFF

BITS N' BOBS

OVERVIEW

The P7MX is a Reynolds 525 frame, wielding 140mm of travel and as the name would suggest 29” front wheel and 27.5” rear wheel, hand welded by one of our partner factories we have over a decade of experience with. It is without doubt our most comprehensive P7 to date.

With MX wheels you gain the speed and confidence that a 29” wheel offers upfront,  with extra grip and great roll-over capabilities. While the 27.5” rear wheel keeps the back end fun and clearance to a maximum, making no trail out of bounds.

Keeping the hardcore hardtail credentials in check a 64.5º head angle and 480mm reach (Size – L) paired up with a 430mm chainstay and 75.5º seat angle mean you’re ready for everything, up or down.

The P7MX comes equipped with a UDH gear hanger, so whether you want the newest T-type groupset or the comfort of knowing you can get a gear hanger anywhere, the option is yours. There is also an accessory mount under the top tube so you can now run an additional bottle or accessory mount for spares, the P7 still has cables and hoses externally routed,  an ISCG05 mount for any chain management issues and a 44mm top and bottom headtube for all fork options, along with an updated and revised seat stay bridge offering more mud clearance than before.

BUILD SPEC DETAILS

FRAME GEOMETRY

P7 MX Frame
P7MX
Frame Size S M L XL
Seat Tube Length 15" 17" 18" 19"
A. Head Angle 64.5° 64.5° 64.5° 64.5°
B. Seat Angle (Effective) 75.5° 75.5° 75.5° 75.5°
D. Top Tube (effective) 610 632 652 677
BB height (from axles) -58 -58 -58 -58
F. Chainstay 430 430 430 430
G. Head Tube 110 120 130 140
J. Reach 440 460 480 500
O. Fork Offset 44 44 44 44
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag.
