Clockwork EVO COMP

F: 140MM | W: 27.5

  • Super Lightweight Frame Designed in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Custom butted 6061-T6 aluminium frame
  • Improved standover and EVO geometry
  • Geometry revised for reduced offset 140mm travel fork
  • Bolt through 12 x 148 rear hub spacing

The Clockwork EVO delivers the benchmark Orange Bikes ride with dependable performance.

Clockwork EVO COMP

F: 140MM | W: 27.5

  • Super Lightweight Frame Designed in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Custom butted 6061-T6 aluminium frame
  • Improved standover and EVO geometry
  • Geometry revised for reduced offset 140mm travel fork
  • Bolt through 12 x 148 rear hub spacing

The Clockwork EVO delivers the benchmark Orange Bikes ride with dependable performance.

F: 140MM | W: 27.5

  • Super Lightweight Frame Designed in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Custom butted 6061-T6 aluminium frame
  • Improved standover and EVO geometry
  • Geometry revised for reduced offset 140mm travel fork
  • Bolt through 12 x 148 rear hub spacing

The Clockwork EVO delivers the benchmark Orange Bikes ride with dependable performance.

SIZE | COLOUR

£1,800.00 GBP
{price}% OFF

INFORMATION

OVERVIEW

The Clockwork EVO is an EVO in every sense of the word, designed to be progressive and push boundries of whats acceptable of a "do it all" hardtail. A fast, responsive chasis paired with geometry that encourages speed on the trail whether it points up or down. In essence a ride with an enduro temprement with a trail bike physique.

For the new 2023 model, we have pushed the geometry a little further with a 64.5° head angle and 75.5° seatangle, setting the rider more into the middle of the bike, but retaining the 'pop' we like from an Orange trail hardtail. The chainstays now feature a one piece yoke to add strength and tyre/mud clearance, and we finish up with neat CNCed cable grommets for the internally run gear cables and  and brake hoses.

If you're looking for a fast, lean and wild riding trail hardtail this is the bike for you.

BUILD SPEC DETAILS

Frame and Fork
Frame 6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5
Fork Rockshox Recon RL, 140x27.5, Air, Tapered, 37mm OS
Swingarm
Type Bolt Type Allen Key Head (12 x 148mm Hub)
Headset FPD 44mm / 56mm zerostack
Drivetrain
Bottom Bracket Prowheel
Crankset Prowheel Charm 32t 170mm
Rear Mech Microshift Advent X 10spd
Chain KMC X10
Cassette Microshift G104 11-48t
Shifters Microshift Trail Pro
Wheel and Tyres
Wheelset Strange Hub & WTB ST i30
Tyres Maxxis High Roller II 27.5x2.4
Braking
Brakes Tektro HD-M725 180/160
Finishing Kit

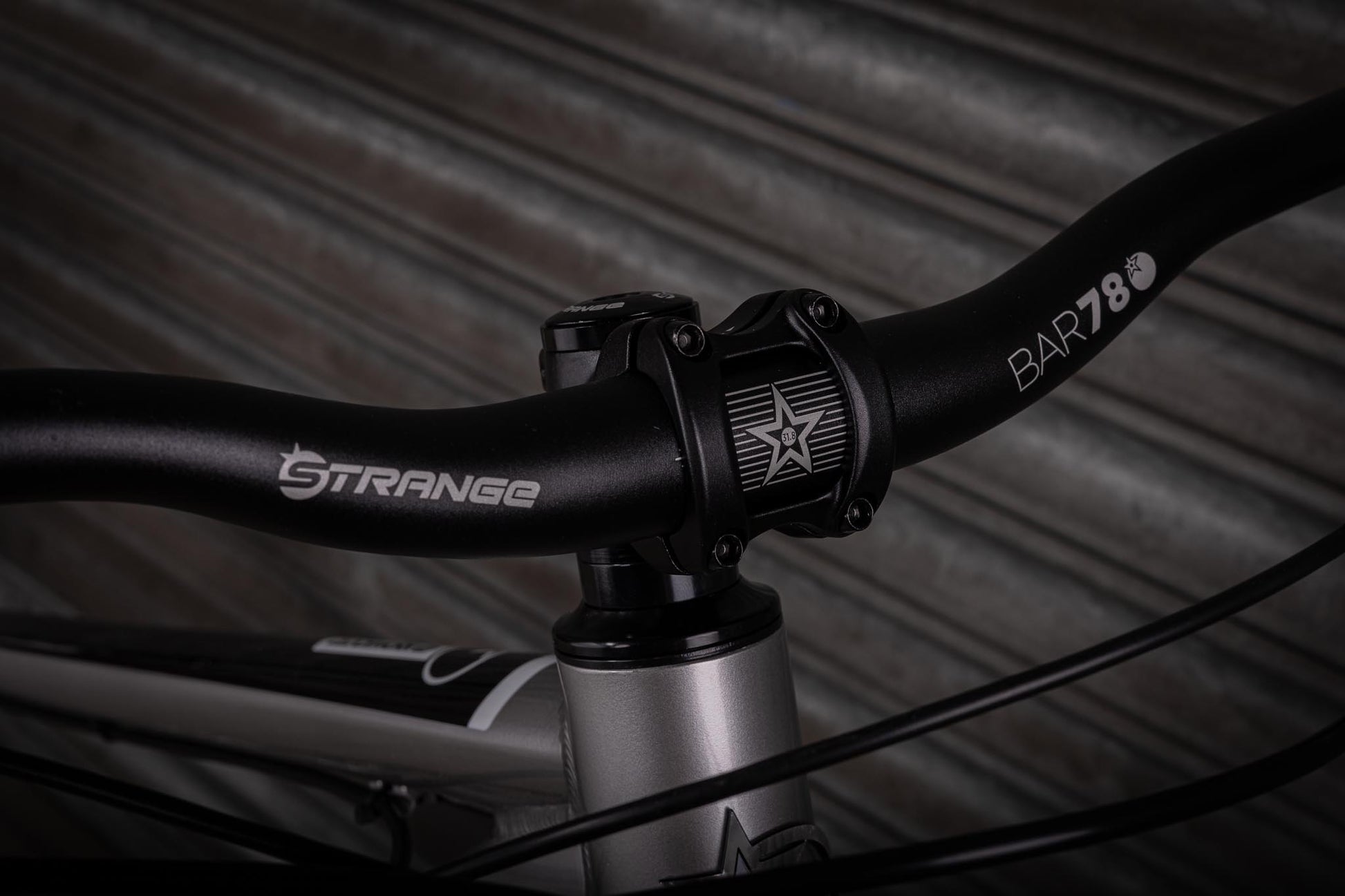

Handlebar Strange 1" Rise 780mm
Stem Strange Stalk 40mm
Seatpost KS Ragei 150/170mm
Seat Clamp Strange Bolted
Saddle SDG Bel Air III
Grips Strange Grappler

TECHNICAL DETAILS

technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
140 mm 140 mm 140 mm

Rear Hub 12 x 148 mm Boost
Seatpost Ø 30.9 mm
Seat Clamp Ø 34.9 mm
BB Shell 73mm ISCG05
1.1/8" Headset Upper: ZS44/28.6
Lower: ZS56/40

FRAME GEOMETRY

Clockwork EVO COMP
6061-T6 Custom Butted Aluminium
Frame Size S M L XL
Seat Tube Length 15" 17" 18" 19"
A. Head Angle 64.5° 64.5° 64.5° 64.5°
B. Seat Angle (Effective) 75.5° 75.5° 75.5° 75.5°
D. Top Tube (effective) 596 619 641 662
E. BB Height (from ground) 296 296 296 296
BB height (from axles) -58 -58 -58 -58
F. Chainstay 425 425 425 425
G. Head Tube 110 120 130 135
H. Wheel base 1167 1191 1215 1237
J. Reach 435 455 475 495
K. Stack 624 633 642 647
O. Fork Offset 37 37 37 37
Standover 658 676 694 730
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 710 mm Ø tyre.

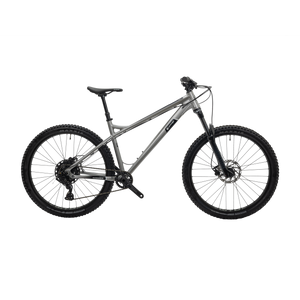

Clockwork EVO COMP - Orange Bikes

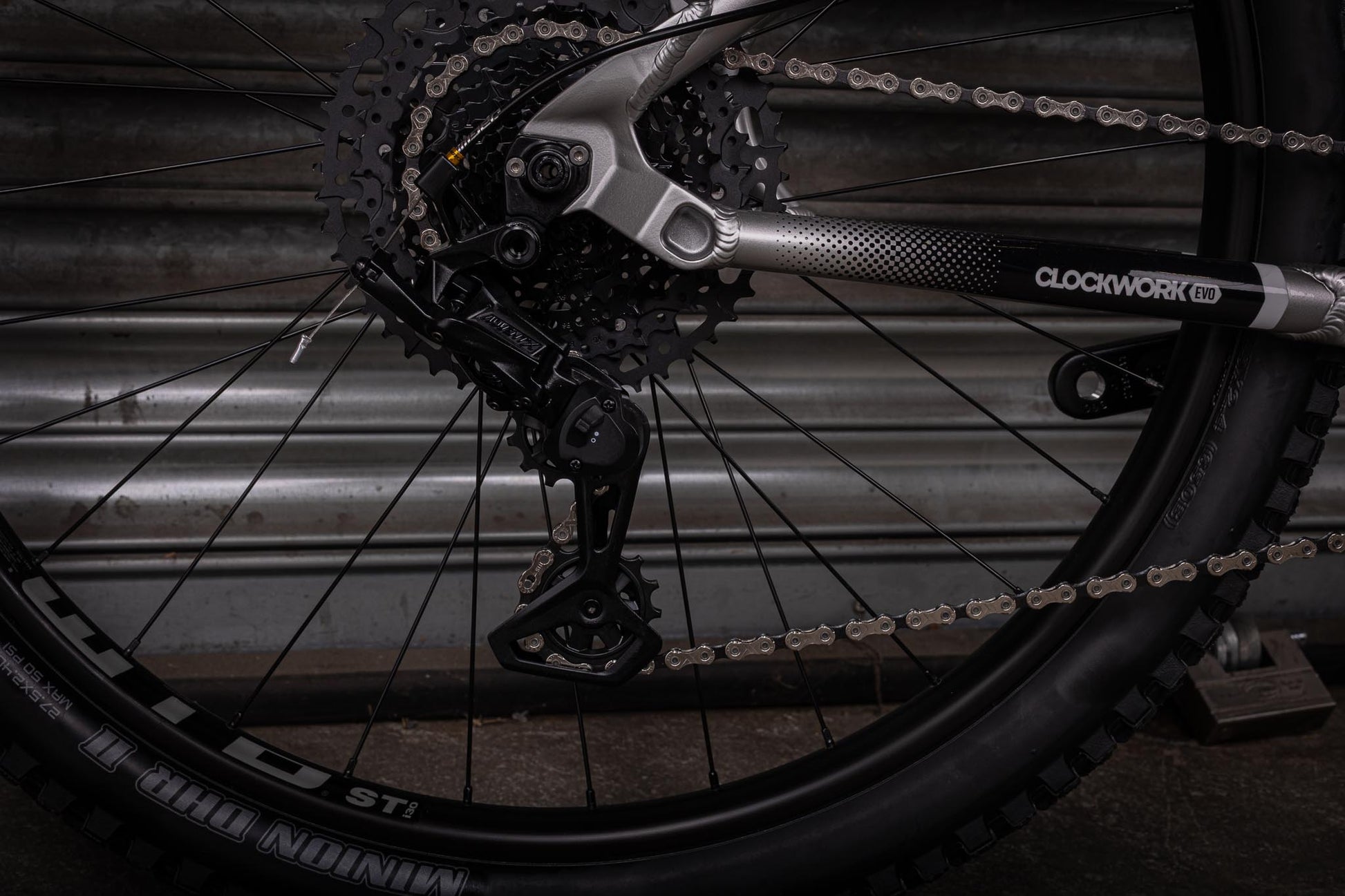

Clockwork EVO COMP - Orange Bikes

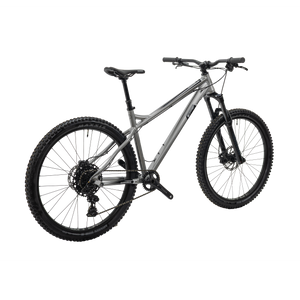

Clockwork EVO COMP - Orange Bikes

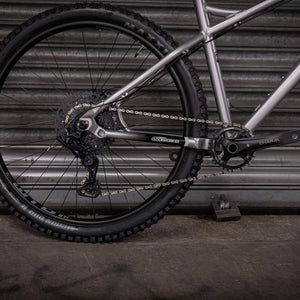

Clockwork EVO COMP - Orange Bikes

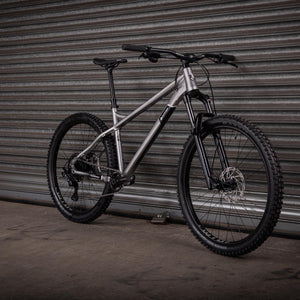

Clockwork EVO COMP - Orange Bikes

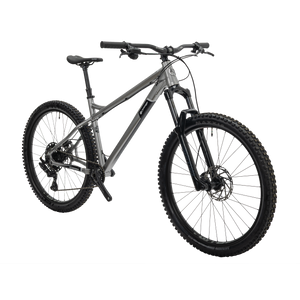

Clockwork EVO COMP - Orange Bikes

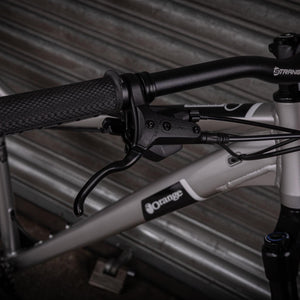

Clockwork EVO COMP - Orange Bikes

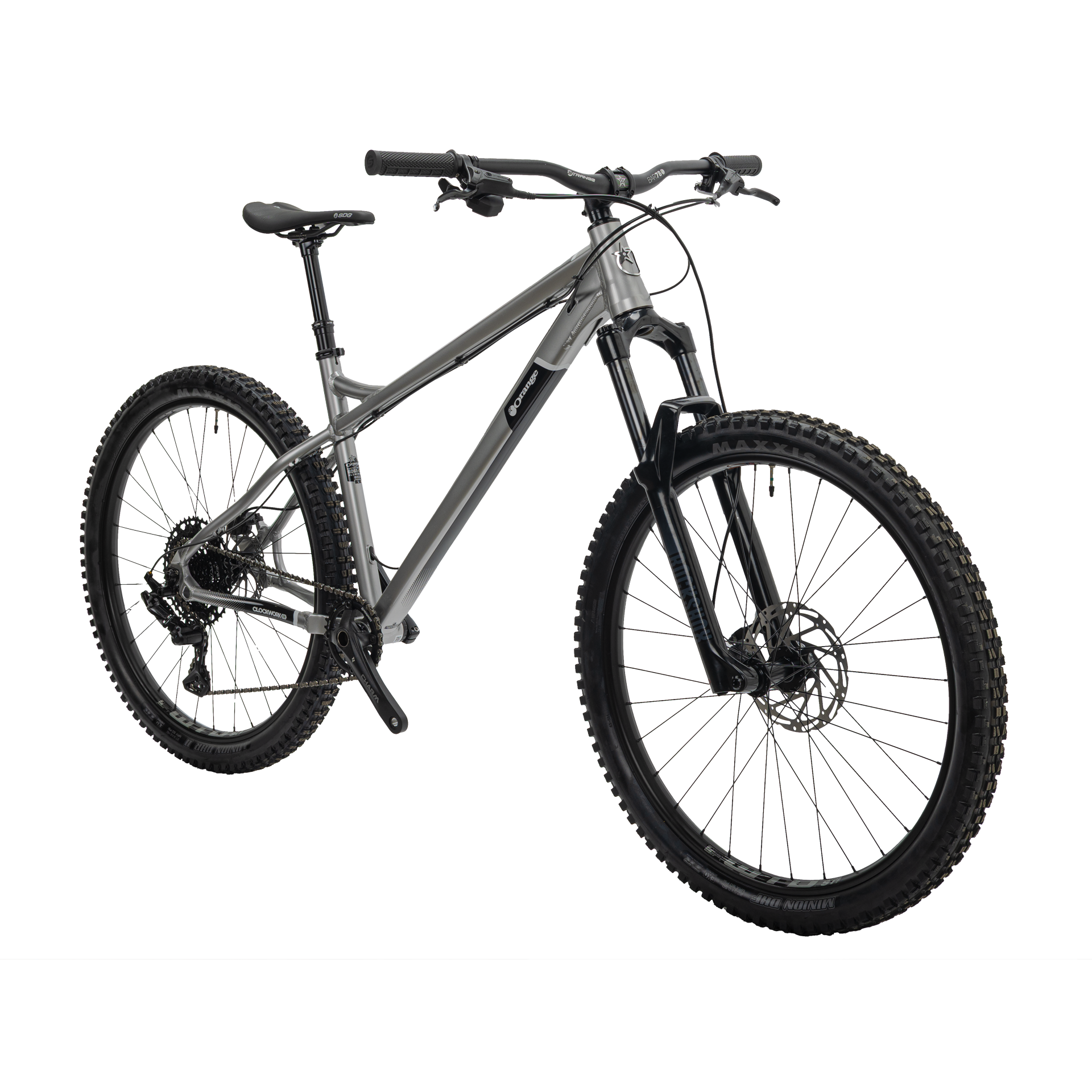

Clockwork EVO COMP - Orange Bikes

FRAME SIZING

Getting the right size bike is perhaps the most important decision once you have decided which model suits you best.

Traditionally bikes have been sized on the height of the seat-tube, but more recently, things have moved on.
