Clockwork EVO 29 COMP

F: 140MM | W: 29

  • Super Lightweight Frame Designed in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Custom butted 6061-T6 aluminium frame
  • Improved standover and EVO geometry
  • Geometry revised for 140mm travel fork
  • Bolt through 12 x 148 boost hub spacing

Clockwork EVO 29 COMP

F: 140MM | W: 29

  • Super Lightweight Frame Designed in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Custom butted 6061-T6 aluminium frame
  • Improved standover and EVO geometry
  • Geometry revised for 140mm travel fork
  • Bolt through 12 x 148 boost hub spacing
Frame Colour
Size
£1,260.00 GBP
£1,800.00 GBP
{price}% OFF SOLD OUT
  • Google Pay
  • Apple Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Clearpay

Guarantee safe & secure checkout with payment plan options.

OVERVIEW | SPEC | TECH | GEOMETRY

OVERVIEW

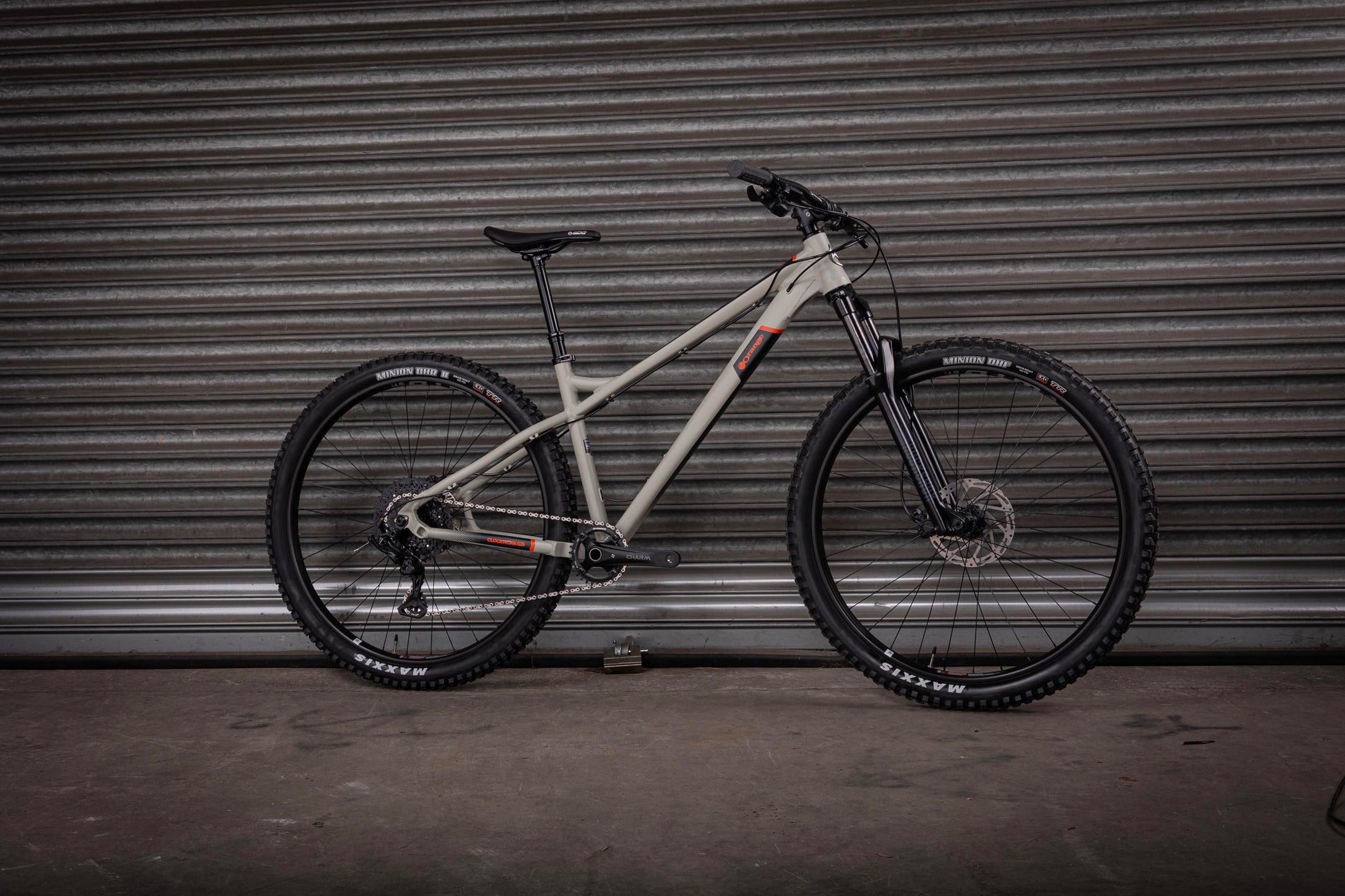

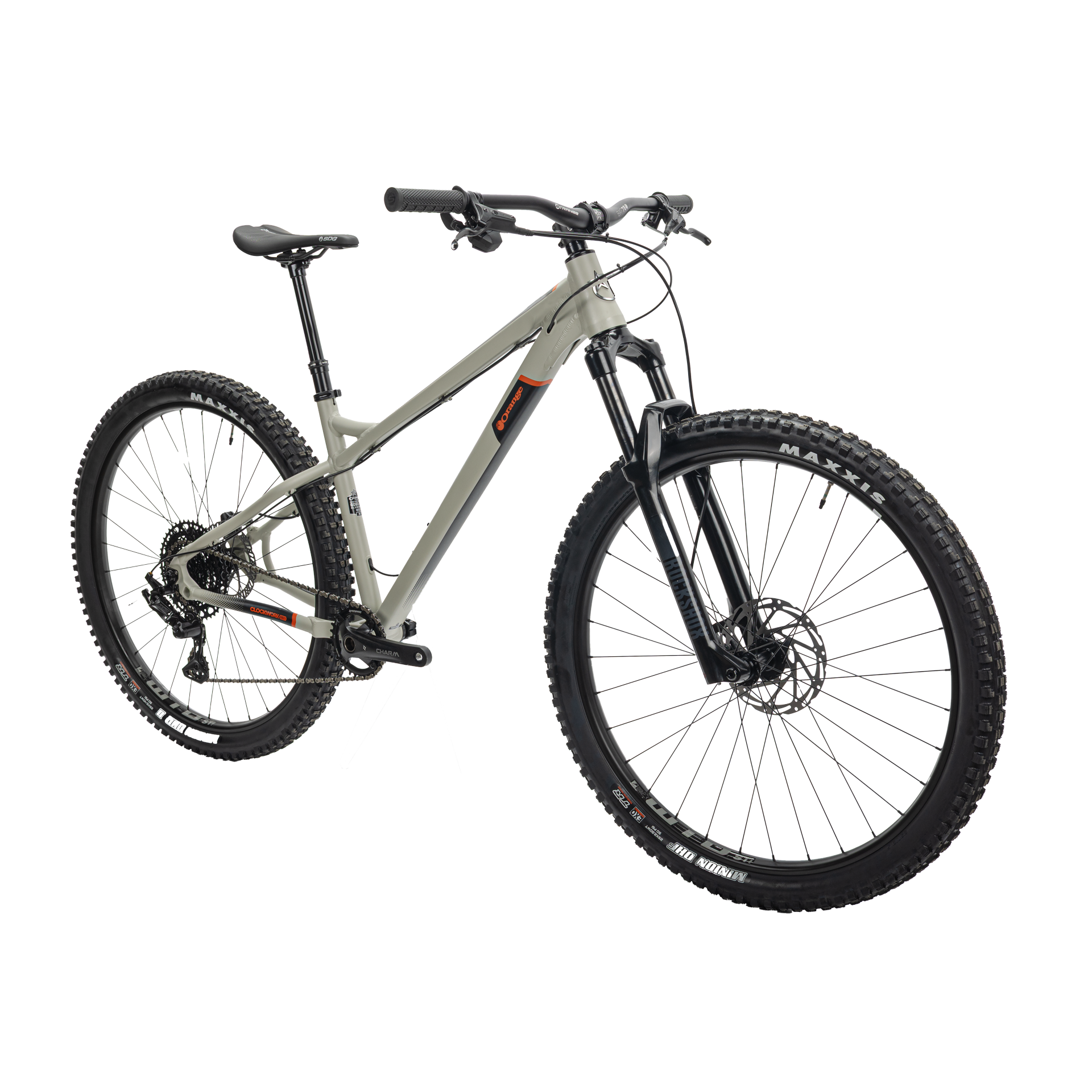

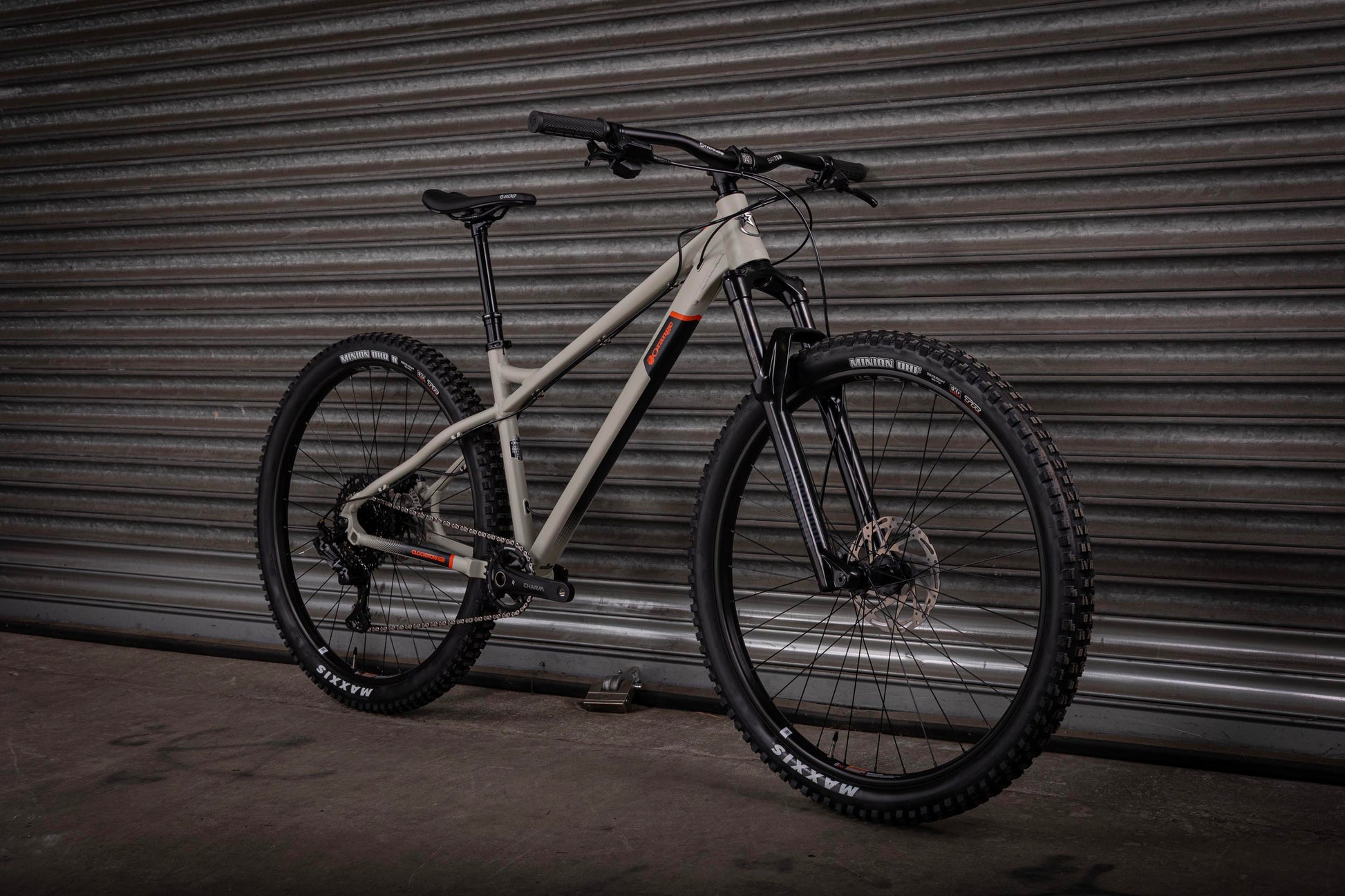

The new Clockwork EVO 29 pushes the 29er model into the hard & fast trail arena. Running a 130mm travel fork, this one's for the fast and loose big wheel hardtail fans out there.

The EVO 29 shares the same tidy frame features as its 27.5 inch wheel sibling:

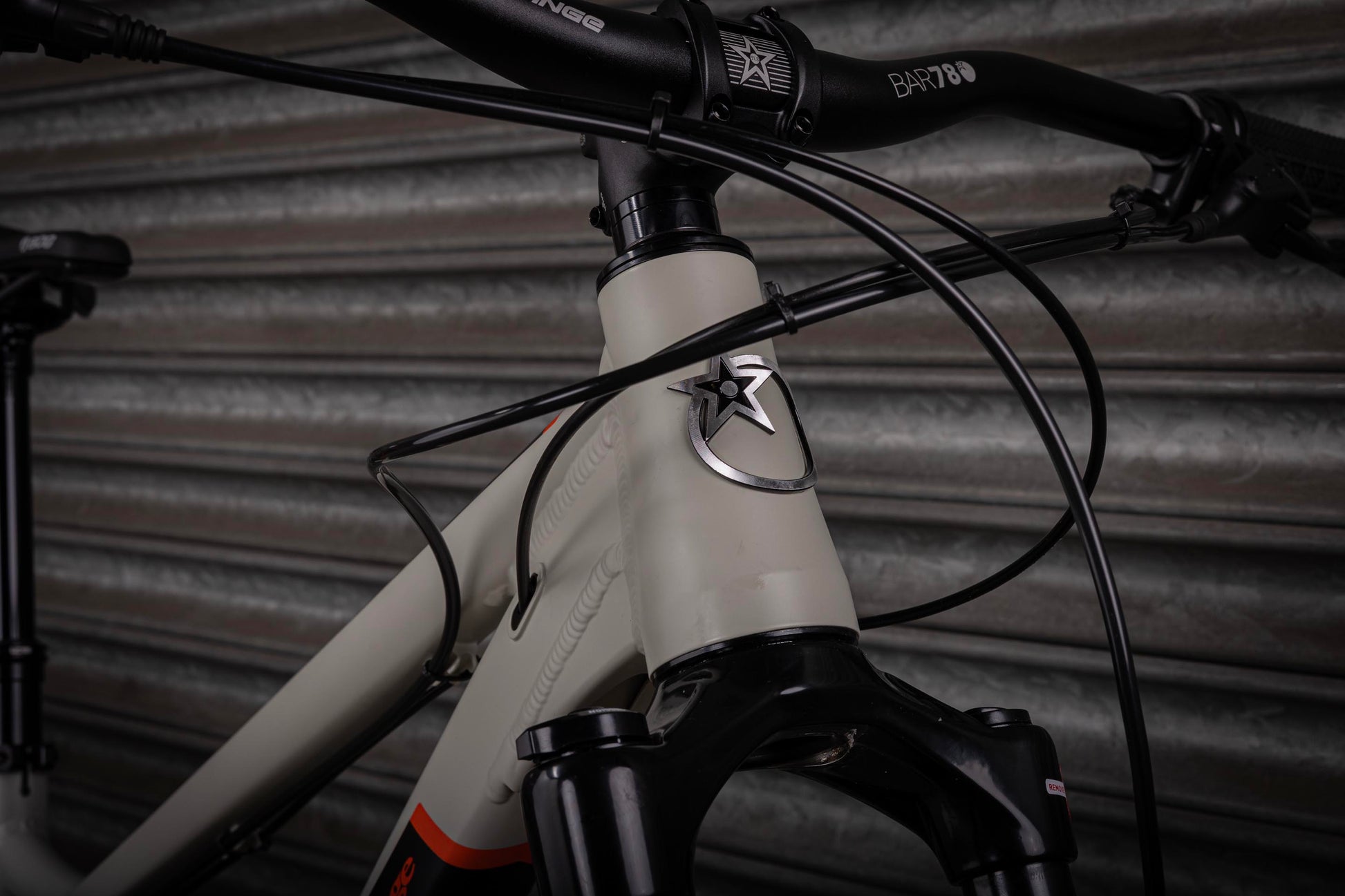

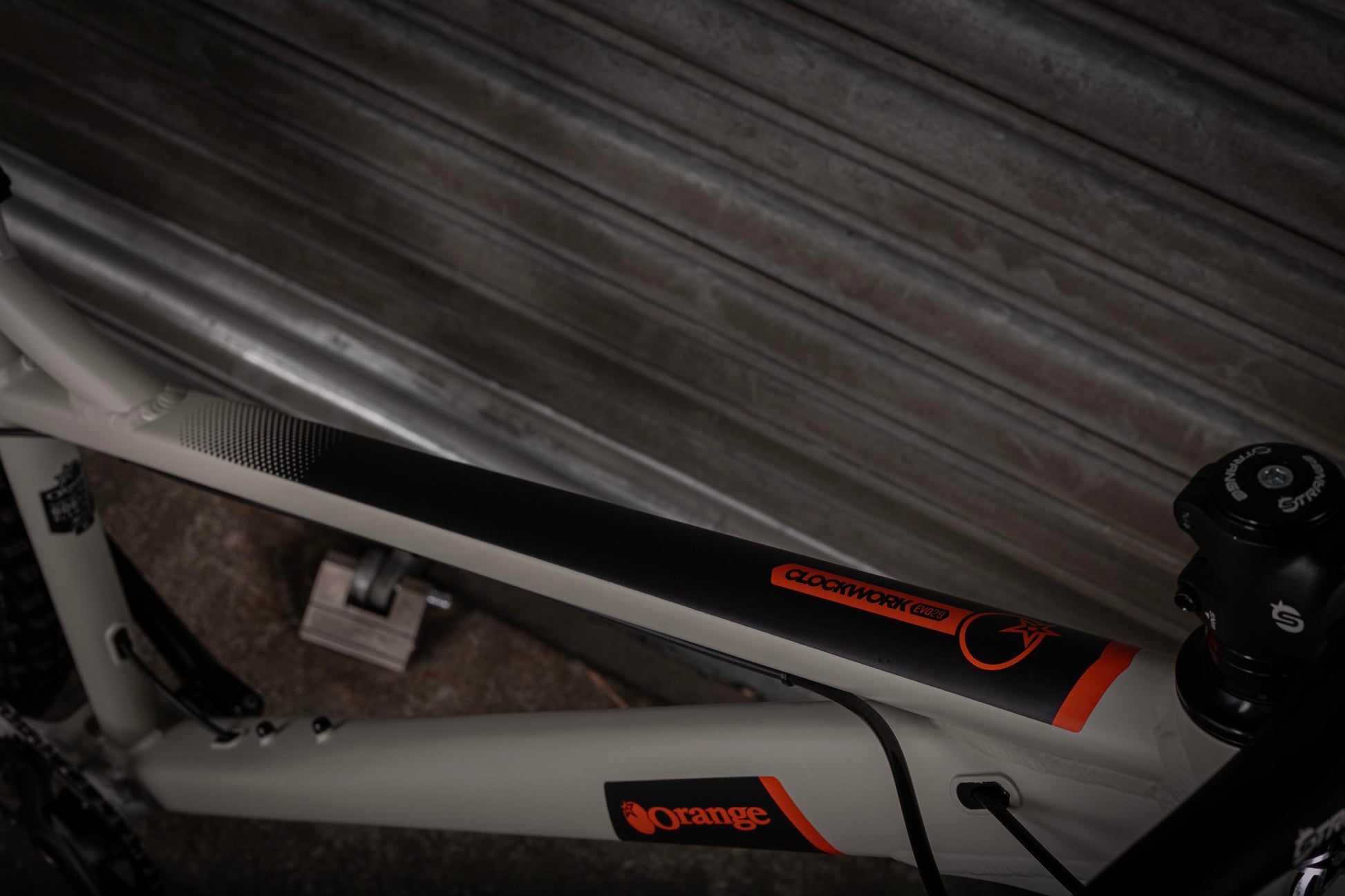

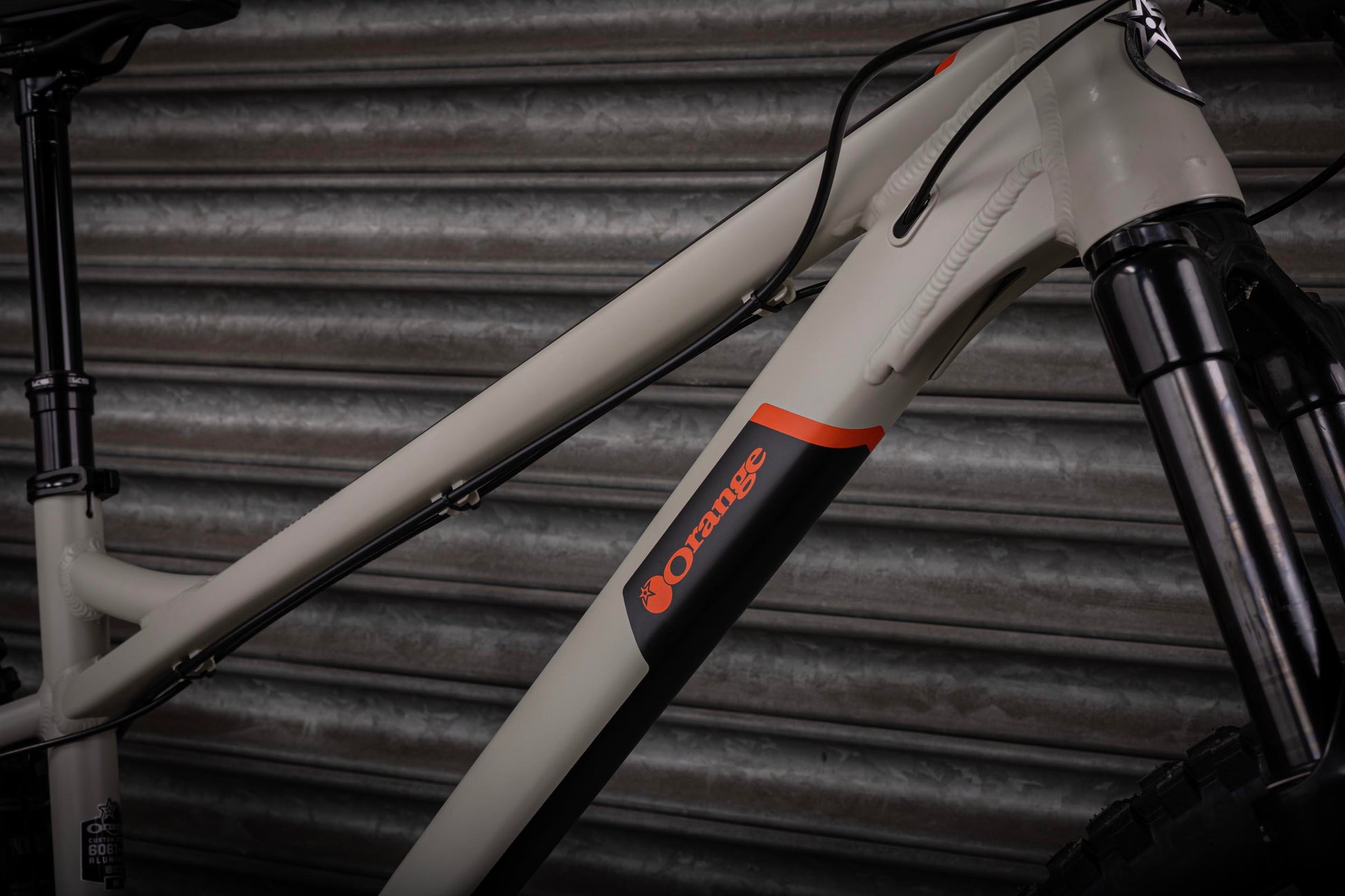

neat external routing that tucks the cables cleanly under the top tube and internal stealth cable routing for a dropper post are both nice touches. The sturdy 12x148mm Boost bolt-though rear axle adds strength and rigidity for the 29er wheelset.

Trail centre hardtail, or out and out explorer, it’s up to you. But however you choose to ride the Clockwork EVO 29, it will be a more than worthy trail buddy.

BUILD SPEC DETAILS

Frame and Fork
Frame 6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29

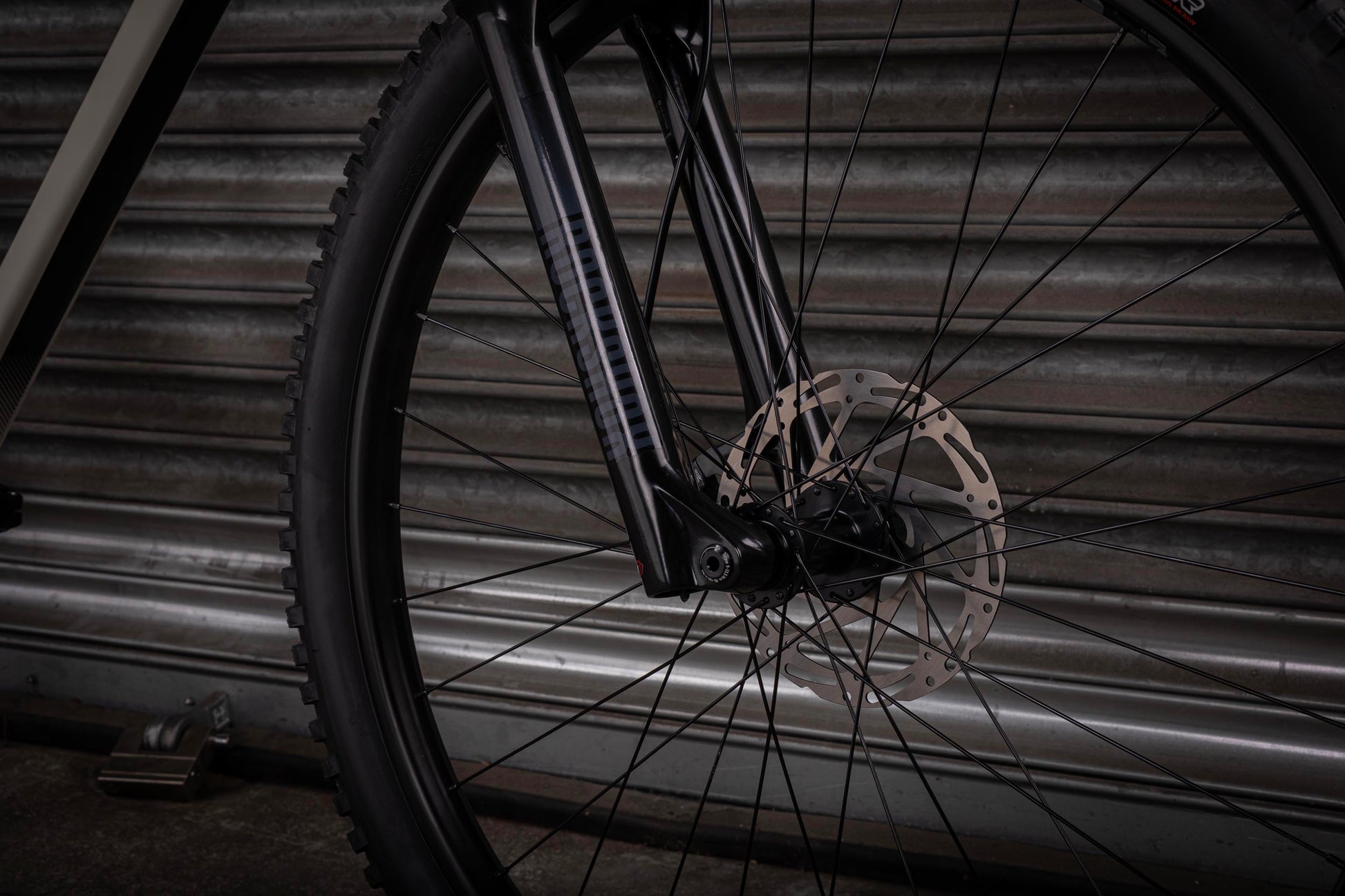

Fork Rockshox Recon RL, 130x29, Air, Tapered, 42mm OS
Swingarm
Type Bolt Type Allen Key Head (12 x 148mm Hub)
Headset FPD 44mm / 56mm zerostack

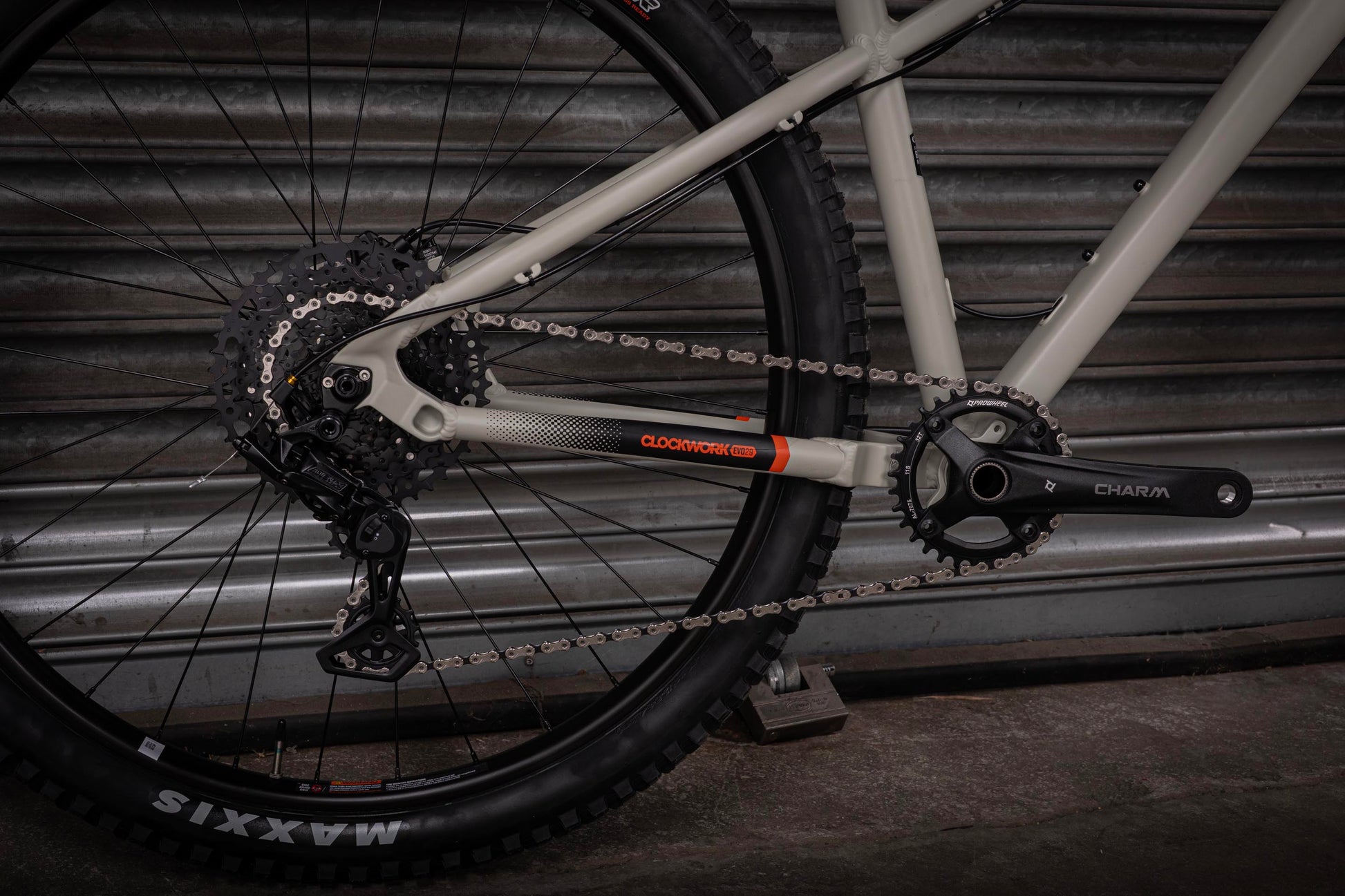

Drivetrain
Bottom Bracket Prowheel
Crankset Prowheel Charm 32t 170mm

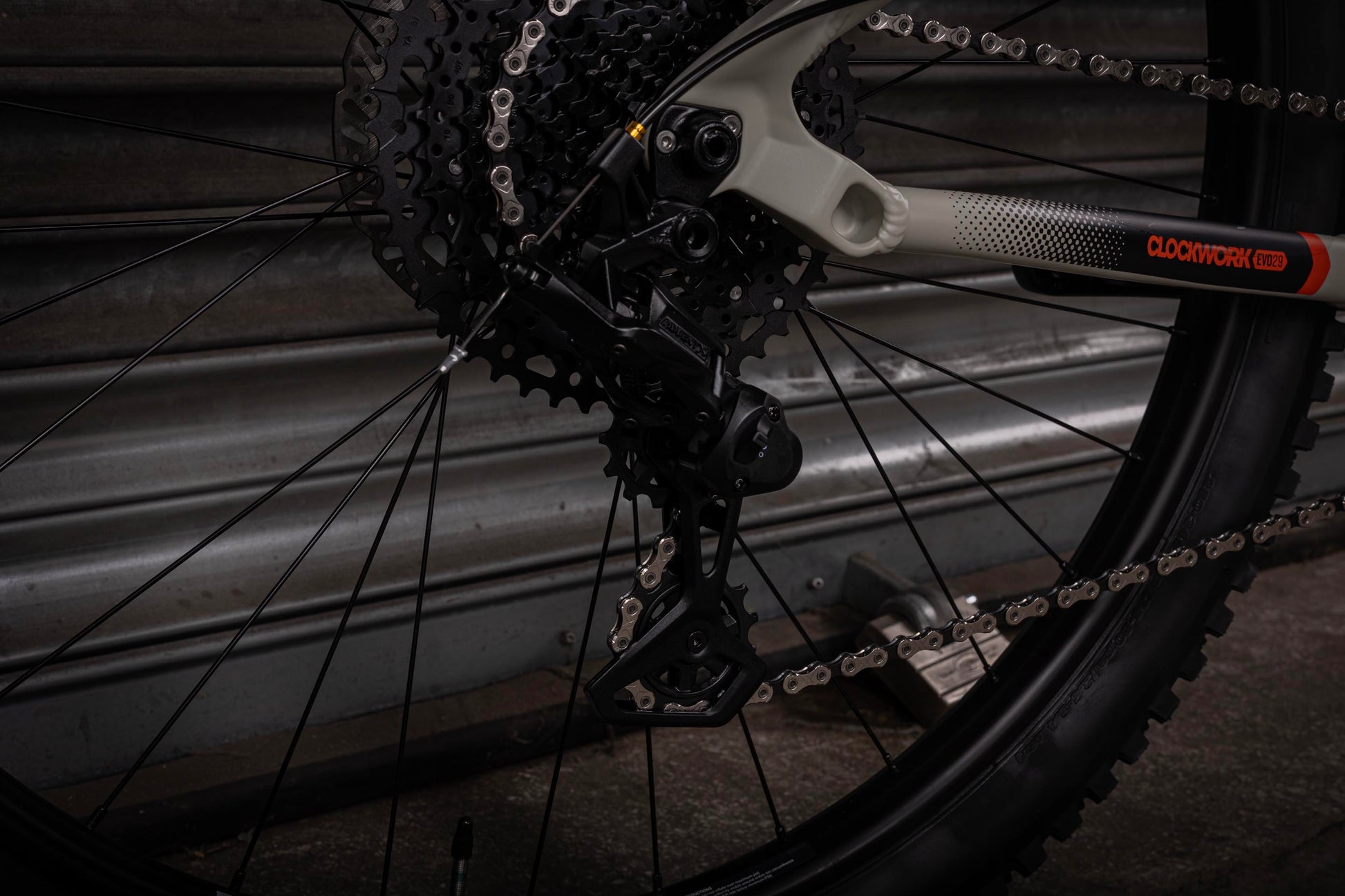

Rear Mech Microshift Advent X 10spd
Chain KMC X10
Cassette Microshift G104 11-48t
Shifters Microshift Trail Pro
Wheel and Tyres
Wheelset Strange Hub & WTB ST i30
Tyres Maxxis Minion DHF 29x2.5 & DHR II 29x2.4
Braking
Brakes Tektro HD-M725 180/160
Finishing Kit

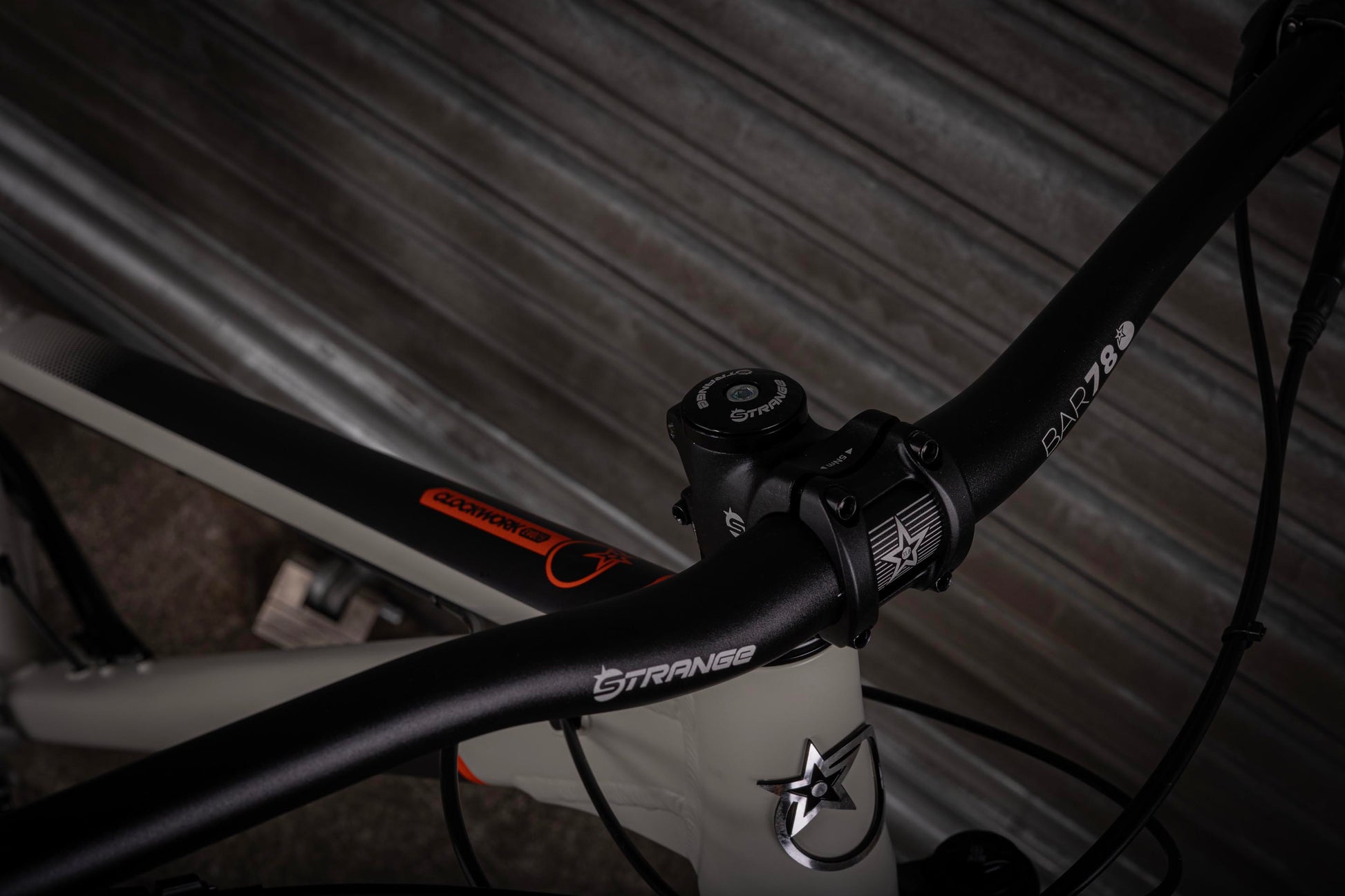

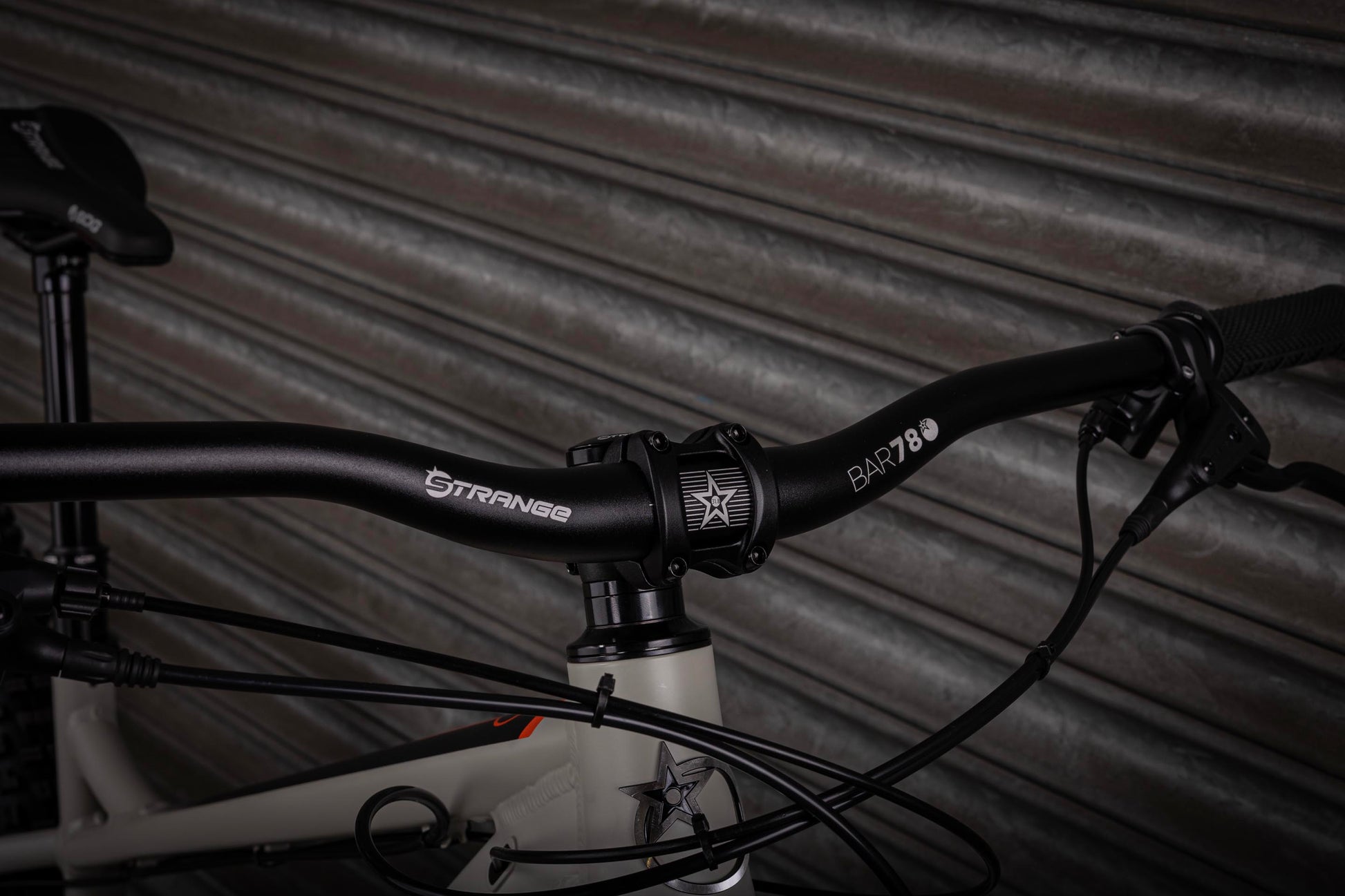

Handlebar Strange 1" Rise 780mm
Stem Strange Stalk 40mm

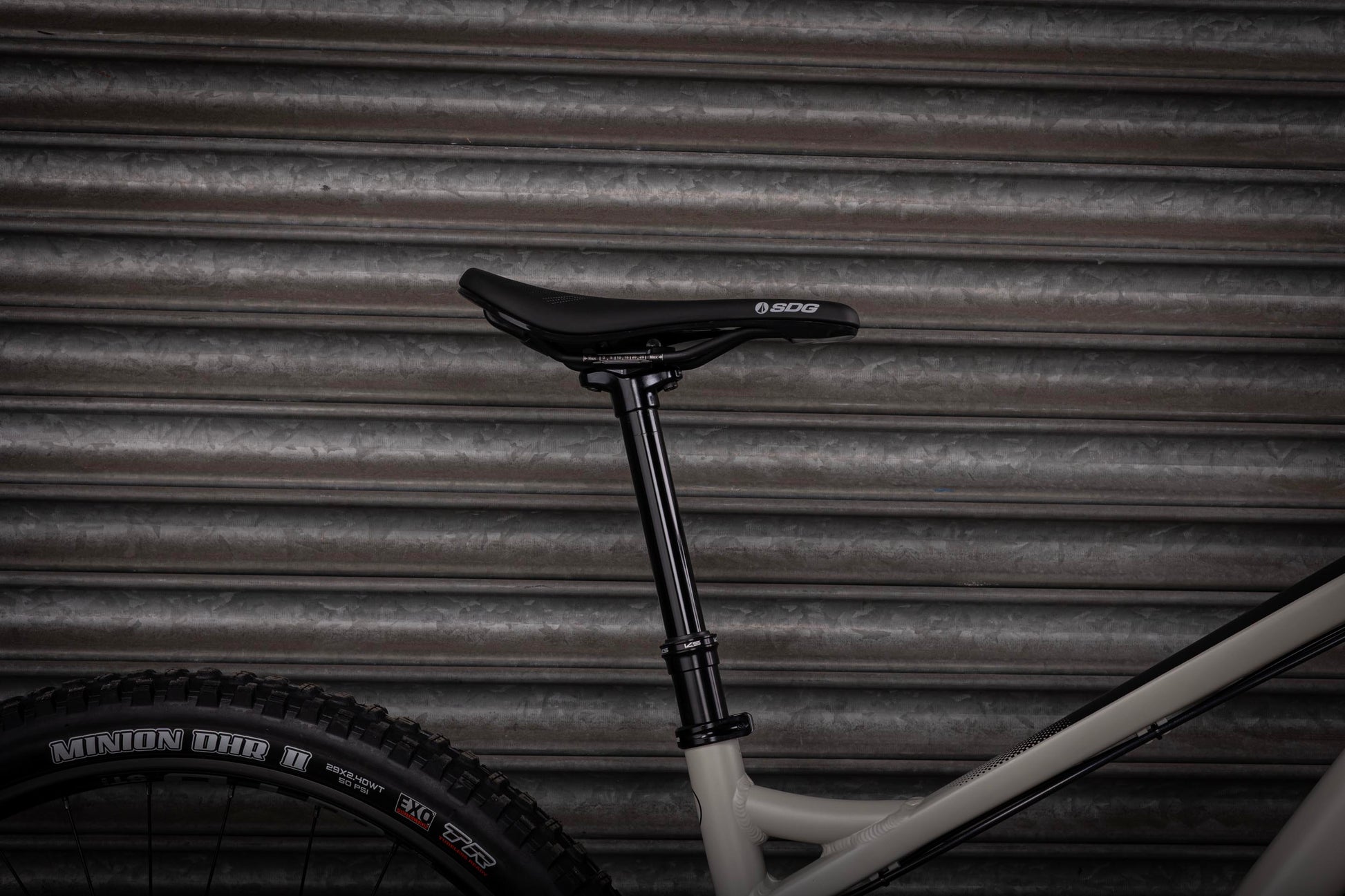

Seatpost KS Ragei 150/170mm
Seat Clamp Strange Bolted
Saddle SDG Bel Air III
Grips Strange Grappler

TECHNICAL DETAILS

technical Info
Fork Travel {"optimum"=>"130 mm", "maximum"=>"130 mm", "minimum"=>"130 mm"}
Rear Hub 12 x 148 mm Boost
Seatpost Ø 30.9 mm
Seat Clamp Ø 34.9 mm
BB Shell 73mm ISCG05
Headset Upper: ZS44/28.6
Lower: ZS56/40

FRAME GEOMETRY

Clockwork EVO 29 COMP
6061-T6 Custom Butted Aluminium
Frame Size M L XL
Seat Tube Length 17" 18" 19"
A. Head Angle 65.5° 65.5° 65.5°
B. Seat Angle (Effective) 75.5° 75.5° 75.5°
D. Top Tube (effective) 624 642 667
E. BB Height (from ground) 296 296 296
BB height (from axles) -68 -68 -68
F. Chainstay 450 450 450
G. Head Tube 120 130 135
H. Wheel base 1215 1239 1261
J. Reach 455 475 495
K. Stack 654 663 668
O. Fork Offset 44 44 44
Standover 676 694 730
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is measured with the specified wheel/tyre combination.

FRAME SIZING

Getting the right size bike is perhaps the most important decision once you have decided which model suits you best.

Traditionally bikes have been sized on the height of the seat-tube, but more recently, things have moved on.
