Clockwork 27.5

F: 130MM | R: N/a | W: 27.2/27.5



  • Frame designed in Britain
  • 5 year frame warranty
  • Custom butted 6061-T6 aluminium
  • 27.5 inch wheels
  • Geometry tailored to a 130mm travel fork
  • Bolt through 12 x 148 hub spacing
  • Internal dropper seatpost compatible
  • Generous tyre clearance
  • Designed for covering miles with ease
  • Confidence inspiring with a zest of sharp handling
  • RockShox Judy Silver TK 130mm 27.5 Boost Fork
  • Shimano Deore 11spd Shadow Plus drivetrain
  • Tektro Hydraulic Disc Brakes
  • Strange Cockpit components

Clockwork 27.5

F: 130MM | R: N/a | W: 27.2/27.5



  • Frame designed in Britain
  • 5 year frame warranty
  • Custom butted 6061-T6 aluminium
  • 27.5 inch wheels
  • Geometry tailored to a 130mm travel fork
  • Bolt through 12 x 148 hub spacing
  • Internal dropper seatpost compatible
  • Generous tyre clearance
  • Designed for covering miles with ease
  • Confidence inspiring with a zest of sharp handling
  • RockShox Judy Silver TK 130mm 27.5 Boost Fork
  • Shimano Deore 11spd Shadow Plus drivetrain
  • Tektro Hydraulic Disc Brakes
  • Strange Cockpit components

F: 130MM | R: N/a | W: 27.2/27.5



  • Frame designed in Britain
  • 5 year frame warranty
  • Custom butted 6061-T6 aluminium
  • 27.5 inch wheels
  • Geometry tailored to a 130mm travel fork
  • Bolt through 12 x 148 hub spacing
  • Internal dropper seatpost compatible
  • Generous tyre clearance
  • Designed for covering miles with ease
  • Confidence inspiring with a zest of sharp handling
  • RockShox Judy Silver TK 130mm 27.5 Boost Fork
  • Shimano Deore 11spd Shadow Plus drivetrain
  • Tektro Hydraulic Disc Brakes
  • Strange Cockpit components

SIZE | COLOUR

£1,500.00 GBP
{price}% OFF

INFORMATION

OVERVIEW

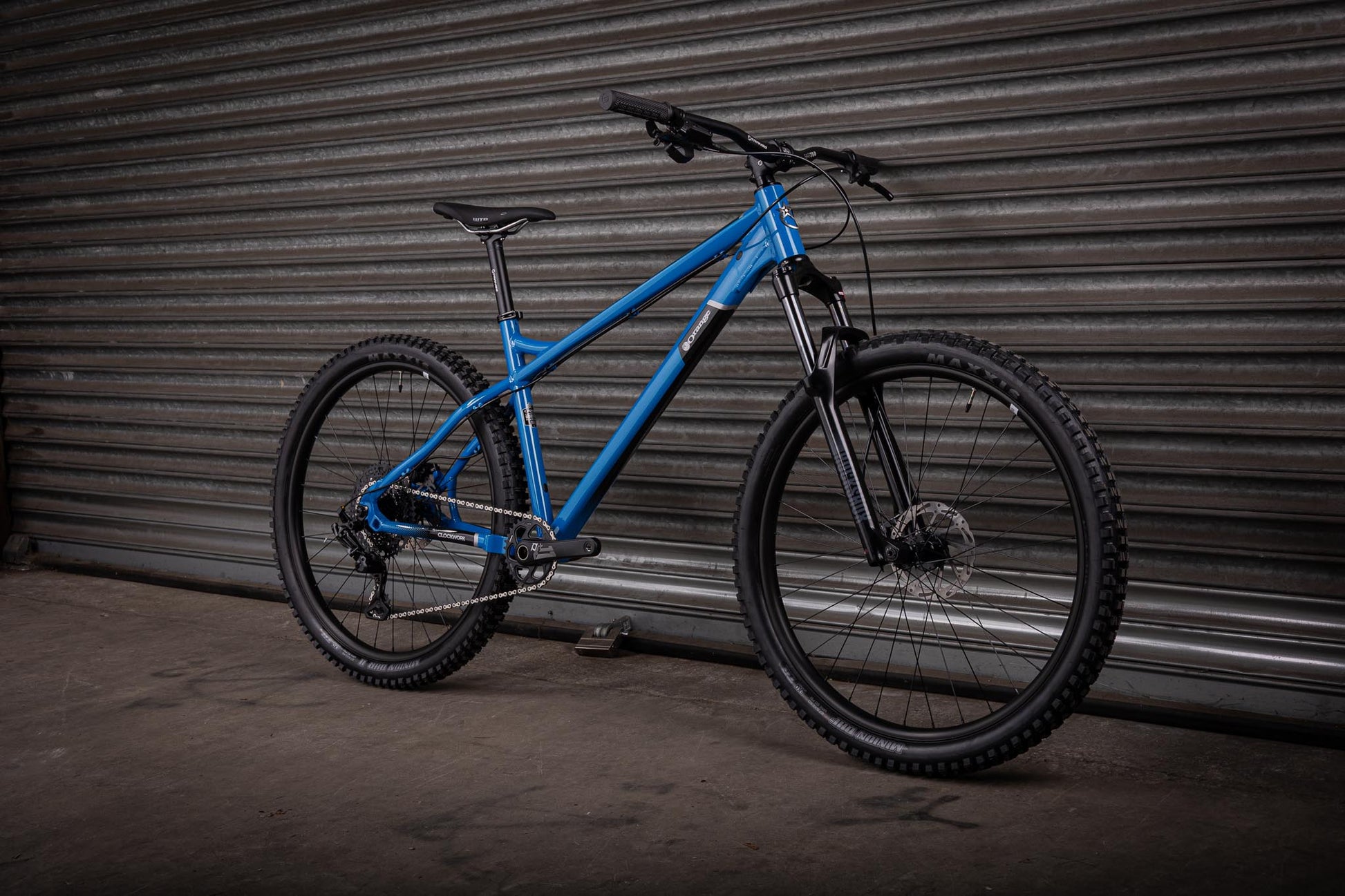

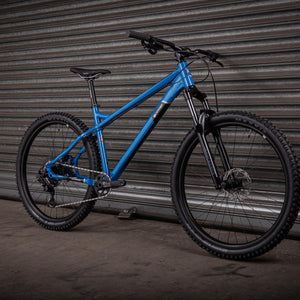

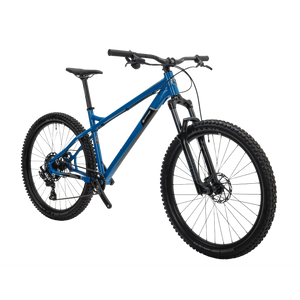

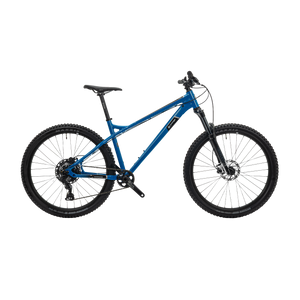

The Orange Clockwork has been a staple of the performance Orange Bikes line-up for as long as we can remember. This year's Clockwork frame has more reach, and a slack 66° head-angle and a low centre of gravity that takes the ride to the next level. And thats what we show up for right? — the ride.

With its RockShox Judy Silver TK 130mm travel fork and rock solid Shimano Deore drive train, it's plain to see the 2021 is no imposter. The Clockwork is anything but; it's a great performer, great spec, great all-rounder and the perfect launch pad for anyone young or old. It covers all the bases, will fly around trail centres, load up for a bivvy bag expedition and even get you started in racing.

BUILD SPEC DETAILS

Frame and Fork
Frame 6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5
Fork Rockshox Judy SilverL, 130x27.5, Air, Tapered, 42mm OS
Swingarm
Type Bolt Type Allen Key Head (12 x 148mm Hub)

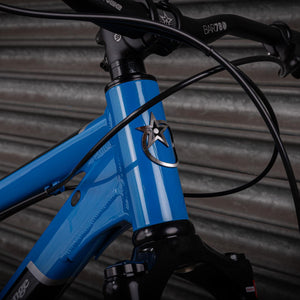

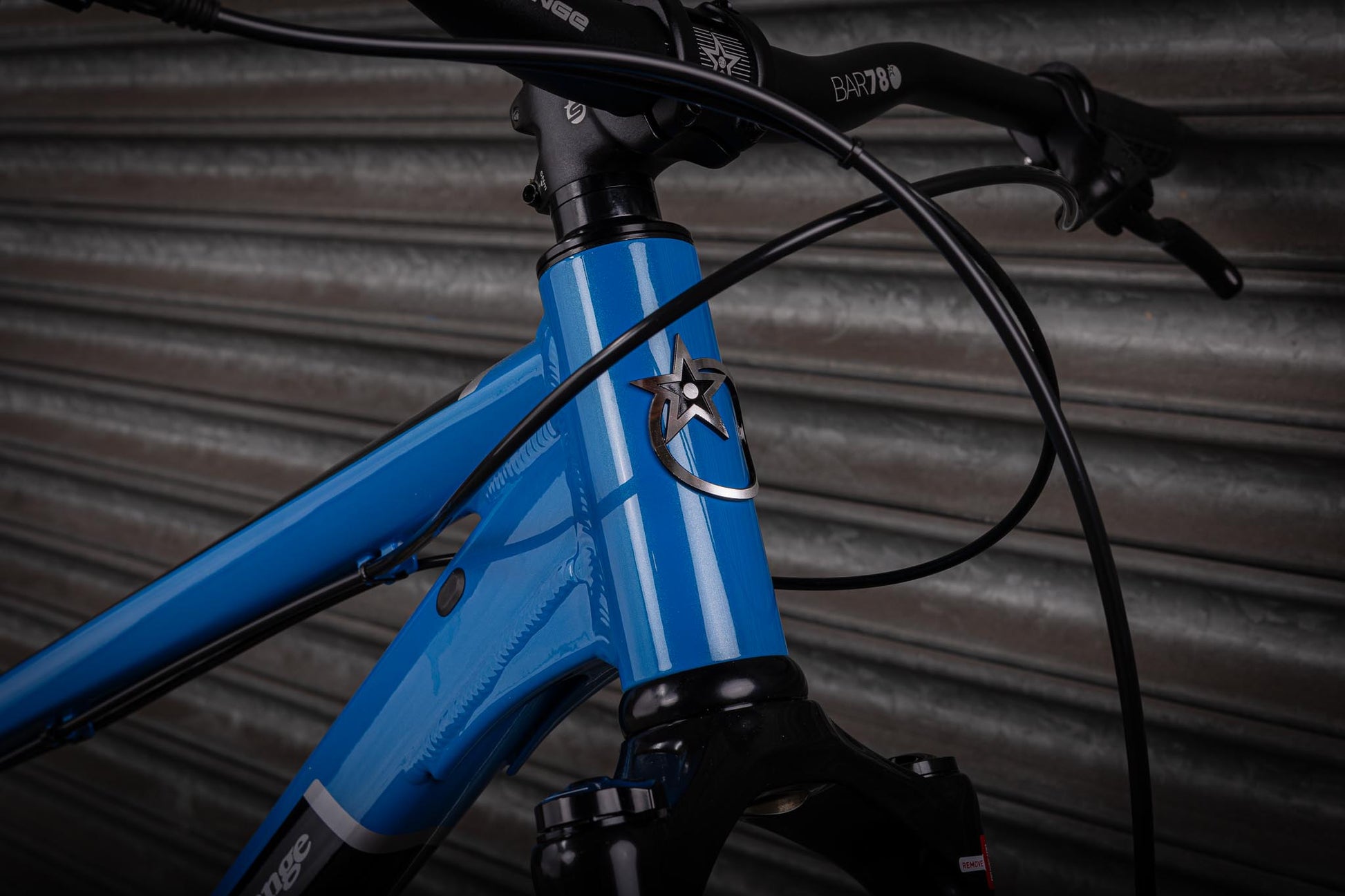

Headset FPD 44mm for tapered steerer
Drivetrain
Bottom Bracket Prowheel
Crankset Prowheel MPX 32t 170mm

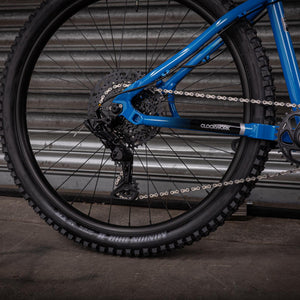

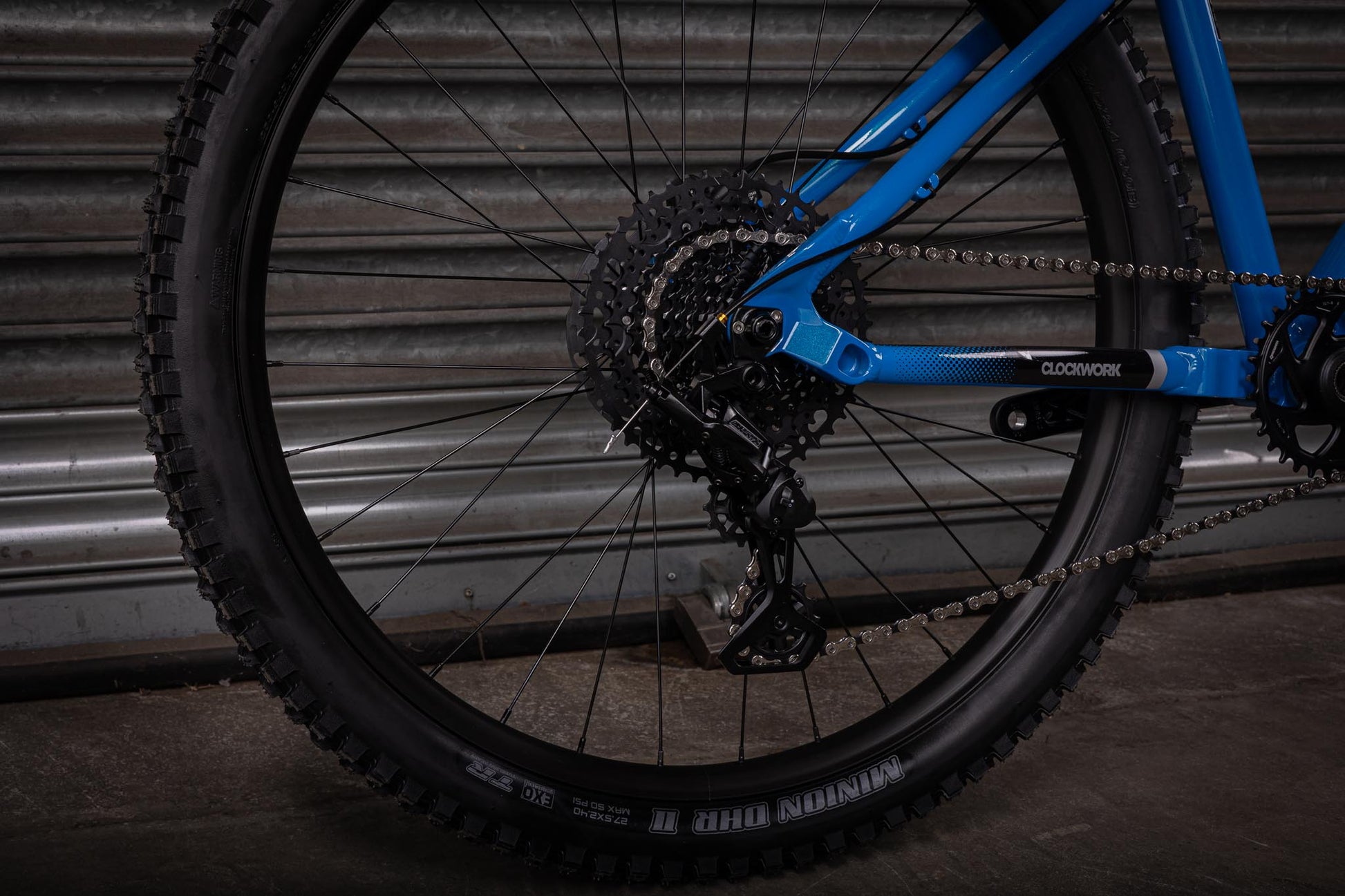

Rear Mech Microshift Advent X 10spd
Chain KMC X10
Cassette Microshift G104 11-48t
Shifters Microshift Trail Pro
Wheel and Tyres
Wheelset Strange Hub & 28mm Alloy
Tyres Maxxis High Roller II 27.5x2.4
Braking
Brakes Tektro HD-M285 160/160
Finishing Kit
Handlebar Strange 1" Rise 780mm
Stem Strange Stalk 40mm
Seatpost Strange Alloy 400mm
Seat Clamp Strange Bolted
Saddle SDG Bel Air
Grips Strange Grappler

TECHNICAL DETAILS

technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
130 mm 130 mm 130 mm

Rear Hub 12 x 148 mm Boost
Seatpost Ø 30.9 mm
Seat Clamp Ø 34.9 mm
BB Shell 73 mm
1.1/8" Headset Upper: ZS44/28.6
Lower: EC44/40

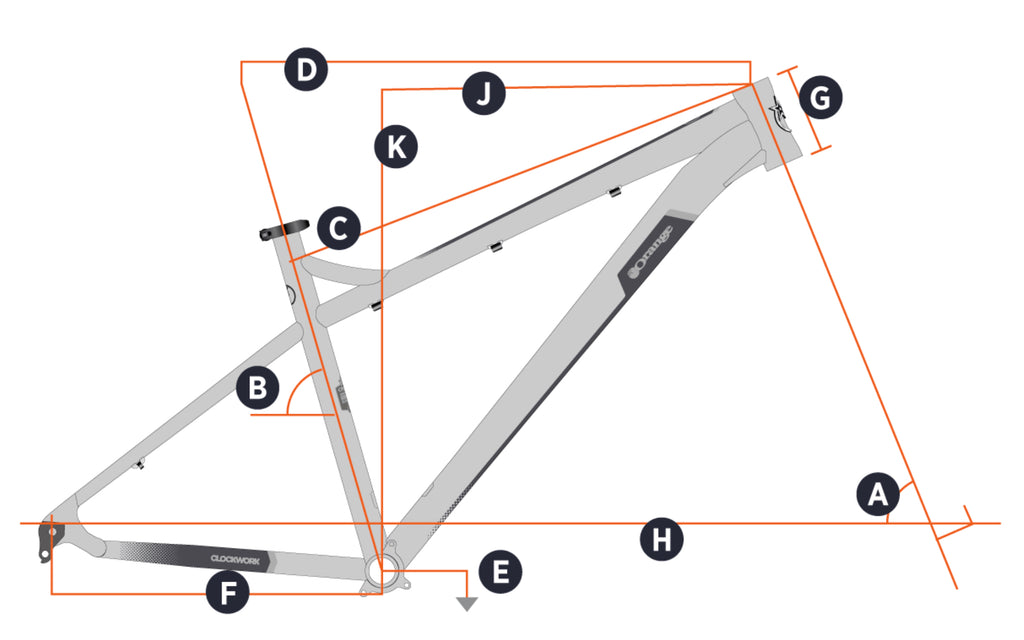

FRAME GEOMETRY

Clockwork 27.5
6061-T6 Custom Butted Aluminium
Frame Size S M L XL
Seat Tube Length 14" 17" 18" 19"
A. Head Angle 66° 66° 66° 66°
B. Seat Angle (Effective) 74° 74° 74° 74°
D. Top Tube (effective) 598 631 654 676
E. BB Height (from ground) 302 302 302 302
BB height (from axles) -52 -52 -52 -52
F. Chainstay 427 427 427 427
G. Head Tube 110 120 130 140
H. Wheel base 1144 1178 1202 1226
J. Reach 420 450 470 490
K. Stack 623 632 641 650
Standover 658 676 694 730
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is measured with a 716 mm Ø tyre.
