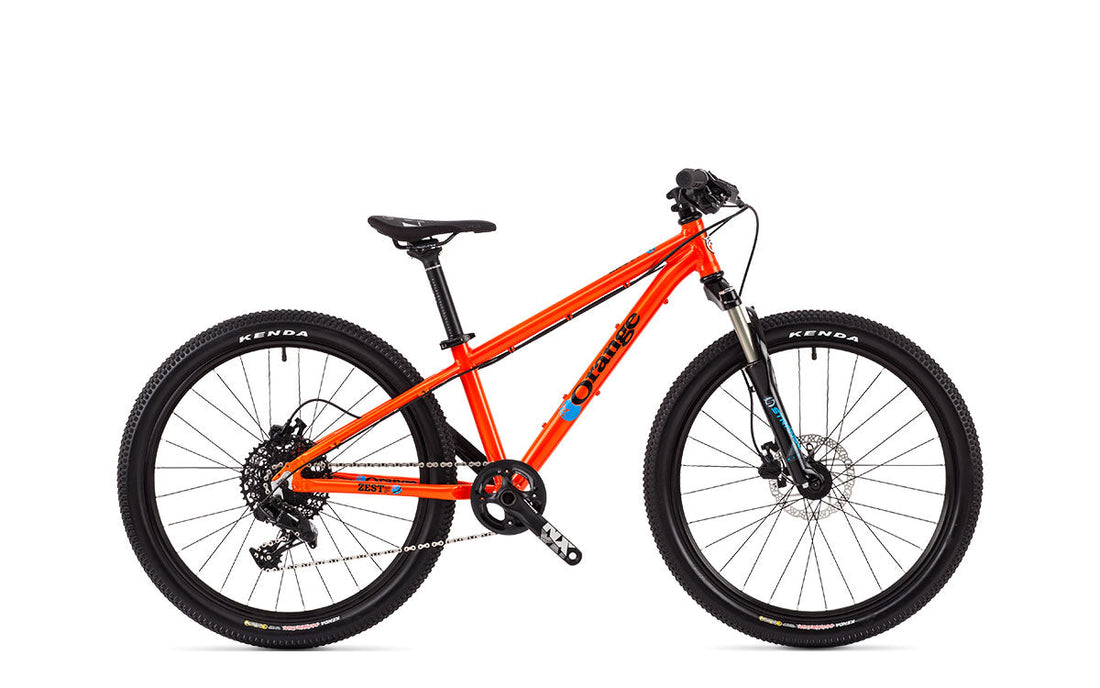

Zest 24 - 2023
Why the Zest 24?
- Designed in Britain
- 5 year frame warranty
- Lightweight aluminium frame
- Strange edition Spinner Grind air suspension fork
- SRAM 11spd drivetrain
- 155mm SRAM NX cranks
- Hydraulic disc brakes with levers specifically design for small hands
- Strange finishing kit
- 600mm handlebar
- SDG Junior Saddle
- Kenda 2.1" tyres for on and off-road use
- QR seat clamp for ease of adjustment
- Dropper post compatible
- Weight: 10.9kg/24lb
Looking for a bike with smaller wheels? Try the Zest 20 S. Need something larger? You’ll want the 26 inch wheeled Zest.
The Zest 24 is a proper no-compromise mountain bike designed around junior riders’ needs. Whether they are heading for the hills, taming red routes or just mucking about in the woods it’s ready for adventures, big and small.
A bike designed to tackle whatever is thrown at it has to be tough and easy to handle, so we scaled down our trademark confidence-inspiring geometry whilst keeping the fun full sized. The Zest 24’s aluminium frame offers the same blend of high strength and low weight you’ll find on our larger bikes along with the same common sense features.
A frame as capable as this deserves high-performance components. 65mm travel GRIND suspension forks help to keep the flow through the rough stuff while hydraulic disc brakes give greater control and stopping power to smaller fingers. SRAM’s NX 11 speed drivetrain offers slick and reliable performance with a wide spread of gears to help with scaling climbs and scolding descents.
Specs & OptionSIZES AND COLOURS
Frame and Fork
6061 Aluminium. Wheel Size: 24.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
| 6061-T6 Custom Butted Aluminium | |
| Frame Size | One Size |
| Seat Tube | 12" |
| A. Head Angle | 69° |
| B. Seat Angle | 71.3° |
| C. Top Tube | 481 |
| D. Effective TT | 495 |
| E. BB Height (axle diff) | -25 |
| F. Chainstay | 405 |
| G. Head Tube | 110 |
| H. Wheelbase | 956 |
| J. Reach | 322 |
| K. Stack | 508 |
| L. Crank Length | 155 |
| S. Max Seatpost Extension | 180 |
| Stem Length | 40 |
| Standover | 610 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 557 mm Ø tyre. | |
| Zest 24 Technical Info | |
| Fork Travel | 65 mm |
| Rear Hub | 135 mm |
| Front Hub | 100 mm |
| Seatpost Ø | 30.9 mm |
| Seatpost Length | 300 mm |
| Handlebar Ø | 31.8 mm |
| BB Shell | 68 mm |
| 1.1/8"Headset | Upper: EC34/28.6 |
| Lower: EC34/30 | |
