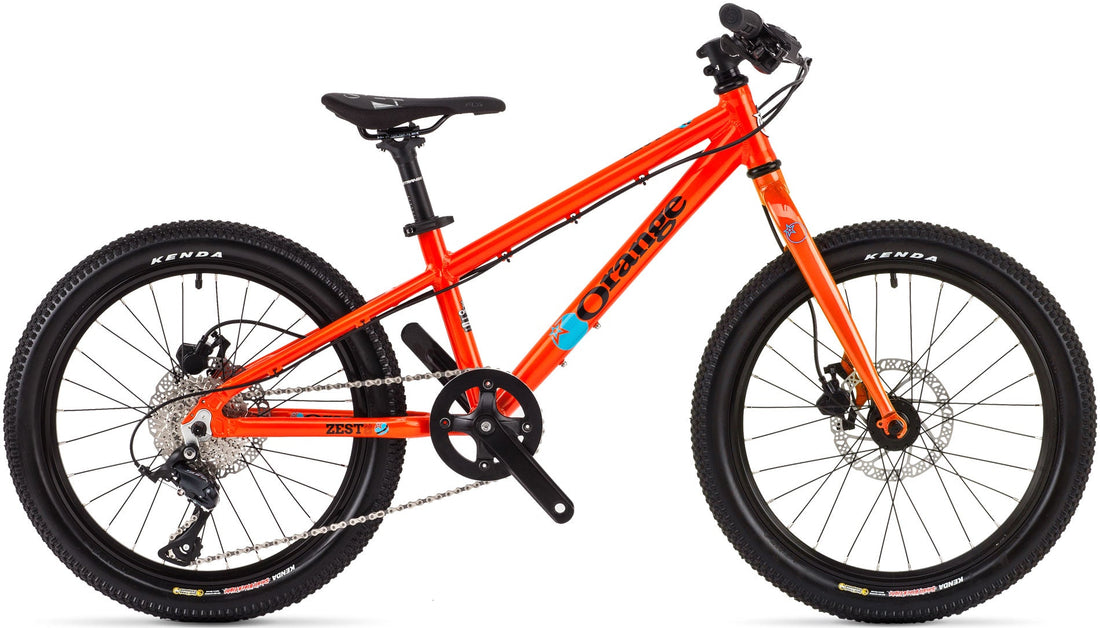

Zest 20 - 2023

Zest 20 - 2023

Why the Zest 20?



  • Designed in Britain
  • 5 year frame warranty
  • Lightweight aluminium frame
  • Rigid fork
  • Shimano 9 spd gearing
  • Road rear-derailleur for improved ground clearance
  • Hydraulic disc brakes with levers specifically design for small hands
  • 140mm Crank arms
  • Strange finishing kit
  • 580mm handlebar
  • SDG Junior saddle
  • Kenda 2.1" tyres for on and off-road use
  • QR seat clamp for ease of adjustment
  • 27.2 Seatpost

Want a 50mm suspension fork on your Zest 20? Take a look at the Zest 20 S. Looking for something with smaller wheels? Try the Pop. Need a larger bike? You’ll want the Zest 24.



Pumptrack, skate park, singletrack, school - the Zest 20 is ready to take your child all kinds of places. Wherever they go the lightweight aluminium frame and 20 inch wheels will help them go further and the confidence-inspiring geometry will keep things fun along the way - pure Orange.

We’ve sought out components every bit as capable as the frame. A Shimano Sora nine speed drivetrain helps conquer climbs while Tektro hydraulic disc brakes give small hands greater control and stopping power on the descents.

We believe little details make a big difference so features like serviceable bearings throughout, small diameter bars and truly off-road capable tyres mean there’s no limit as to where the Zest 20 can take your young rider.

Kids_Guide

Specs & Options

SIZES AND COLOURS

Sizes
One Size
Colour
Orange Soda

Select a frame size to choose colour

Decals
Black Decals

Frame and Fork

6061 Aluminium. Wheel Size: 20.

Fork
20 Aluminium Rigid
Swingarm
135 QR
Headset
FPD 1.1/8"

Drivetrain

Rear Mech
Shimano Sora 9spd
Chain
KMC 9spd
Shifters
Shimano Altus
Cassette
Shimano Alivio 11-32
Bottom Bracket
68mm Cartridge BB
Crankset
Strange 9 spd 140mm 32T

Wheel and Tyres

Wheelset
20" 28H Aluminium on Chosen Hubs
Tyres
Kenda Small Block 8 20x2.1

Braking

Brakes
Clarks Clout 160/160

Finishing Kit

Saddle
SDG Fly Jnr
Handlebars
Strange 580mm
Grips
Strange Kids push-on
Pedals
FPD Mini Resin Pedal
Seatpost
Strange Post 250 x 27.2
Seat Clamp
Strange QR

6061-T6 Custom Butted Aluminium
Frame Size One Size
Seat Tube 10.5"
A. Head Angle 69°
B. Seat Angle 73°
C. Top Tube 435
D. Effective TT 443
E. BB Height (axle diff) -5
F. Chainstay 360
G. Head Tube 105
H. Wheelbase 881
J. Reach 312
K. Stack 415
L. Crank Length 140
S. Max Seatpost Extension 180
Stem Length 40
Standover 540
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 456 mm Ø tyre.
Zest 20 Technical Info
Rear Hub 135 mm
Front Hub 100 mm
Seatpost Ø 27.2 mm
Seatpost Length 300 mm
Handlebar Ø 31.8 mm
BB Shell 68 mm
1.1/8"Headset Upper: EC34/28.6
Lower: EC34/30
