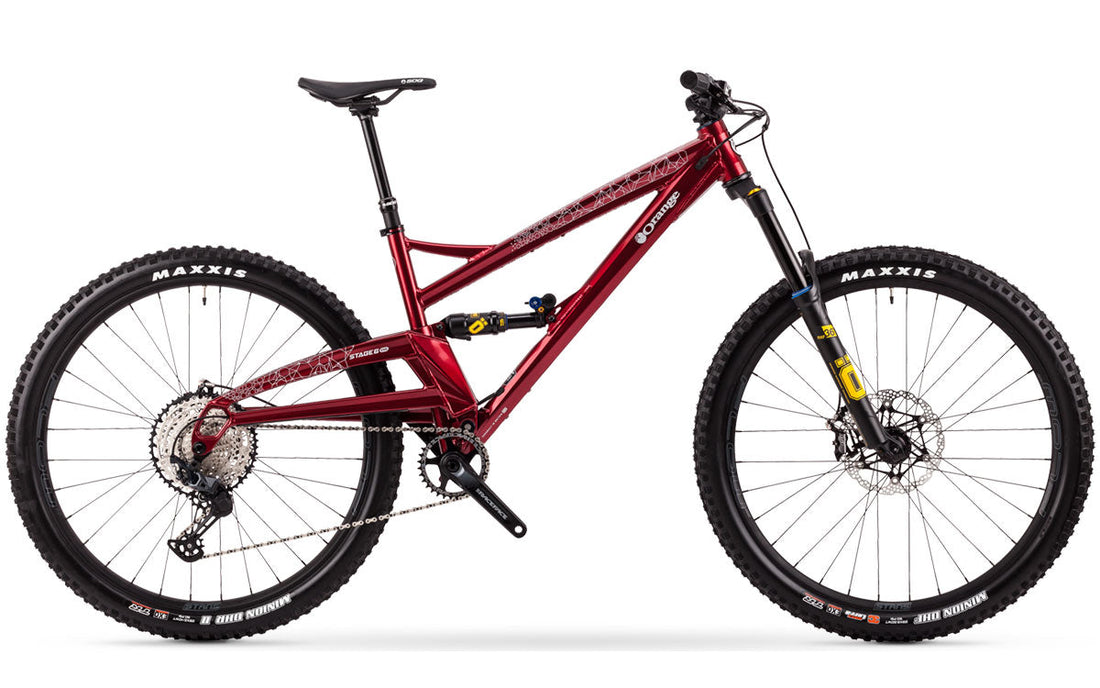

Stage 6 Evo SE - 2022

Stage 6 Evo SE - 2022

Why the Stage 6 Evo?



F: 150MM | R: 140MM | W: 29

  • Brand New Lightweight Frame Handbuilt in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • New Aggressive Evo geometry optimised for 150mm front/140mm rear travel
  • Asymmetrical swingarm with increased longitudinal stiffness
  • New Progressive suspension kinematics.
  • More neutral pivot location allowing less drivetrain/suspension interaction
  • Low position Asymmetric pivot – neutral suspension feel
  • Off-set pivot for chainring clearance
  • Geometry for reduced offset fork
  • New Improved dropout with UDH gear hanger
  • Boost 148 rear hub spacing
  • New Top tube accessory mounts
  • Bottle cage mounts
  • Internal cable/hose routing



This is the bike where we want F.A.F.

“Hair raisingly fast, with well-balanced handling” was the brief. We reckon the Stage 6 Evo is the bike to raise the hairs on the back of your neck before setting you straight back to cool, calm and collected. If you love the feeling of dropping into a fast trail with the bike accelerating beneath you, the track’s texture coming up through the contact points and the suspension flowing over the rocks and roots, then this is the bike for you. No traction control button, just full-on sport mode - you're welcome.

Full on Evo from Orange means you have honed geometry with decades of development and thousands of miles of test riding. The Stage 6 Evo is an aggressive trail bike with 29” wheels, designed to take a 150mm fork, with 140mm of rear wheel travel. This bike is fast, fun, and more than happy to ride terrain more aggressive than its travel numbers would suggest.

With the emphasis placed firmly on geometry and the incredible performance benefits that brings, the Stage 6 Evo could be the only bike you’ll ever need. The frame features our new asymmetric swingarm construction which improves stiffness and strength, a more progressive suspension curve, offset bearing housing to clear the chain-ring, allowing for a more neutral pivot position. The bolt-thru rear axle now threads into a UDH gear hanger – we believe this is a promising new 'standard’ and we approve of. UDH is universally available, simple and robust – a great step forward.

Neat features that we’ve also added to the new Stage 6 Evo frame include accessory mounts under the top-tube, to support the oodles of new and innovative accessories coming onto the scene. When you find your favourite, you’ll be good to go.

And so, what's F.A.F? We'll let you work it out.



Sizes
M   L   XL
Colour
Oxblood Red

Select a frame size to choose colour

Decals
Silver Decals

Frame and Fork

6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 140.

Headset
Cane Creek 49mm for Tapered Steerer
Fork
Ohlins RXF 36 M.2 Air 150mm 29
Swingarm
Bolt Type Allen Key Head (Boost 148mm Hub)
Rear Shock
Ohlins TTX1 Air 210x55

Drivetrain

Bottom Bracket
Race Face
Crankset
Race Face Aeffect 32t
Rear Mech
Shimano SLX 12spd
Chain
KMC 12spd
Shifters
Shimano SLX 12spd
Cassette
Shimano SLX 10-51T 12spd
Chain Device
Not Included

Wheel and Tyres

Wheelset
Stans Flow Mk4 + Hope Pro 4 (Black) 29
Tyres
Maxxis Minion DHF 2.5 3C Exo / DHR II 2.4 Exo 29

Braking

Brakes
Hope Tech 3 E4 Black 203/180

Finishing Kit

Seatpost
SDG Tellis 150mm
Seat Clamp
Strange Bolted
Stem
Hope M35 x 35mm Black
Saddle
SDG Strange Bel Air III
Handlebars
Renthal FatBar M35 800mm
Grips
Strange Grappler Lock-On









































6061-T6 Monocoque UK Formed Custom Aluminium Tubing
Frame Size M L XL
Seat Tube Length 17" 18" 19"
A. Head Angle 64° 64° 64°
B. Seat Angle 76° 76° 76°
C. Top Tube 621 632 640
D. Top Tube (effective) 625 645 665
E. BB Height (from ground) 330 330 330
BB height (from axles) -40 -40 -40
F. Chainstay 467 467 467
G. Head Tube 110 110 120
H. Wheel base 1272 1291 1313
J. Reach 468 487 505
K. Stack 630 630 640
T. Rear Travel 140 140 140
O. Fork Offset 42 42 42
Standover 733 744 797
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre.














technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
150 mm 150 mm 150 mm
Fork Offset 42 mm
Shock Length 210 mm x 55 mm
Rear Hub 12 x 148mm Boost
Seatpost Ø 30.9 mm
Seatclamp Ø 34.9 mm
Front Derailleur N/A
BB Shell 73 mm ISCG05
Tapered Headset Upper: ZS49/28.6
Lower: EC49/40
