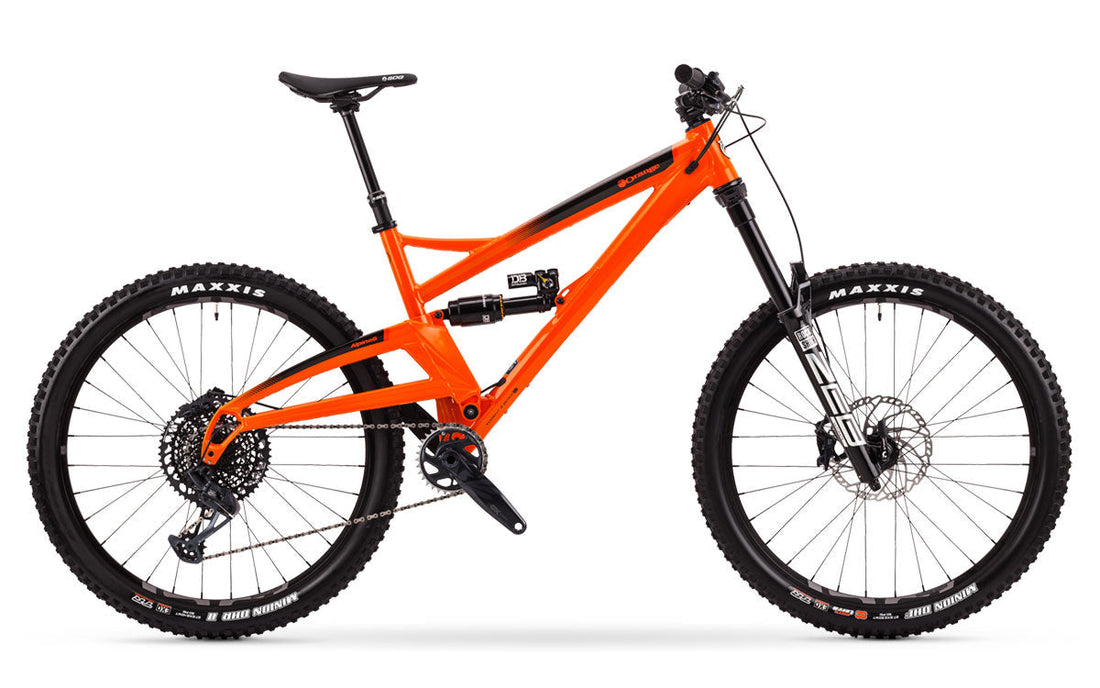

Alpine 6 RS-2022

Alpine 6 RS-2022

Why the Alpine 6 Pro-Line?



Put simply, a rider's bike!

  • Monocoque 6061-T6 aluminium frame
  • Designed and built in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Unique Single-pivot suspension for optimum performance, efficiency and reliability
  • Radically revised, more progressive frame suspension layout with 230x65mm metric shock
  • Reworked Alpine geometry for confidence, speed and stability
  • 170mm Front/165mm rear travel
  • Frame Bottle Bosses
  • Boost 148 rear hub spacing



The Alpine 6 is the stand-out big hitter in our Alpine bike line-up. It's legendary big travel all-mountain performance and Enduro race success speaks for it self. With its 27.5 inch wheels, it is sharp handling, fast turning and and utterly reliable in all conditions, this is the go to bike for the tough-guys and gals.

The Alpine 6 went through one of the most intensive prototyping programs we've ever done for performance and reliabilty and the result is spectacular.

With its 230mm metric shock, we revised the suspension layout to increase the rear travel and tuned the frame to be more progressive to retain a bottomless feel and improve small bump smoothness, treading that fine line that keeps wallow at bay and gives the Alpine 6 all the control it needs in extreme terrain.

The geometry has also been under the microscope and refined to match the new suspension performance, resulting in more agility, stability and confident speed.

When you come upon one of those unholy beasts of a trail, this is the bike to take it on at full-gas and tame it.



Sizes
S   M   L   XL   XXL
Colour
Norlando Grey

Select a frame size to choose colour

Decals
Black Decals

Frame and Fork

6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 27.5. Rear wheel travel: 165.

Fork
RockShox Zeb Ultimate 170mm 27.5
Swingarm
Bolt Type Allen Key Head (Boost 148mm Hub)
Rear Shock
Cane Creek DB Kitsuma air 230x65
Headset
Cane Creek 49mm for Tapered Steerer

Drivetrain

Rear Mech
SRAM GX Eagle 12spd
Chain
SRAM GX Eagle
Shifters
SRAM GX Eagle
Cassette
SRAM XG 1275 10-52t Eagle
Chain Device
Not Included
Bottom Bracket
SRAM DUB
Crankset
SRAM GX Eagle 32t

Wheel and Tyres

Wheelset
E13 TRS 30mm (Grey) + Hope Pro 4 (Black) 27.5
Tyres
Maxxis Minion DHF 2.5 3C Exo / DHR II 2.4 Exo 27.5

Braking

Brakes
Shimano SLX Trail 203/180

Finishing Kit

Stem
Burgtec Enduro Black 42.5mm
Saddle
SDG Strange Bel Air III
Handlebars
Burgtec RideWide Enduro 800mm
Grips
Strange Grappler Lock-On
Seatpost
SDG Tellis 150mm
Seat Clamp
Strange Bolted




























ALPINE 6 GEOMETRY
Monocoque/6061-T6 Custom Butted Aluminium tubing
Frame Size S M L XL XXL
Seat Tube Length 15" 17" 18" 19" 20"
A. Head Angle 64° 64° 64° 64° 64°
B. Seat Angle (Actual) 72° 72° 72° 72° 72°
B. Seat Angle (Effective) 74° 74° 74° 74° 74°
C. Top Tube 582 601 619 641 658
D. Top Tube (effective) 605 625 645 665 685
E. BB Height (from ground) 337 337 337 337 337
BB height (from axles -17 -17 -17 -17 -17
F. Chainstay 441 441 441 441 441
G. Head Tube 100 110 120 125 130
H. Wheel base 1208 1231 1251 1272 1293
J. Reach 432 447 467 486 505
K. Stack 602 620 620 624 629
T. Rear Travel 165 165 165 165 165
Standover 700 724 752 775 790
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 708 mm Ø tyre.
























technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
170 mm 170 mm 160 mm
Shock Length 230 x 65 mm
Rear Hub 12 x 148mm Boost
Fork Offset 46 mm
Seatpost Ø 30.9 mm
Seatclamp Ø 34.9 mm
Front Derailleur N/A
BB Shell 73 mm ISCG05
Tapered Headset Upper: ZS49/28.6
Lower: EC49/40
