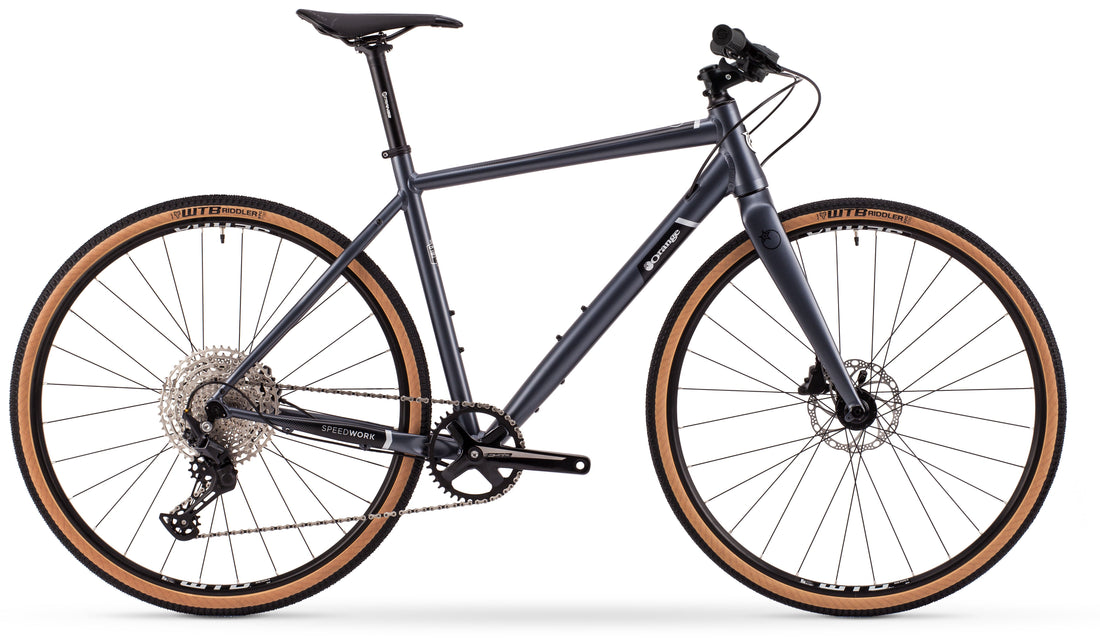

Speedwork - 2021
Overview
Why the Speedwork?
- Lightweight custom butted 6061-T6 OS aluminium designed in Britain
- Carbon Fork with 15 mm bolt-through axle
- 5 year frame warranty
- Tektro hydraulic disc brakes
- Built for weekend gravel epics as well as your daily workhorse
- Comfort and control but with road bike speed
- 700c x 37c tyres giving that perfect blend of comfort and speed
- Shimano Deore 1 x 11spd drivetrain with 11-51 range for all the gears you'll ever need
The Perfect "All-rounder"
A week is a long time to go without a dash of Orange, so we created the Speedwork; a super-fast everyday flat handlebar gravel bike that's far beyond a hybrid. The Speedwork defies being labelled; a breathtaking blend of gravel bike comfort and road bike speed is what this bike is all about, with a healthy dose of fun thrown in.
A brand new frame for this year sees updated geometry, internal cable routing and some neat extra features for rack and mudguard users. We've also added an extra set of bottle bosses under the downtube if frame bags are your thing.
Built around our legendary 6061 tubing, the Speedwork offers all the comfort and control you'd ever need, with a rigid carbon fork, 700c wheels and fast-rolling 37c tyres for flat-out speed on man-made terrain. Big gear ratios and reliable componentry means minimal servicing even when you’re clocking up commuter miles.
A bike this good isn’t just a weekday workhorse though. For weekend bike-packing trips, that gravel race you really want to do, the daily grind or just relishing the thrill of riding fast, the Speedwork totally nails it. Of all the Oranges in your quiver, this could be the one you ride most.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 700c.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
Speedwork Geometry
| 6061-T6 Double Butted Aluminium | ||||
| Frame | S | M | L | XL |
| Frame Size (cm) | 44 | 48 | 52 | 55 |
| A. Head Angle | 69° | 69° | 69° | 69° |
| B. Seat Angle | 74° | 74° | 74° | 74° |
| C. Top Tube | 510 | 530 | 546 | 562 |
| D. Effective TT | 528 | 548 | 564 | 580 |
| E. Bottom Bracket Height | -65 | -65 | -65 | -65 |
| F. Chainstay | 433 | 433 | 433 | 433 |
| G. Head Tube | 110 | 130 | 150 | 170 |
| H. Wheelbase | 1032 | 1053 | 1071 | 1088 |
| I. Front & Centre | 607 | 629 | 646 | 663 |
| J. Reach | 370 | 385 | 395 | 405 |
| K. Stack | 552 | 570 | 589 | 608 |
| Standover | 786 | 757 | 775 | 799 |
| Seat Tube Ø | 30.9 | 30.9 | 30.9 | 30.9 |
|
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 719mm Ø tyre. |
||||
Speedwork Technical Info
| Rear Hub | 142 x 12 | ||
| Rear Axle | Length-160mm, Thread-20mm, Pitch-M12X1.5 | ||
| Front Hub | 100 x 15 | ||
| Front Axle | Length-152mm, Thread-20mm, Pitch-M12X1.5 | ||
| Seatpost Ø | 30.9 mm | ||
| Seat Clamp Ø | 34.9 mm | ||
| Front Derailleur | Band | ||
| BB Shell | 68 mm | ||
| 1.1/8"Headset | Upper: ZS44/28.6 Lower: EC44/40 |
||
Ride Guide
| Trail | ||
| XC Racing | ||
| Bike Packing | ||
| Gravel | ||
| Urban |
Bike Sizing Guidelines
Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
Prices and Specifications are liable to change without notice.
