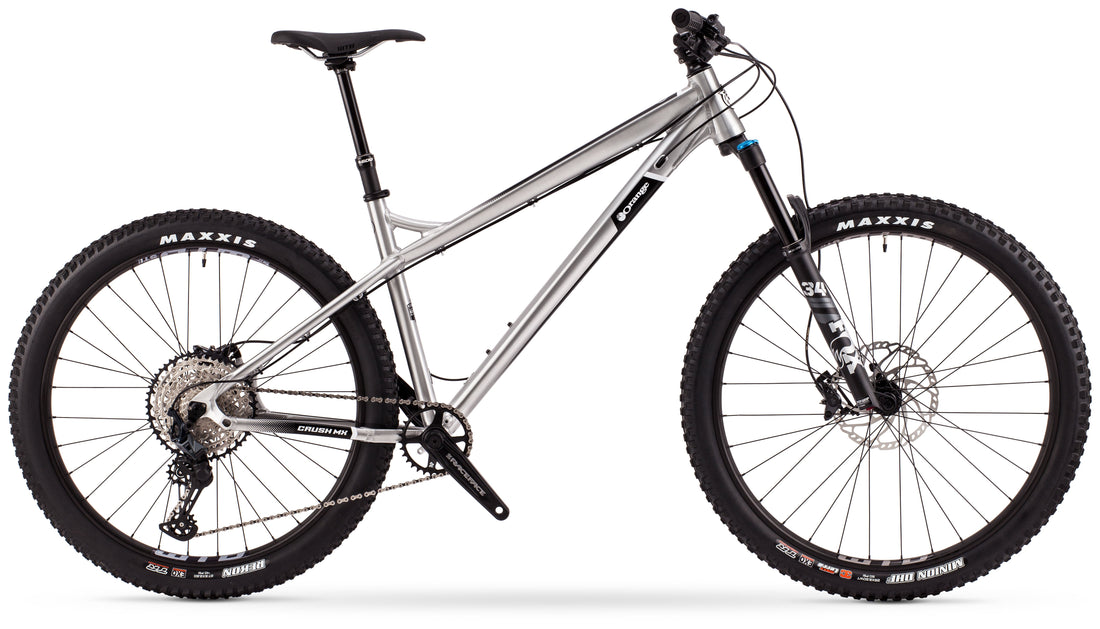

Crush MX Pro Ltd - 2021

Crush MX Pro Ltd - 2021

Overview

Why the Crush MX?



F: 140MM | W: 29/27.5

  • Brand New Frame designed in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Custom butted 6061-T6 aluminium frame
  • Perfected MX Frame geometry for 140mm travel fork and 29/27.5 wheels
  • Bolt through 12 x 148 hub spacing
  • Yoked chainstay design gives clearance for 27.5 2.6 tyres
  • 73mm BB Shell with ISCG 05 tabs
  • Minimal design cable & hose guides



Time to MX up the Hardcore Hardtail

Introducing the Orange Crush MX. It's pretty difficult not to be a fan of the mixed wheel set up, you get better traction up front from the larger wheel, coupled with better roll over and more stability. This is paired with a rear wheel which accelerates quickly, is more robust, more agile and offers incredible cornering traits, it's a match made in heaven.

Welcome to the quiver: the CRUSH MX.

This 140mm travel mixed wheel trail slayer could be your perfect only bike or an ideal N+1. It features a 6061 custom butted aluminium frame, 64.5° head angle, reduced offset fork, 75.5° seat angle, 430mm chain stays and a reach of 480mm (size large). providing you with the stability to ride in even the toughest of conditions but not being so overkill you couldn't ride you'r local loop with a smile on your face. Additional details include a sleek tapered head tube, CNC dropper cable guides, plenty of tyre clearance to accommodate even the wildest of 2.6 tyres and a new seat stay bridge.

Specs & Options

SIZES AND COLOURS

Sizes
S   M   L   XL
Colour
Limited Edition Brushed Aluminium

Select a frame size to choose colour

Decals
Black Decals

Frame and Fork

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: MX - 29/27.5.

Swingarm
Bolt Type Allen Key Head (Boost 148mm Hub)
Rear Shock
N/A
Headset
FPD 44mm / 56mm zerostack
Fork
Fox Performance 34 Float 140mm 29

Drivetrain

Shifters
Shimano SLX 12spd
Cassette
Shimano SLX 10-51T 12spd
Chain Device
Not Included
Bottom Bracket
Race Face
Crankset
Race Face Ride 32t
Rear Mech
Shimano SLX 12spd
Chain
KMC 12spd

Wheel and Tyres

Wheelset
WTB ST Light i30 on Strange 29 + 27
Tyres
Maxxis Minion DHF 2.5 3C 29 / Rekon 2.6 27

Braking

Brakes
Shimano Deore 6100 203/180

Finishing Kit

Handlebars
Burgtec RideWide Enduro DB 800mm
Grips
Strange Grappler Lock-On
Seatpost
SDG Tellis 150mm
Seat Clamp
Strange Bolted
Stem
Burgtec Enduro Black 42.5mm
Saddle
WTB Silverado Comp
Pedals

Geometry & Tech Info

2021 Crush MX geometry
Crush MX Geometry
6061-T6 Custom Butted OS Aluminium Tube
Frame Size S M L XL
Seat Tube Length 15" 17" 18" 19"
A. Head Angle 64.5° 64.5° 64.5° 64.5°
B. Seat Angle 75.5° 75.5° 75.5° 75.5°
C. Top Tube 629 644 659 675
D. Effective TT 607 630 652 674
E. BB Height (axle diff) -58 -58 -58 -58
E. BB Height (from ground) 306 306 306 306
F. Chainstay 430 430 430 430
G. Head Tube 110 120 130 140
H. Wheelbase 1191 1216 1240 1266
J. Reach 440 460 480 500
K. Stack 638 647 656 665
O. Fork Offset 43 43 43 43
Standover 650 659 668 679
Stem Length 40 40 40 40
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 745mm Ø Front and 715mm Ø Rear tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
140 mm 140 mm 140 mm

Fork Offset 43 mm
Rear Hub 12 x 148 mm Boost
Seatpost Ø 30.9 mm
Seatclamp Ø 34.9 mm
BB Shell 73mm ISCG 05
Tapered Headset Upper: ZS44/28.6
Lower: ZS56/40
Ride Guide
Downhill
Freeride
Enduro
All-Mountain
Trail
XC Racing
Bike Packing
Gravel
