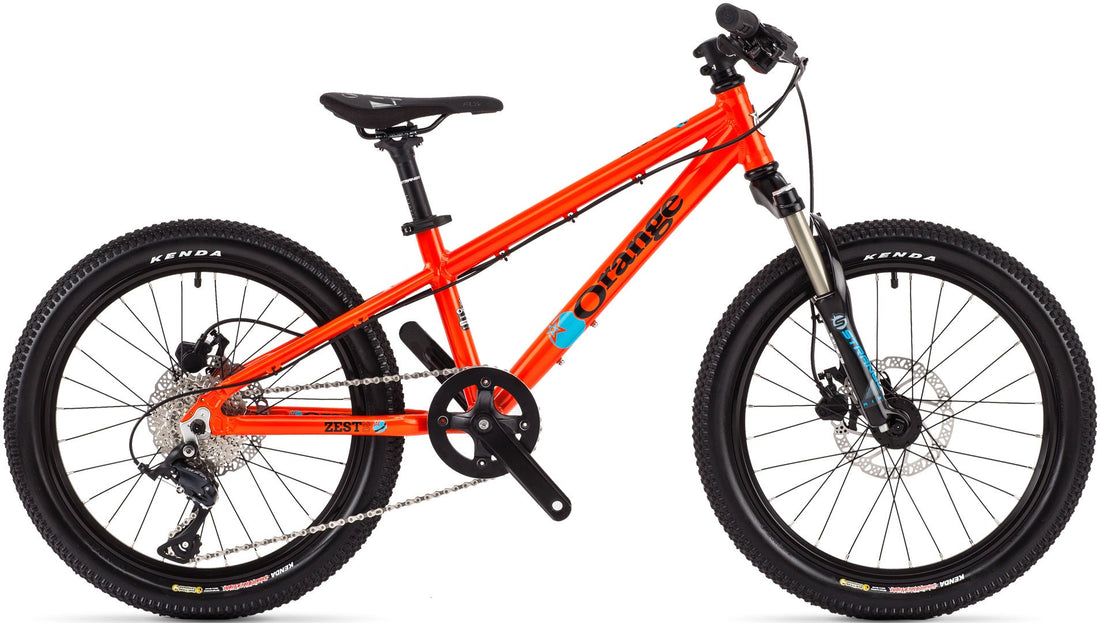

Zest 20 S - 2020
Overview
Why the Zest 20 S?
- Designed in Britain
- 5 year frame warranty
- Lightweight aluminium frame
- Strange edition Spinner Grind air suspension fork
- Shimano 9 spd gearing
- Road rear derailleur for improved ground clearance
- Hydraulic disc brakes with levers specifically design for small hands
- 140mm crank arms
- Strange finishing kit
- 580mm handlebar
- SDG Junior saddle
- Kenda 2.1" tyres for on and off-road use
- QR seat clamp for ease of adjustment
- 27.2 Seatpost
Want a Zest 20 S without the suspension fork? Check out the Zest 20. Looking for something with 16 inch wheels? Try the Pop. Need a larger bike? You’ll want the Zest 24.
Pumptrack, skate park, singletrack, school - the Zest 20 S is ready to take your child all kinds of places. Wherever they go the lightweight aluminium frame and 20 inch wheels will help them go further and the confidence-inspiring geometry will keep things fun along the way - pure Orange.
We’ve sought out components every bit as capable as the frame. The GRIND 50mm suspension fork means the Zest 20 S is up for taking on the rough stuff. A Shimano Sora nine speed drivetrain helps conquer climbs while Tektro hydraulic disc brakes give small hands greater control and stopping power on the descents.
We believe little details make a big difference so features like serviceable bearings throughout, small diameter bars and truly off-road capable tyres mean there’s no limit as to where the Zest 20 S can take your young rider.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061 Aluminium. Wheel Size: 20.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
Zest 20 Geometry
| 6061-T6 Custom Butted Aluminium | |
| Frame Size | One Size |
| Seat Tube | 10.5" |
| A. Head Angle | 69° |
| B. Seat Angle | 73° |
| C. Top Tube | 435 |
| D. Effective TT | 443 |
| E. BB Height (axle diff) | -5 |
| F. Chainstay | 360 |
| G. Head Tube | 105 |
| H. Wheelbase | 881 |
| J. Reach | 312 |
| K. Stack | 456 |
| L. Crank Length | 140 |
| S. Max Seatpost Extension | 180 |
| Stem Length | 40 |
| Standover | 540 |
|
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 456 mm Ø tyre. |
|
Zest 20 Technical Info
| Fork Travel | 50 mm |
| Rear Hub | 135 mm |
| Front Hub | 100 mm |
| Seatpost Ø | 27.2 mm |
| Seatpost Length | 300 mm |
| Handlebar Ø | 31.8 mm |
| BB Shell | 68 mm |
| 1.1/8"Headset | Upper: EC34/28.6 Lower: EC34/30 |
