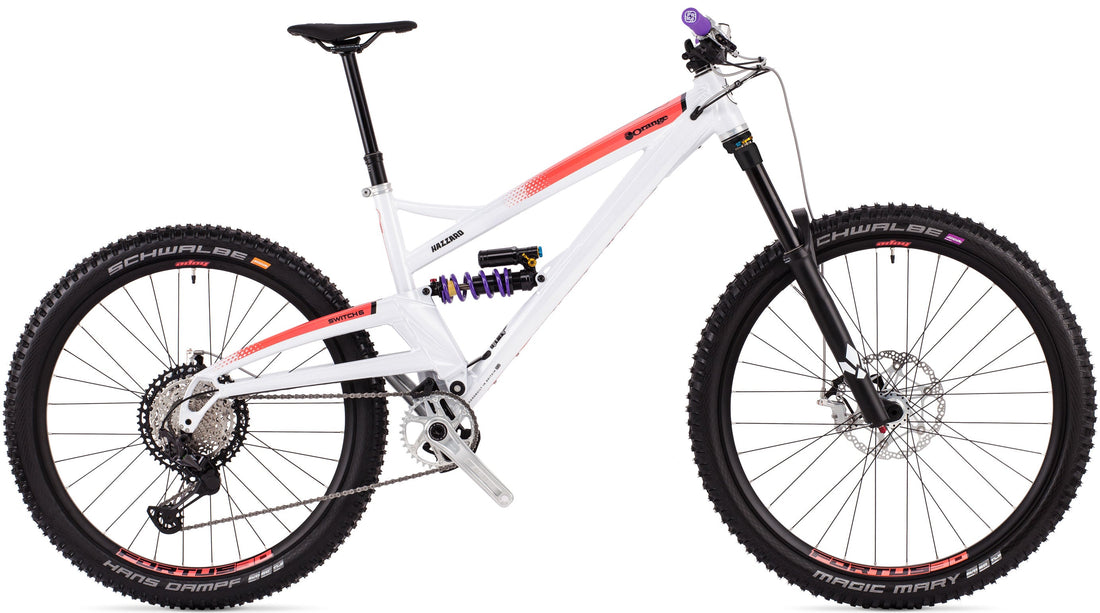

Switch 6 Hazzard - 2020

Switch 6 Hazzard - 2020

Overview

Why the Switch 6 Hazzard?



F: 160MM | R: 145MM | W: 29/27.5

  • Lightweight Frame Handbuilt in Britain
  • Brand New Monocoque 6061-T6 aluminium frame
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Hazzard Spec Formula Suspension package selected by Joe Barnes
  • One Up Cockpit components
  • New 29 front/27.5 rear mixed size wheelset
  • Orange race tuned geometry
  • New Reduced offset fork
  • Streamlined cable routing
  • Steep 76° seat angle
  • New Frame bottle bosses
  • Ultimate “Do it all” bike
  • Special Hazzard Team Colourway



This is a Limited Edition Hazzard Racing spec of the Switch 6. It is the same specification that the team members are running this season, featuring suspension components from Formula, Cockpit set-up from One Up and some neat silver anodozed Hope Tech goodies to finish the package. There is also a Limited Edition Alpine 6 Hazzard model.

The Switch 6 is our first mixed wheel size bike, 29er wheel upfront with 160mm of travel and 27.5 wheel out back with 145mm.

New for 2020 this model comes with all the frame updates that we’ve integrated into the latest line-up; Metric shock, 76° seat angle, 64° head angle, with a generous 485mm reach on a size large and a reduced offset fork, this bike is clearly set-up with the agressive rider in mind.

Aimed at racers and fast trail riders this genre of bike has become the hottest ticket around, whether you call them a 'Mullet' or 'MX', the mixed size wheelset makes a massive amount of sense, but only if you apply the right geometry. The Switch 6 has it's geometry tuned to put all the key frame elements in the right place, therefore the ride by design is what you would expect from an Orange.

The bike will be available in 4 specs (pro, RS, Factory and XTR) with prices ranging from £4300-£6500 with a choice of four colour options.

Specs & Options

SIZES AND COLOURS

Sizes
M   L   XL
Colour
Cosmic White

Select a frame size to choose colour

Decals
As Image

Frame and Fork

6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. Rear wheel travel: 145.

Fork
Formula Selva S 160mm 29
Swingarm
Bolt Type Allen Key Head (Boost 148mm Hub)
Rear Shock
Formula Coil 210x55
Headset
Hope Silver - 49mm for Tapered Steerer

Drivetrain

Rear Mech
Shimano XT 12spd
Chain
Shimano XT 12spd
Shifters
Shimano XT 12spd
Cassette
Shimano XT 10-51T
Chain Device
OneUp Bash Guide ISCG05
Bottom Bracket
Hope 30mm Silver
Crankset
Hope Silver 34t

Wheel and Tyres

Wheelset
Hope Fortus on Hope Pro 4 silver 29 + 27
Tyres
Schwalbe Magic Mary 2.35 SG US 29 / Hans Dampf 2.35 SG S 27.5
Rim Decals
Standard Rim Decals

Braking

Brakes
Hope Tech 3 V4 Silver 203/180

Finishing Kit

Stem
OneUp Stem Black 35mm
Saddle
Gusset S2 SM
Handlebars
OneUp Carbon Bar 800mmx20mm
Grips
Gusset Black
Seatpost
OneUp Dropper Post V2 180mm
Seat Clamp
Hope Bolted Silver

Geometry & Tech Info

2020 Switch 6 Geometry
Switch 6 GEOMETRY
Monocoque/6061-T6 Reynolds Custom Butted Aluminium tubing
Frame Size M L XL
Seat Tube Length 17" 18" 19"
A. Head Angle 64° 64° 64°
B. Seat Angle 76° 76° 76°
C. Top Tube 621 632 640
D. Top Tube (effective) 625 645 665
E. BB Height (from ground) 330 330 330
BB height (from axles) -40 -40 -40
F. Chainstay 447 447 447
G. Head Tube 100 110 120
H. Wheel base 1250 1272 1294
J. Reach 467 484 503
K. Stack 633 642 652
T. Rear Travel 145 145 145
O. Fork Offset 42 42 42
Standover 733 744 797
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
160 mm 160 mm 160 mm
Fork Offset 42 mm
Shock Length 210 mm x 55 mm
Rear Hub 12 x 148mm Boost
Seatpost Ø 30.9 mm
Seatclamp Ø 34.9 mm
Front Derailleur N/A
BB Shell 73 mm ISCG05
Tapered Headset Upper: ZS49/28.6
Lower: EC49/40
