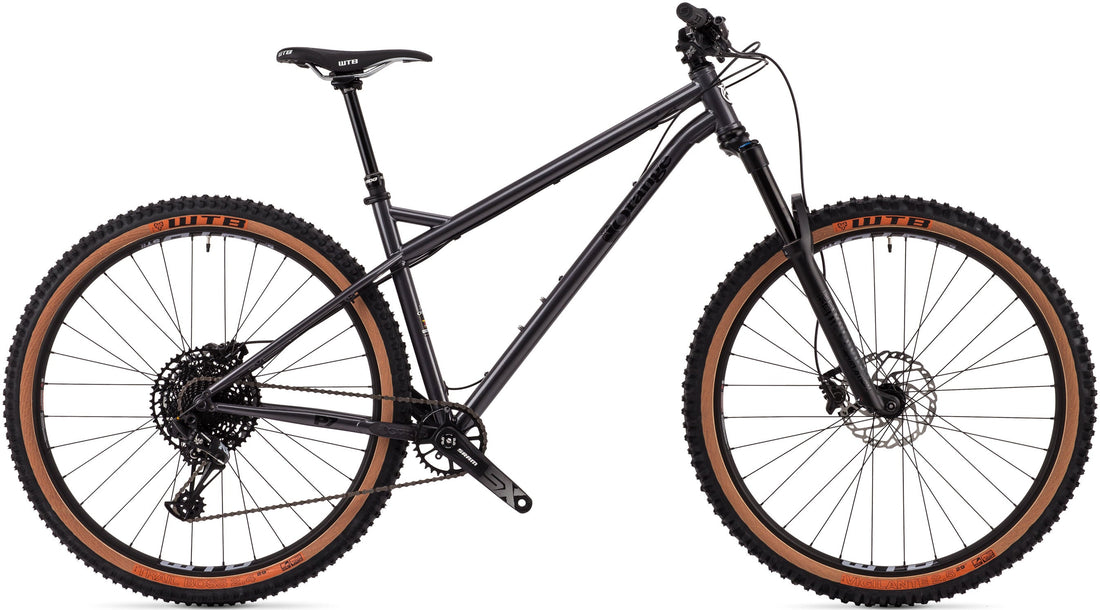

P7 29 S - 2020

P7 29 S - 2020

Overview

Why the P7 29?



F: 140MM | W: 29

  • Frame designed in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Custom butted Reynolds 525 CroMo Tubeset
  • 29" wheels
  • Geomtrey of a 140mm fork
  • Internal dropper routing
  • Frame clearance for 29x2.6 or 27.5x3.0 tyres



The cult following for the Reynolds steel tubed P7 in 29er guise is strong. It's one of those bikes that once you've dicovered you'll never forget. For 2020 we've added an extra 10mm to the fork and tweaked the geometry to match.

This P7 29 ups the ante from its little wheeled brother, a veritable runaway trail train, the 29er version will have the wind whistling in your ears before you realise how fast you're travelling. With a 140mm travel fork up front this bike roars with confidence taking everything before it in its long legged stride.

The frame also offers stacks of clearance to allow you to run 27.5+ tyres up to a 3.0 inch carcass if that's how you roll. Fast and raucous, grippy and sure-footed and every level in-between – how you choose to ride your P7 29 is up to you.

Specs & Options

SIZES AND COLOURS

Sizes
M   L   XL
Colour
Gloss Charcoal Grey

Select a frame size to choose colour

Decals
Black Decals

Frame and Fork

Reynolds 525. Wheel Size: 29.

Fork
RockShox Revelation 140mm 29"
Swingarm
Bolt Type Allen Key Head (Boost 148mm Hub)
Rear Shock
N/A
Headset
FPD 44mm

Drivetrain

Rear Mech
SRAM NX Eagle 12spd
Chain
SRAM SX Eagle
Shifters
SRAM SX Eagle
Cassette
SRAM SX Eagle 1210 11-50T
Chain Device
Not Included
Bottom Bracket
SRAM DUB
Crankset
SRAM SX Eagle 32t

Wheel and Tyres

Wheelset
WTB ST Light i30 on Strange 29
Tyres
WTB Vigilante 2.5 and Trail Boss 2.4 29
Rim Decals
Standard Rim Decals

Braking

Brakes
Shimano MT500 180/180

Finishing Kit

Stem
Race Face Chester M35 x 40mm
Saddle
WTB Silverado Comp
Handlebars
Race Face Chester Stealth 780mm
Grips
Strange 130 Single Lock-On Black
Pedals
Kore Rivera Thermo
Seatpost
SDG Tellis 150mm
Seat Clamp
Strange Bolted

Geometry & Tech Info

2020 P7 29 geometry
P7 Geometry
Reynolds 525 Tubing
Frame Size M L XL
Seat Tube Length 17" 18" 19"
A. Head Angle 65° 65° 65°
B. Seat Angle 74° 74° 74°
C. Top Tube 643 663 665
D. Effective TT 622 649 678
E. BB Height (axle diff) -68 -68 -68
E. BB Height (from ground) 302 302 302
F. Chainstay 445 445 445
G. Head Tube 110 120 130
H. Wheelbase 1202 1230 1261
J. Reach 437 460 487
K. Stack 646 655 664
O. Fork Offset 51 51 51
Standover 692 710 751
Stem Length 50 50 50
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 740 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
140 mm 140 mm 140 mm

Rear Hub 12 x 148 mm Boost
Seatpost Ø 30.9 mm
Front Derailleur None
BB Shell 73mm ISCG 05
Tapered Headset Upper: ZS44/28.6
Lower: EC44/40
