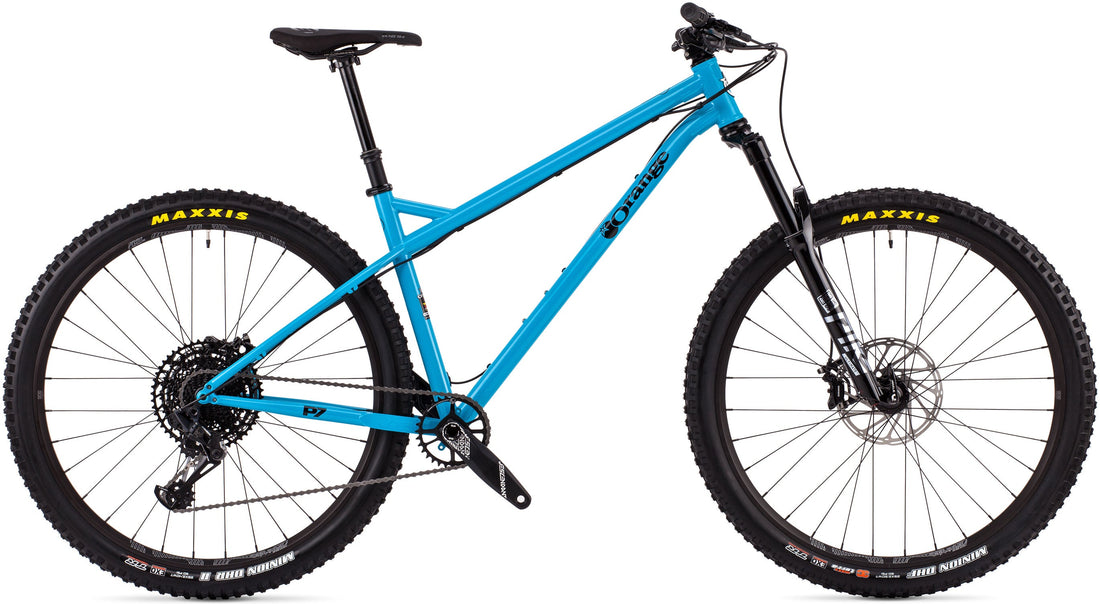

P7 29 R - 2020

P7 29 R - 2020

Overview

Why the P7 29?



F: 140MM | W: 29

  • Frame designed in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Custom butted Reynolds 525 CroMo Tubeset
  • 29" wheels
  • Geomtrey of a 140mm fork
  • Internal dropper routing
  • Frame clearance for 29x2.6 or 27.5x3.0 tyres



The cult following for the Reynolds steel tubed P7 in 29er guise is strong. It's one of those bikes that once you've dicovered you'll never forget. For 2020 we've added an extra 10mm to the fork and tweaked the geometry to match.

This P7 29 ups the ante from its little wheeled brother, a veritable runaway trail train, the 29er version will have the wind whistling in your ears before you realise how fast you're travelling. With a 140mm travel fork up front this bike roars with confidence taking everything before it in its long legged stride.

The frame also offers stacks of clearance to allow you to run 27.5+ tyres up to a 3.0 inch carcass if that's how you roll. Fast and raucous, grippy and sure-footed and every level in-between – how you choose to ride your P7 29 is up to you.

Specs & Options

SIZES AND COLOURS

Sizes
M   L   XL
Colour
Fizzy Orange

Select a frame size to choose colour

Frame and Fork

Reynolds 525. Wheel Size: 29.

Swingarm
Bolt Type Allen Key Head (Boost 148mm Hub)
Rear Shock
N/A
Headset
Cane Creek 44mm For Tapered Steerer
Fork
RockShox Pike Ultimate 140mm 29

Drivetrain

Shifters
SRAM GX Eagle
Cassette
SRAM NX Eagle 1230 11-50T
Chain Device
Not Included
Bottom Bracket
SRAM DUB
Crankset
SRAM Descendant 6K Dub
Rear Mech
SRAM GX Eagle 12spd
Chain
SRAM NX Eagle

Wheel and Tyres

Rim Decals
Standard Rim Decals
Wheelset
E13 TRS 30mm 29 (Grey) + Hope Pro 4 (Black)
Tyres
Maxxis Minion DHF 2.5 WT and DHR II 2.4 WT 29

Braking

Brakes
Shimano MT520 4-Piston 203/203/183

Finishing Kit

Handlebars
Burgtec RideWide Enduro 800mm
Grips
Strange 130 Single Lock-On Black
Seatpost
Fox Transfer Elite 150mm Drop
Seat Clamp
Strange Bolted
Stem
Burgtec MK2 Enduro Black 35mm
Saddle
SDG Radar Steel Rail Black/Black

Geometry & Tech Info

2020 P7 29 geometry
P7 Geometry
Reynolds 525 Tubing
Frame Size M L XL
Seat Tube Length 17" 18" 19"
A. Head Angle 65° 65° 65°
B. Seat Angle 74° 74° 74°
C. Top Tube 643 663 665
D. Effective TT 622 649 678
E. BB Height (axle diff) -68 -68 -68
E. BB Height (from ground) 302 302 302
F. Chainstay 445 445 445
G. Head Tube 110 120 130
H. Wheelbase 1202 1230 1261
J. Reach 437 460 487
K. Stack 646 655 664
O. Fork Offset 51 51 51
Standover 692 710 751
Stem Length 50 50 50
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 740 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
140 mm 140 mm 140 mm

Rear Hub 12 x 148 mm Boost
Seatpost Ø 30.9 mm
Front Derailleur None
BB Shell 73mm ISCG 05
Tapered Headset Upper: ZS44/28.6
Lower: EC44/40
