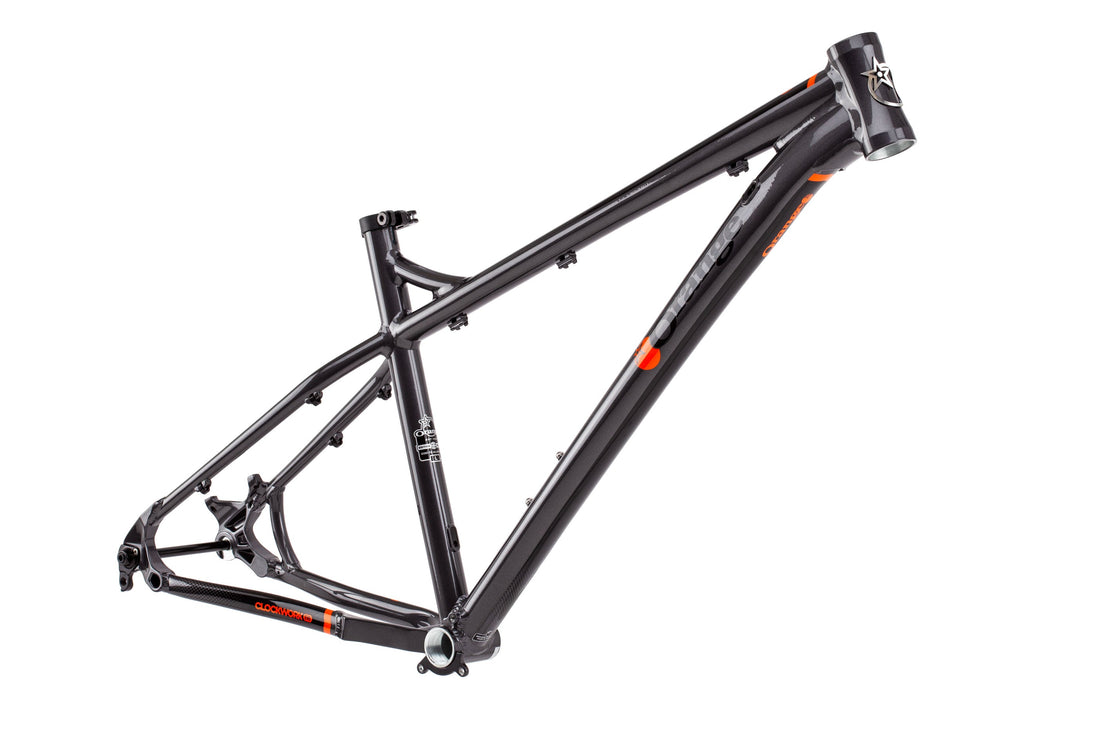

Clockwork Evo Frame - 2020

December 17, 2025

Overview

Why the Clockwork EVO?

F: 140MM | W: 27.5

Super Lightweight Frame Designed in Britain
5 year frame warranty with Limited Lifetime Crash Replacement
Custom butted 6061-T6 aluminium frame
Improved standover and EVO geometry
Geometry revised for 140mm travel fork
Bolt through 12 x 148 rear hub spacing

The Clockwork EVO delivers the benchmark Orange Bikes ride with dependable performance.

Prefer fast rolling 29 inch wheels? Try the Clockwork Evo 29.

The new Clockwork EVO sits cheekily between the Clockwork and the full-gas aggressive Crush, firmly hitting a sweet spot for serious minded riders. Far from sedate, for 2020 the Clockwork EVO gets a proper frame overhaul, with and extra 10mm of fork travel to 140mm, a slacker head angle at 65°, and a lower bottom bracket to keep that old CofG low. Some lovely new cable routeing details complete the package of this performance hardtail. Those riders bragging about their hardcore Crushes had better watch out.

If you're looking for a fast, lean and wild riding trail hardtail this is the bike you're looking.

Specs & Options

SIZES AND COLOURS

Sizes

S M L XL

Colour

Gloss Charcoal Grey

Decals

Orange/Black Decal

Frame and Fork

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5.

Swingarm

Bolt Type Allen Key Head (Boost 148mm Hub)

Headset

Finishing Kit

Seat Clamp

Strange QR

Geometry & Tech Info

Clockwork Evo Geometry

6061-T6 Custom Butted Aluminium
Frame Size	S	M	L	XL
Seat Tube Length	16"	17"	18"	20"
A. Head Angle	65°	65°	65°	65°
B. Seat Angle	74°	74°	74°	74°
C. Top Tube	619	625	638	654
D. Effective TT	610	630	650	670
E. BB Height (axle diff)	-58	-58	-58	-58
E. BB Height (from ground)	296	296	296	296
F. Chainstay	425	425	425	425
G. Head Tube	100	110	110	120
H. Wheelbase	1164	1186	1206	1227
J. Reach	434	451	471	489
K. Stack	612	621	621	630
O. Fork Offset	46	46	46	46
Stem Length	50	50	50	50
Standover	658	676	694	730

Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 710 mm Ø tyre.
