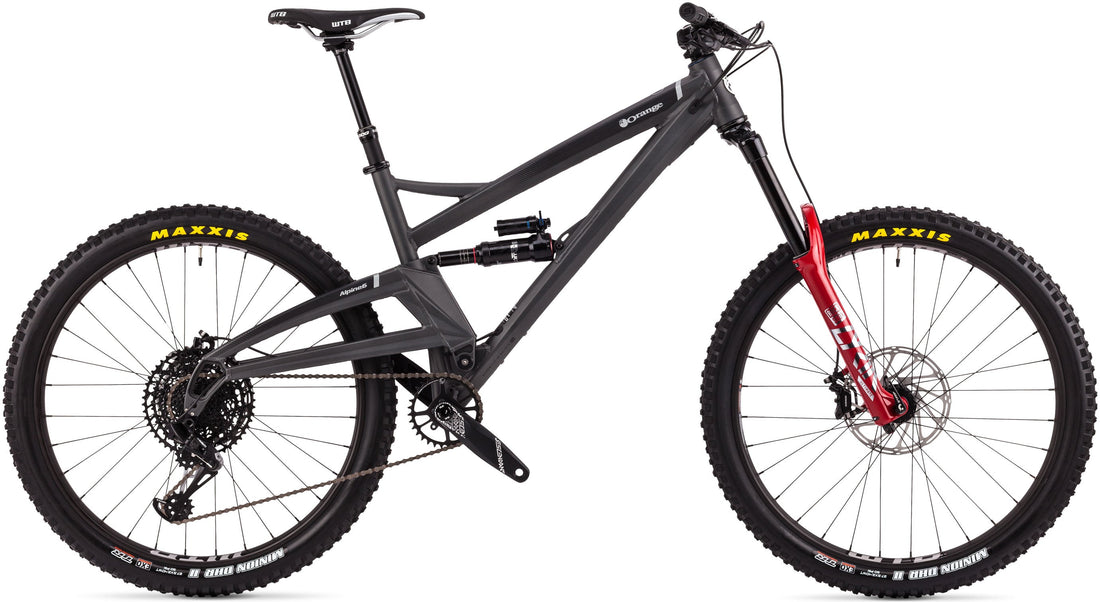

Alpine 6 Pro-Line - 2020
Share
Overview
Why the Alpine 6 Pro-Line?
Put simply, a rider's bike! Built around a high-end RockShox Ultimate suspension package.
Note: This model is a unique build specification without custom options.
- Brand New monocoque 6061-T6 aluminium frame
- Designed and built in Britain
- 5 year frame warranty with Limited Lifetime Crash Replacement
- Unique Single-pivot suspension for optimum performance, efficiency and reliability
- New Radically revised, more progressive frame suspension layout with 230x65mm metric shock
- New Reworked Alpine geometry for confidence, speed and stability
- New 170mm Front/165mm rear travel
- New Frame Bottle Bosses
- Boost 148 rear hub spacing
The Alpine 6 is also available in these model specs: S, Pro, RS, Factory and XTR complete with custom options.
Other Pro-Line models: Five Pro-Line
This is the Pro-Line model. Built for the pinners. If you're looking for maximum grip and trail feedback, suspension set-up is the key. The Pro Line models are specced for riders like you. The focus of the build is all about the specially selected high-end Lyrik fork and shock from RockShox tuned to the Orange frame's single pivot suspension ramp to give riders that all-out performance we love.
The Challenge: How do we go about updating a bike in our range whose legion of fans don't want us to change anything?
The answer, as with everything we do, is with great care and a stack of test feedback.
The new Alpine 6 has been through one of the most intensive prototyping programs we've ever done – the result is spectacular.
With the introduction of the 230mm metric shock, we have revised the suspension layout to increase the rear travel. We've also tuned the frame to be more progressive to retain a bottomless feel and improve small bump smoothness, treading that fine line that keeps wallow at bay and gives the Alpine 6 all the control it needs.
The geometry has also been under the microscope and refined to match the new suspension performance, resulting in more agility, stability and confident speed.
When you come upon one of those unholy beasts of a trail, this is the bike to take it on at full-gas and tame it.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 27.5. Rear wheel travel: 165.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info

ALPINE 6 GEOMETRY
| Monocoque/6061-T6 Custom Butted Aluminium tubing | |||||
| Frame Size | S | M | L | XL | XXL |
| Seat Tube Length | 15" | 17" | 18" | 19" | 20" |
| A. Head Angle | 64° | 64° | 64° | 64° | 64° |
| B. Seat Angle (Actual) | 72° | 72° | 72° | 72° | 72° |
| B. Seat Angle (Effective) | 74° | 74° | 74° | 74° | 74° |
| C. Top Tube | 582 | 601 | 619 | 641 | 658 |
| D. Top Tube (effective) | 605 | 625 | 645 | 665 | 685 |
| E. BB Height (from ground) | 337 | 337 | 337 | 337 | 337 |
| BB height (from axles | -17 | -17 | -17 | -17 | -17 |
| F. Chainstay | 441 | 441 | 441 | 441 | 441 |
| G. Head Tube | 100 | 110 | 120 | 125 | 130 |
| H. Wheel base | 1208 | 1231 | 1251 | 1272 | 1293 |
| J. Reach | 432 | 447 | 467 | 486 | 505 |
| K. Stack | 602 | 620 | 620 | 624 | 629 |
| T. Rear Travel | 165 | 165 | 165 | 165 | 165 |
| Standover | 700 | 724 | 752 | 775 | 790 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 708 mm Ø tyre. | |||||
technical Info
| fork travel | |||||||||
|
|||||||||
| Shock Length | 230 x 65 mm | ||||||||
| Rear Hub | 12 x 148mm Boost | ||||||||
| Fork Offset | 46 mm | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Seatclamp Ø | 34.9 mm | ||||||||
| Front Derailleur | N/A | ||||||||
| BB Shell | 73 mm ISCG05 | ||||||||
| Tapered Headset | Upper: ZS49/28.6 Lower: EC49/40 |
||||||||
Ride Guide
| Downhill | ||
| Freeride | ||
| Enduro | ||
| All Mountain | ||
| Trail | ||
| XC Racing | ||
| Bike Packing | ||
| Gravel |
