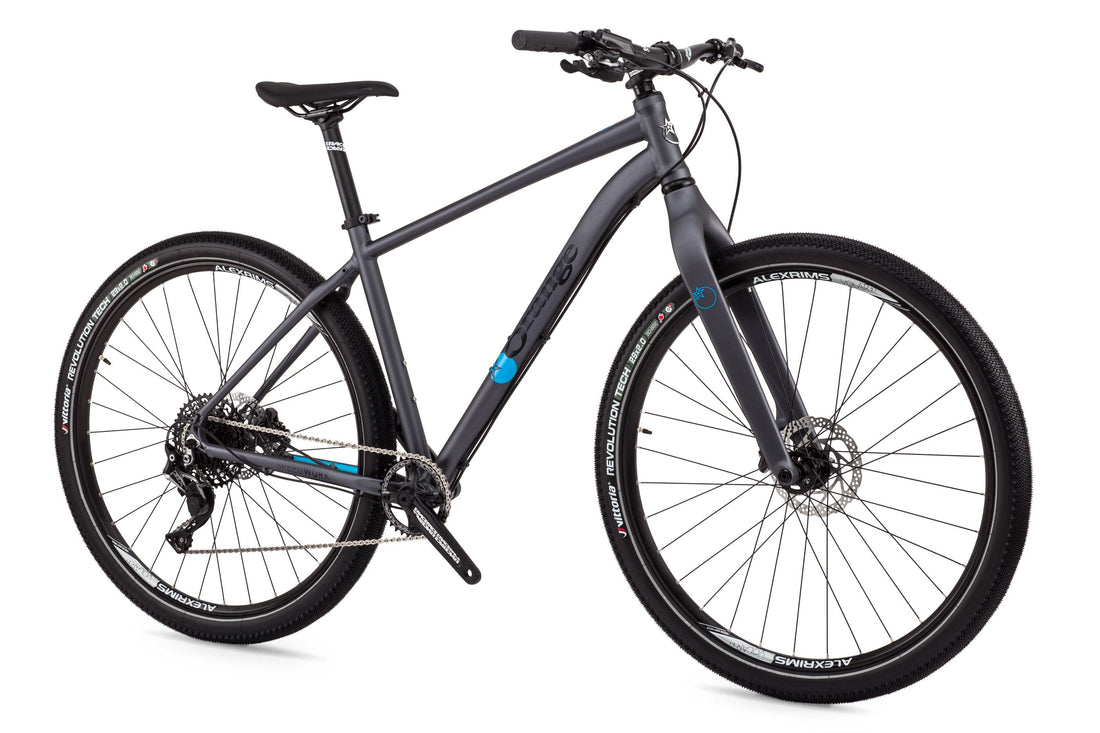

Speedwork S - 2019
Overview
Why the Speedwork S?
- Lightweight custom butted 6061-T6 OS aluminium designed in Britain
- Full Carbon Fork with 15 mm bolt-through axle
- 5 year frame warranty
- Mudguard compatible
- Shimano Deore hydraulic disc brakes
- Built for British SubUrban riding, fast on and light off road speed machine for all your cross-over needs
- MTB comfort and control with road bike speed
- 700c or 29" ready, compatible with ETRTO 622mm tyres from 35mm to 2"
- 1 x 11 speed drivetrain with 11-42 range for a full spread or ratios while staying clean and simple
THE 29er ‘SUBURBAN’ MTB
A week is a long time to go without a dash of Orange, so we created the Speedwork; a super-fast everyday rigid MTB-come-sub-commuter that's far beyond a hybrid. The Speedwork defies being labelled; a breathtaking blend of mountain bike comfort and road bike speed is what this bike is all about, with a healthy dose of fun thrown in.
Built around our legendary Clockwork frame, the Speedwork offers all the comfort and control of a mountain bike, but it has rigid forks, 29” wheels and fast-rolling 2.0 tyres for flat-out speed on man-made terrain. Reliable componentry means minimal servicing even when you’re clocking up commuter miles.
A bike this good isn’t just a weekday workhorse though. For urban exploring, canal-side cruising or just relishing the thrill of riding fast, the Speedwork totally nails it. Of all the Oranges in your quiver, this could be the one you ride most.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
Clockwork 120 Geometry
| 6061-T6 Custom Butted Aluminium | |||
| Frame Size | M | L | XL |
| Seat Tube | 18"/45cm | 19"/48cm | 20"/51cm |
| A. Head Angle | 70° | 70° | 70° |
| B. Seat Angle | 73.5° | 73.5° | 73.5° |
| C. Top Tube | 583 | 599 | 607 |
| D. Effective TT | 600 | 620 | 630 |
| E. BB Height (axle diff) | -70 | -70 | -70 |
| E. BB Height (from ground) | 301 | 301 | 301 |
| F. Chainstay | 445 | 445 | 445 |
| G. Head Tube | 130 | 140 | 150 |
| H. Wheelbase | 1106 | 1126 | 1137 |
| J. Reach | 412 | 428 | 435 |
| K. Stack | 642 | 651 | 660 |
| Front Centre | 670 | 690 | 701 |
| Stem Length | 50 | 50 | 50 |
| Standover | 770 | 790 | 802 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from axle with a 735mm Ø tyre. |
|||
technical Info
| Rear Hub | 135 mm | ||
| Front Hub | 100 mm x 15 mm bolt through | ||
| Seatpost Ø | 30.9 mm | ||
| Front Derailleur | Band | ||
| BB Shell | 68 mm | ||
| 1.1/8" Headset | Upper: ZS44/28.6 Lower: ZS44/30 |
||
