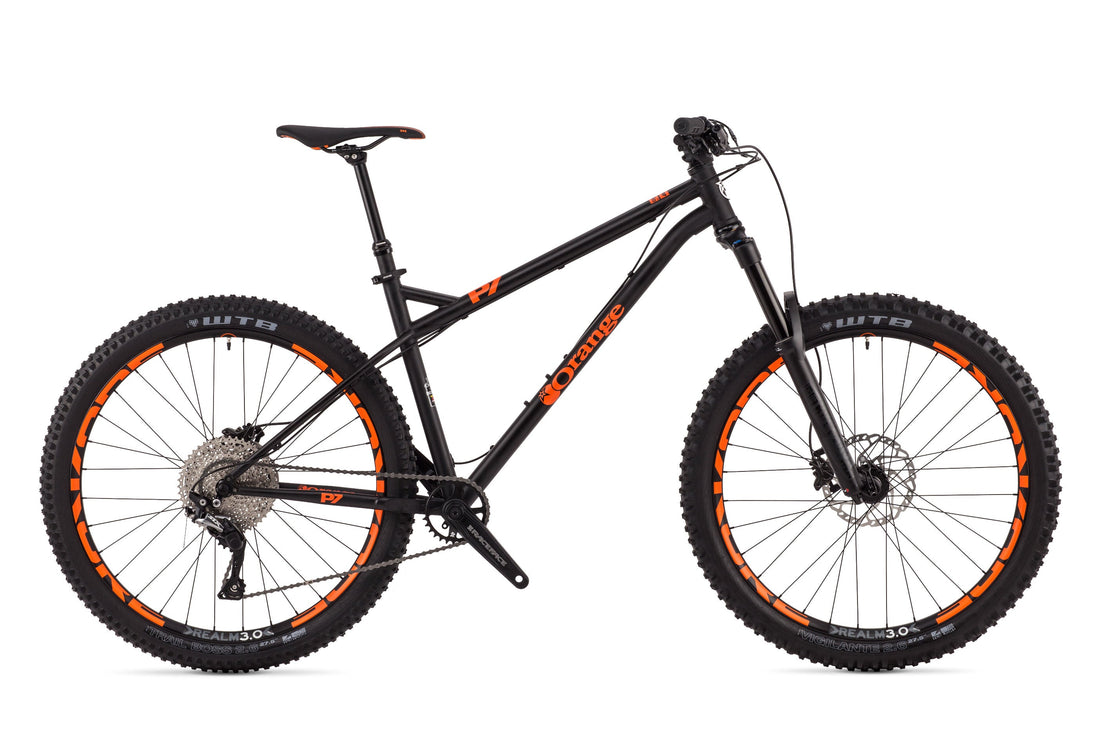

P7 S - 2019

P7 S - 2019

Overview

Why the P7?



  • Designed in Britain
  • Five year frame warranty
  • Custom butted Reynolds 525 CroMo Tubeset
  • 27.5" wheels
  • 150mm travel fork
  • Internal dropper routing
  • Generous mud clearance



Steel Yourself - The P7 is one wild ride

The legendary Orange hardcore steel hardtail has gone through a few changes over the years and after a brief hiatus it's back with new geometry, a new Reynolds 525 tubeset and a new wheel size, but with the same attitude that'll see it stood outside the headmaster's office on the first day of trail school.

This new P7 has rebel written all over it; long top tube geometry, a slacker head-angle even that the rowdy Crush, this bike means business. The whip and the spring of the CroMo chassis cannot be replicated, and once you 'get' steel, it's hard to go back to a frame with a less spirited ride. The P7 urges you to go faster, pedal harder and fly higher.

With frame features like the bolt through rear axle for rigidity, optional hose and cable bosses where you want then, chunky tyre clearances, and internal dropper seatpost routing the P7 is ready to rock and roll.

Back by popular demand in limited numbers, you may have to join the queue - Steel Yourself.

Specs & Options

SIZES AND COLOURS

Sizes
S   M   L   XL
Colour
Satin Black

Select a frame size to choose colour

Decals
Orange Decals

Frame and Fork

Reynolds 525. Wheel Size: 27.5.

Swingarm
Bolt Type Allen Key Head (Boost 148mm Hub)
Rear Shock
N/A
Headset
FPD 44mm
Fork
RockShox Revelation RC 150mm 27.5

Drivetrain

Shifters
Shimano SLX 11spd
Cassette
Sunrace CSM8 11spd 11-46T
Bottom Bracket
Race Face
Crankset
Race Face Ride Cinch
Rear Mech
Shimano SLX 11spd Shadow Plus
Chain
SRAM PC1110
Chain Device

Wheel and Tyres

Wheelset
Kore Realm 3.0 on Formula 29
Tyres
WTB Vigilante 2.6 and Trail Boss 2.6 27.5"

Braking

Brakes
Shimano MT500 180/180

Finishing Kit

Handlebars
Kore Durox M35 780mm
Grips
Strange 130 Lock - On Grips Black
Pedals
Kore Rivera Thermo
Seatpost
Kore Dropper
Seat Clamp
Strange QR
Stem
Kore Cubix M35 x 50mm
Saddle
Kore Conex

Geometry & Tech Info

2019 P7 geometry
P7 Geometry
Reynolds 525 Tubing
Frame Size S M L XL
Seat Tube Length 15" 17" 18" 20"
A. Head Angle 65° 65° 65° 65°
B. Seat Angle 74° 74° 74° 74°
C. Top Tube 606 617 632 638
D. Effective TT 600 620 640 660
E. BB Height (axle diff) -48 -48 -48 -48
E. BB Height (from ground) 301 301 301 301
F. Chainstay 430 430 430 430
G. Head Tube 100 110 120 130
H. Wheelbase 1167 1187 1207 1227
J. Reach 422 440 456 475
K. Stack 619 630 640 646
Standover 651 686 700 740
Stem Length 50 50 50 50
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 705 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
150 mm 150 mm 140 mm
  Single crown   Triple Clamp
Rear Hub 148mm x 12mm Boost
Seatpost Ø 30.9 mm
Seat Clamp Ø 34.9 mm
BB Shell 73mm ISCG 05
Tapered Headset Upper: ZS44/28.6
Lower: EC44/40
Ride Guide
Yes Downhill 4.0 out of 5 stars
Yes Freeride 4.0 out of 5 stars
Yes Enduro 5.0 out of 5 stars
Yes All-Mountain 4.0 out of 5 stars
Yes XC Trail 4.0 out of 5 stars
Yes Adventure 4.0 out of 5 stars
Yes Touring 4.0 out of 5 stars
Yes XC Racing 4.0 out of 5 stars
