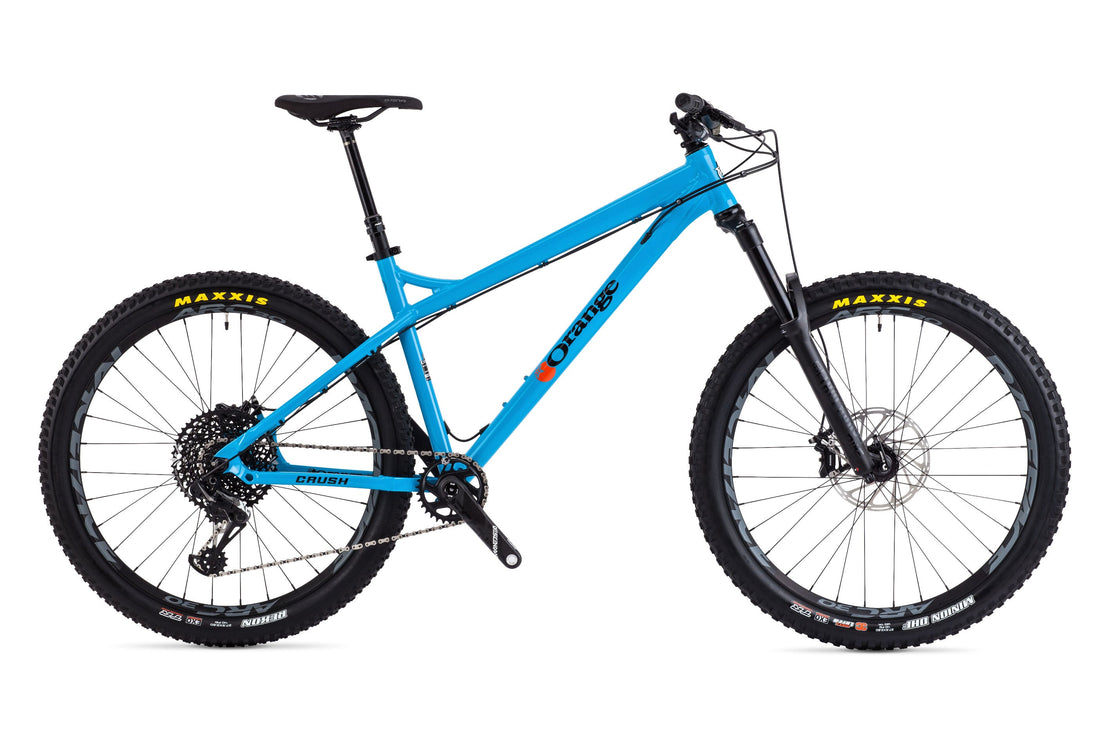

Crush RS - 2019
Overview
Why the Crush?
- Frame designed in Britain
- 5 year frame warranty
- Custom butted 6061-T6 aluminium
- Frame geometry for 150mm travel fork
- Bolt through 12x148 Boost hub spacing
- 27.5 inch wheels
- Internal dropper routing
- 73mm BB Shell with ISCG 05 tabs
- New Yoked chainstay design gives clearance for 2.6 tyres
- Minimal design cable & hose bosses
The Orange Crush is a bike you don't want to mess with. It's loved and revered, with award winning performance. It's the definitive aluminium hardcore hardtail.
The frame is bang on point, the rear triangle features a 148
Boost bolt-through axle, giving unparalleled stability to what is already a strong and rigid chassis. The 2019 model's geometry has been tweaked with a 64° head angle which, matched with the Crush’s long top tube design, adds an extra degree of confidence in the handling. With a short 50mm stem the rider is right where they need to be for direct control and weight distribution. Short chainstays make climbing as sweet as ever for a long-forked hardtail, those stays now reshaped with a CNCed yoke on the chainstay to allow plenty of clearance for a more than chunky 2.6 tyre.
The Crush’s unshakeable attitude is as strong as ever. Built tough to be ridden hard, where it really excels, on the rough stuff.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
Crush Geometry
| 6061-T6 Custom Butted OS Aluminium Tube | ||||
| Frame Size | S | M | L | XL |
| Frame Size | S | M | L | XL |
| Seat Tube Length | 15" | 17" | 18" | 20" |
| A. Head Angle | 64° | 64° | 64° | 64° |
| B. Seat Angle | 73.5° | 73.5° | 73.5° | 73.5° |
| C. Top Tube | 605 | 615 | 630 | 642 |
| D. Effective TT | 600 | 620 | 640 | 660 |
| E. BB Height (axle diff) | -48 | -48 | -48 | -48 |
| E. BB Height (from ground) | 310 | 310 | 310 | 310 |
| F. Chainstay | 430 | 430 | 430 | 430 |
| G. Head Tube | 100 | 110 | 120 | 130 |
| H. Wheelbase | 1178 | 1200 | 1221 | 1243 |
| J. Reach | 418 | 436 | 453 | 470 |
| K. Stack | 613 | 622 | 629 | 640 |
| Standover | 652 | 675 | 705 | 740 |
| Stem Length | 50 | 50 | 50 | 50 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 710 mm Ø tyre. | ||||
technical Info
| fork travel | |||||||||
|
|||||||||
| Single crown | Triple Clamp | ||||||||
| Rear Hub | 148x12mm Bolt-through | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Seatclamp Ø | 34.9 mm | ||||||||
| BB Shell | 73mm ISCG 05 | ||||||||
| Tapered Headset | Upper: ZS44/28.6 Lower: EC44/40 |
||||||||
Ride Guide
| Yes | Downhill | 4.0 out of 5 stars |
| Yes | Freeride | 4.0 out of 5 stars |
| Yes | Enduro | 5.0 out of 5 stars |
| Yes | All-Mountain | 4.0 out of 5 stars |
| Yes | XC Trail | 4.0 out of 5 stars |
| Yes | Adventure | 4.0 out of 5 stars |
| Yes | Touring | 4.0 out of 5 stars |
| Yes | XC Racing | 4.0 out of 5 stars |
