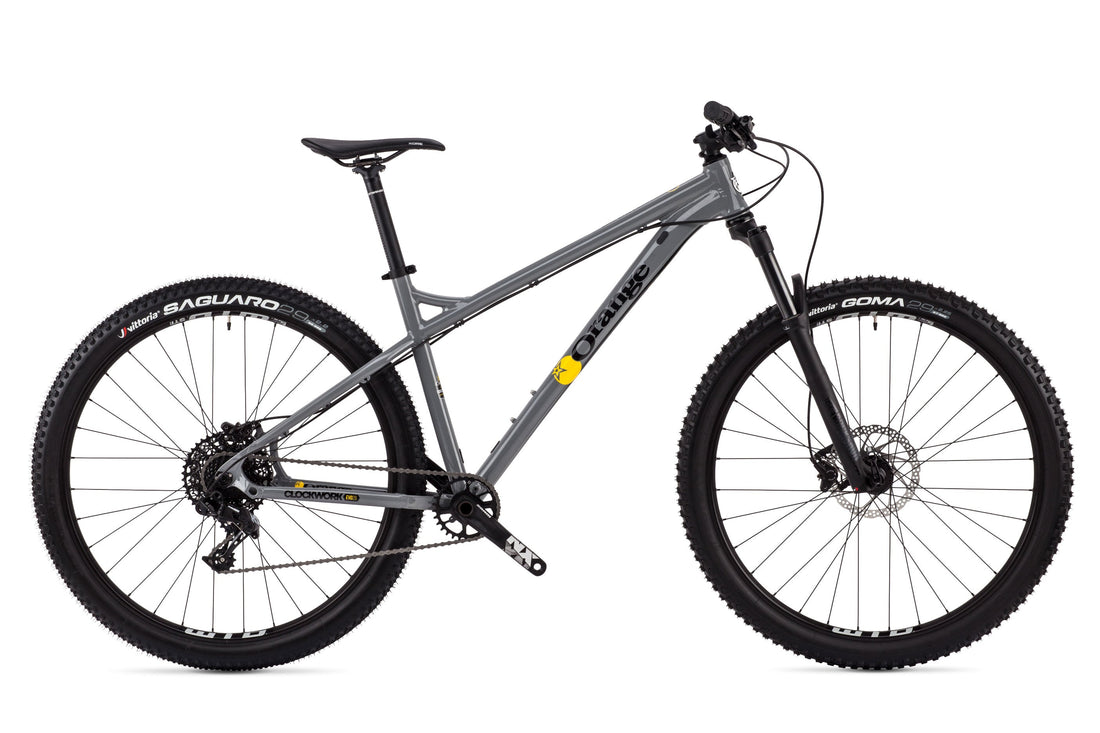

Clockwork Evo 29 comp - 2019
Overview
Why the Clockwork EVO 29?
- Designed in Britain
- Five year frame warranty
- Custom butted 6061-T6 aluminium
- 29" wheels
- 120mm travel fork
- Internal dropper seatpost
-
Bolt through rear 12 x 148 boost hub spacing
- Internal dropper seatpost compatible
- Generous tyre clearance
Prefer 27.5 inch wheels? Try the Clockwork EVO.
The new Clockwork EVO 29 pushes the 29er hardtail into the hardcore arena. Running a 120mm travel fork, this one's for the fast and loose big wheel fans out there.
Bigger brother to the EVO, the Clockwork EVO 29 is a degree slacker in its head angle to tune the geometry for a more aggressive and capable longer travel fork.
The EVO 29 shares the same tidy frame features as the 27.5:
neat external routing that tucks the cables cleanly under the top tube and internal stealth cable routing for a dropper post are both nice touches. The sturdy 12x148mm Boost bolt-though rear axle adds strength and rigidity for the 29er wheelset.
Trail centre hardtail, or out and out explorer, it’s up to you. But however you choose to ride the Clockwork EVO 29, it will be a more than worthy trail buddy.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
Clockwork Evo 29 Geometry
| 6061-T6 Custom Butted Aluminium | |||
| Frame Size | M | L | XL |
| Seat Tube | 17" | 18" | 20" |
| A. Head Angle | 67° | 67° | 67° |
| B. Seat Angle | 74° | 74° | 74° |
| C. Top Tube | 631 | 642 | 653 |
| D. Effective TT | 630 | 650 | 670 |
| E. BB Height (axle diff) | -58 | -58 | -58 |
| E. BB Height (from ground) | 312 | 312 | 312 |
| F. Chainstay | 450 | 450 | 450 |
| G. Head Tube | 110 | 110 | 120 |
| H. Wheelbase | 1190 | 1210 | 1230 |
| J. Reach | 445 | 465 | 483 |
| K. Stack | 645 | 645 | 654 |
| Stem Length | 50 | 50 | 50 |
| Standover | 687 | 706 | 745 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 740 mm Ø tyre. | |||
technical Info
| fork travel | |||||||||
|
|||||||||
| Single crown | Triple Clamp | ||||||||
| Rear Hub | 12 x 148mm | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Seat Clamp Ø | 34.9 mm | ||||||||
| BB Shell | 73mm ISCG05 | ||||||||
| 1.1/8" Headset | Upper: ZS44/28.6 Lower: EC44/40 |
||||||||
