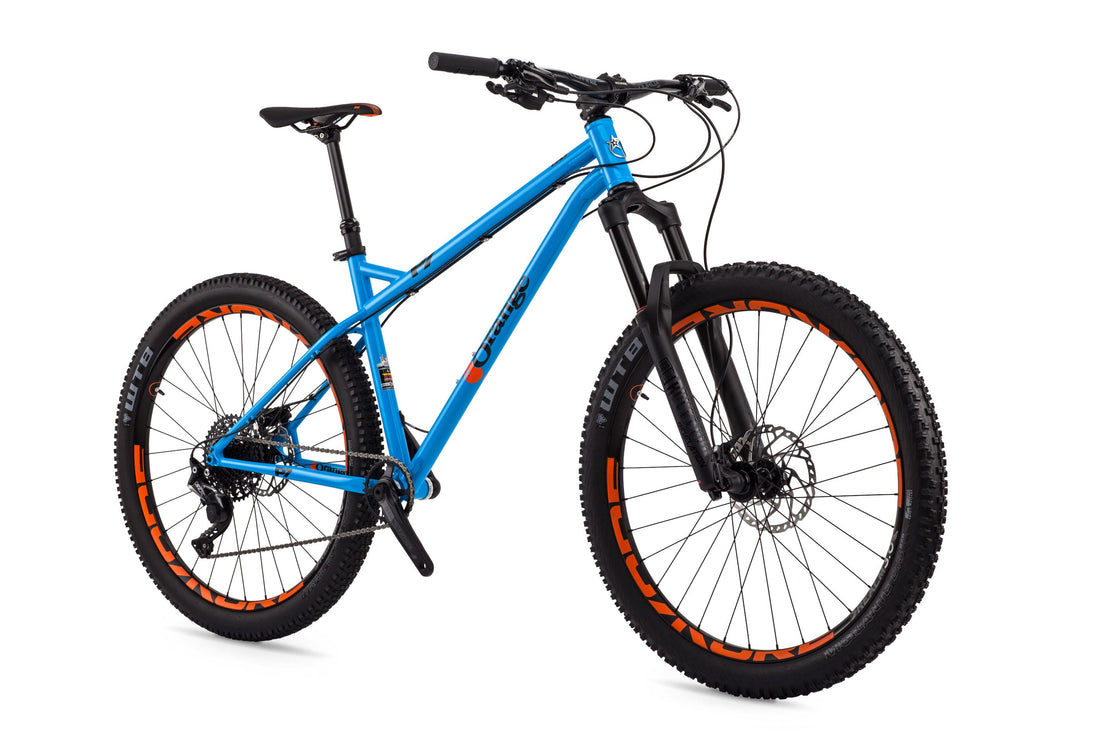

P7 S - 2018

P7 S - 2018

Overview

Why the P7 S?



  • Designed in Britain
  • Five year frame warranty
  • Custom butted Reynolds 525 CroMo Tubeset
  • 27.5" wheels
  • RockShox Revelation 150 RL Solo Air Boost
  • Shimano SLX 1x11 drivetrain
  • Race Face Ride Single 30T Narrow Wide Crankset
  • Shimano brakes
  • Tough Kore Components finishing kit
  • Internal dropper routing & Seatpost options available
  • Generous mud clearance
  •

With a 150mm RockShox Yari, single ring chainset and Shimano 1x11 drivetrain the P7 S is built to charge in the only the way a Steel hardtail knows how..



Steel Yourself - The P7 is one wild ride

The legendary Orange hardcore steel hardtail has gone through a few changes over the years and after a brief hiatus it's back with new geometry, a new Reynolds 525 tubeset and a new wheel size, but with the same attitude that'll see it stood outside the headmaster's office on the first day of trail school.

This new P7 has rebel written all over it; long top tube geometry, a slacker head-angle even that the rowdy Crush, this bike means business. The whip and the spring of the CroMo chassis cannot be replicated, and once you 'get' steel, it's hard to go back to a frame with a less spirited ride. The P7 urges you to go faster, pedal harder and fly higher.

With frame features like the bolt through rear axle for rigidity, optional hose and cable bosses where you want then, chunky tyre clearances, and internal dropper seatpost routing the P7 is ready to rock - Steel Yourself.

Specs & Options

SIZES AND COLOURS

Sizes
S   M   L   XL
Colour
Gloss Cyan Blue

Select a frame size to choose colour

Decals
Orange/Black Decals

Frame and Fork

Reynolds 525. Wheel Size: 27.5.

Fork
RockShox Revelation RC 150mm 27.5
Swingarm
Bolt Type Allen Key Head 12 x 174mm (Boost 148mm Hub)
Headset
FPD 44mm For Tapered Steerer

Drivetrain

Rear Mech
Shimano SLX Shadow Plus 11spd
Chain
SRAM PC1110 11spd
Shifters
Shimano SLX 11spd
Cassette
SRAM PC-1130 11-42 11spd
Bottom Bracket
Race Face
Crankset
Race Face Aeffect DM30t Steel Ring

Wheel and Tyres

Wheelset
Joytech + Kore Realm 3.0 27.5
Tyres
WTB Vigilante 2.3 / Trail Boss 2.25

Braking

Brakes
Shimano MT500 180/180

Finishing Kit

Stem
Kore Cubix 50mm x M35
Saddle
Kore Conex
Handlebars
Kore Durox 780mm M35
Grips
Strange 130 Single Lock-On Black
Pedals
Kore Rivera Thermo
Seatpost
Kore Dropper 150mm
Seat Clamp
Strange QR

Geometry & Tech Info

2018 P7 geometry
P7 Geometry
Reynolds 525 Tubing
Frame Size S M L XL
Seat Tube Length 15" 17" 18" 20"
A. Head Angle 65° 65° 65° 65°
B. Seat Angle 74° 74° 74° 74°
C. Top Tube 606 617 632 638
D. Effective TT 600 620 640 660
E. BB Height (axle diff) -48 -48 -48 -48
E. BB Height (from ground) 301 301 301 301
F. Chainstay 430 430 430 430
G. Head Tube 100 110 120 130
H. Wheelbase 1167 1187 1207 1227
J. Reach 422 440 456 475
K. Stack 619 630 640 646
Standover 651 686 700 740
Stem Length 50 50 50 50
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 705 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
150 mm 150 mm 140 mm
  Single crown   Triple Clamp
Rear Hub 148mm x 12mm Boost
Seatpost Ø 30.9 mm
Front Derailleur None
BB Shell 73mm ISCG 05
Tapered Headset Upper: ZS44/28.6
Lower: EC44/40
Ride Guide
Yes Downhill 4.0 out of 5 stars
Yes Freeride 4.0 out of 5 stars
Yes Enduro 5.0 out of 5 stars
Yes All-Mountain 4.0 out of 5 stars
Yes XC Trail 4.0 out of 5 stars
Yes Adventure 4.0 out of 5 stars
Yes Touring 4.0 out of 5 stars
Yes XC Racing 4.0 out of 5 stars
