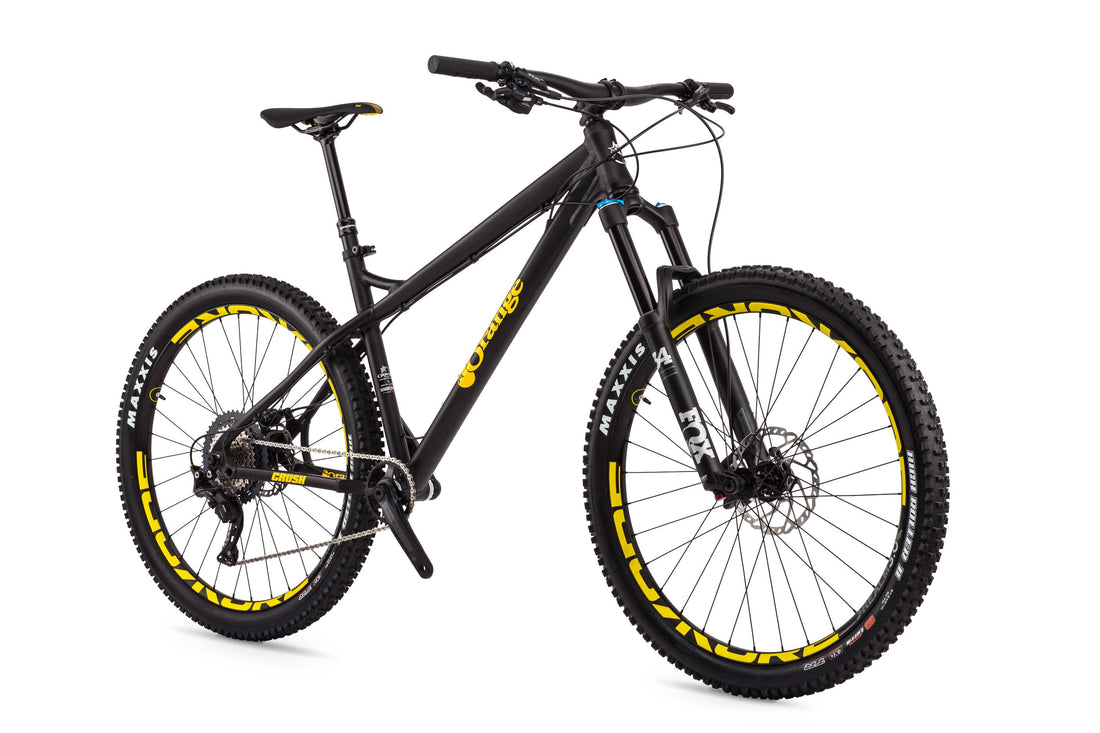

Crush Pro - 2018

January 14, 2026

Why the Crush Pro?

Designed in Britain
Five year frame warranty
Custom butted 6061-T6 aluminium
27.5" wheels
KS Cruxi Internal Dropper Seatpost
Generous mud clearance
Fox Performance 34 Float 150mm 27.5 Boost Fork
Race Face/Shimano XT/SLX 1 x 11spd Drivetrain
Kore Realm 3.0 Tubeless-ready Wheelset
Race Face Aeffect 150mm Dropper Post
Shimano SLX/XT 1x11 drivetrain
Race Face Aeffect Single 30T Narrow Wide Crankset
Shimano brakes
Race Face Components cockpit set-up

The Orange Crush is a bike you don't want to mess with. It's loved and revered, with award winning performance, it's the definitive aluminium hardcore hardtail. So for 2018, with the exception of a push to 148 boost spacing and a slight reshape of the stays to allow big volume tyre fans to satisfy their cravings, we've left it well alone.

The geometry is bang on point, the rear triangle features a bolt-through axle, giving unparalled stability to what is already a rigid design. The confident handling 65° head angle along with the Crush’s long top tube design that adds an extra few millimetres means, size for size, a 50mm stem puts the rider right where they need to be for direct input and weight distribution. Short chainstays make climbing as sweet as ever for a long forked hardtail, those stays now reshaped to allow clearance for a more than chunky 2.6 tyre.

The Crush’s unshakeable attitude is as strong as ever. Built tough to be ridden hard, where it really excels, on the rough stuff.

Specs & Options

SIZES AND COLOURS

Sizes

S M L XL

Colour

Satin Black

Frame and Fork

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5.

Swingarm

Bolt Type Allen Key Head 12 x 174mm (Boost 148mm Hub)

Headset

FPD 44mm For Tapered Steerer

Fork

Fox Performance 34 Float 150mm 27.5

Drivetrain

Bottom Bracket

Race Face

Crankset

Race Face Aeffect DM30t Steel Ring

Rear Mech

Shimano XT Shadow Plus 11spd

Chain

KMC 11spd

Shifters

Shimano SLX 11spd

Cassette

Shimano SLX 11-46t 11spd

Wheel and Tyres

Wheelset

Joytech + Kore Realm 3.0 27.5

Tyres

Maxxis High Roller II 2.4 3c Exo TR / 2.3 Exo TR 2

Braking

Brakes

Shimano SLX 180/160

Finishing Kit

Seatpost

Race Face Aeffect Dropper 150mm

Seat Clamp

Strange QR

Stem

Race Face Ride Stealth 50mm x M35

Saddle

SDG Fly MTN Steel Rail Black/Grey

Handlebars

Race Face Chester Stealth 780mm

Grips

Strange 130 Single Lock-On Black

Geometry & Tech Info

Crush Geometry

6061-T6 Custom Butted OS Aluminium Tube
Frame Size	S	M	L	XL
Frame Size	15"	17"	18"	20"
A. Head Angle	65°	65°	65°	65°
B. Seat Angle	73.5°	73.5°	73.5°	73.5°
C. Top Tube	607	615	625	640
D. Effective TT	600	620	640	660
E. BB Height (axle diff)	-48	-48	-48	-48
E. BB Height (from ground)	310	310	310	310
F. Chainstay	430	430	430	430
G. Head Tube	100	110	120	130
H. Wheelbase	1166	1188	1209	1231
J. Reach	416	434	452	468
K. Stack	619	628	634	646
Standover	652	675	705	740
Stem Length	50	50	50	50
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 710 mm Ø tyre.

technical Info

fork travel

OPTIMUM	MAXIMUM	MINIMUM
150 mm	150 mm	140 mm

Single crown

Triple Clamp

Rear Hub

148x12mm Bolt-through

Seatpost Ø

30.9 mm

Seatclamp Ø

34.9 mm

Front Derailleur

E-Type

BB Shell

73mm ISCG 05

Tapered Headset

Upper: ZS44/28.6
Lower: EC44/40

Ride Guide

Yes	Downhill	4.0 out of 5 stars
Yes	Freeride	4.0 out of 5 stars
Yes	Enduro	5.0 out of 5 stars
Yes	All-Mountain	4.0 out of 5 stars
Yes	XC Trail	4.0 out of 5 stars
Yes	Adventure	4.0 out of 5 stars
Yes	Touring	4.0 out of 5 stars
Yes	XC Racing	4.0 out of 5 stars

Bike Sizing Guidelines

5'4" — 5'7"

5'6" — 5'10"

5'9" — 6'1"

6'0" — 6'5"

Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
