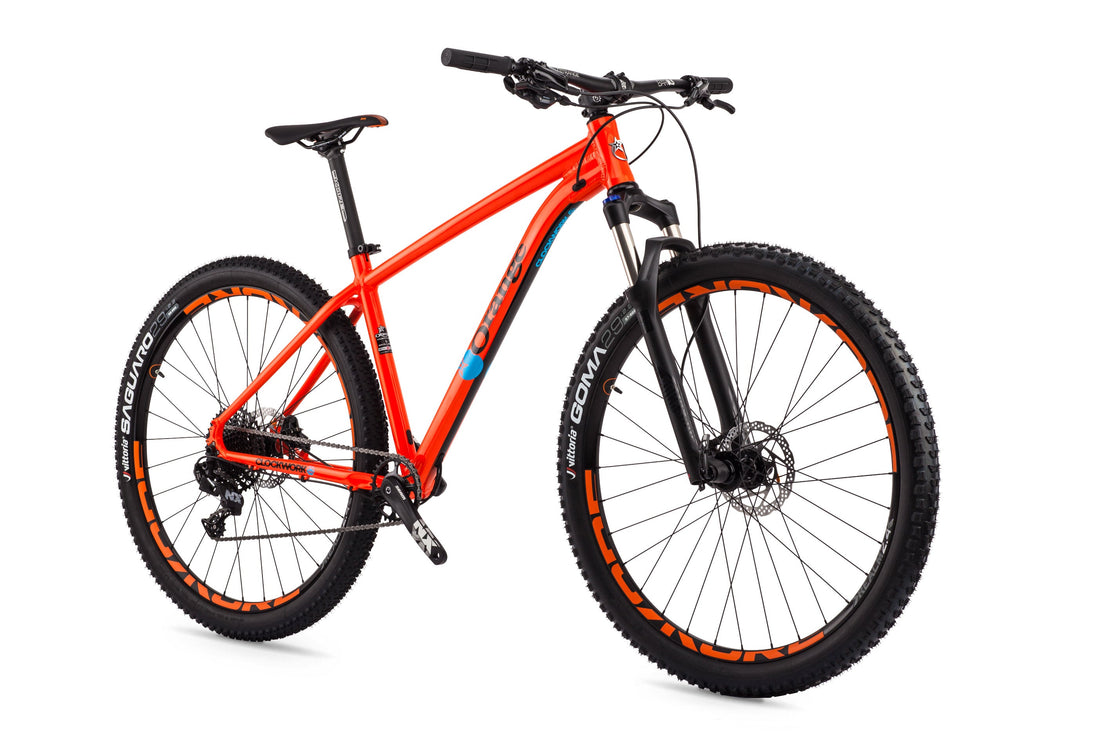

Clockwork 109 - 2018
Overview
Why the Clockwork 109?
- Frame designed in Britain
- 5 year frame warranty
- Custom butted 6061-T6 aluminium
- 29 inch wheels
- Geometry tailored to a 100mm travel fork
- QR bolt through 12 x 148 boost hub spacing
- Internal dropper seatpost compatible
- Generous tyre clearance
- RockShox Judy Silver 100mm 29 T/S 15mm Maxle fork
- SRAM NX 1 x 11spd Drivetrain
- Kore Realm 2.4 Custom Wheelset
- Kore & Strange Components Finishing Kit
The question with the Clockwork is, why not? Whether it’s as an inspiring introduction to mountain biking or as a second, or even third bike for the enthusiast, the Clockwork is all that’s great about Orange. This 29er model features a SRAM 11 speed drivetrain with 120mm RockShox Judy Silver Forks offer comfort and durability to keep you riding for longer.
The Orange Clockwork has grown into more of a family than a solitary model. A family of bikes where capability is key. These siblings bring different rolls to their functional heritage.
Let's start with the new Clockwork 109, a versatile 100 mm travel, 29 inch wheeled, do it all aluminium hardtail.
The frame's confident performance geometry with solid features like the bolt through 148 boost rear and internal routing show this bike means business.
Specced with the new RockShox Judy fork with lockout and adjustable rebound, with a SRAM NX drivetrain that brings fuss-free shifting with a wide gear range on a clean and tidy
1x11 set-up.
Ready for anything, be that bikepacking or ripping round the local trails, this Clockwork will inspire you to just get out and ride.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
Clockwork 100 Geometry
| 6061-T6 Custom Butted Aluminium | ||||
| Frame material: 6061-T6 Custom Butted Aluminium | ||||
| Frame Size | M | L | XL | |
| Seat Tube Length | 17" | 18" | 20" | |
| A. Head Angle | 68° | 68° | 68° | |
| B. Seat Angle | 73° | 73° | 73° | |
| C. Top Tube | 600 | 618 | 634 | |
| D. Effective TT | 620 | 640 | 660 | |
| E. BB Height (axle diff) | -60 | -60 | -60 | |
| E. BB Height (from ground) | 309 | 309 | 309 | |
| F. Chainstay | 450 | 450 | 450 | |
| G. Head Tube | 110 | 120 | 130 | |
| H. Wheelbase | 1153 | 1174 | 1195 | |
| J. Reach | 430 | 445 | 466 | |
| K. Stack | 630 | 640 | 648 | |
| Stem Length | 50 | 50 | 50 | |
| Standover | 714 | 750 | 788 | |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from axle. |
||||
technical Info
| fork travel | |||||||||
|
|||||||||
| Rear Hub | 12 x 148MM | ||||||||
| Rear Axle | Length-180mm, Thread-20mm, Pitch-M12X1.75 (Boost) | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Front Derailleur | Band | ||||||||
| BB Shell | 68 mm | ||||||||
| 1.1/8"Headset | Upper: ZS44/28.6 Lower: EC44/40 |
||||||||
Ride Guide
| Yes | Downhill | 4.0 out of 5 stars |
| Yes | Freeride | 4.0 out of 5 stars |
| Yes | Enduro | 5.0 out of 5 stars |
| Yes | All-Mountain | 4.0 out of 5 stars |
| Yes | XC Trail | 4.0 out of 5 stars |
| Yes | Adventure | 4.0 out of 5 stars |
| Yes | Touring | 4.0 out of 5 stars |
| Yes | XC Racing | 4.0 out of 5 stars |
Bike Sizing Guidelines
Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
