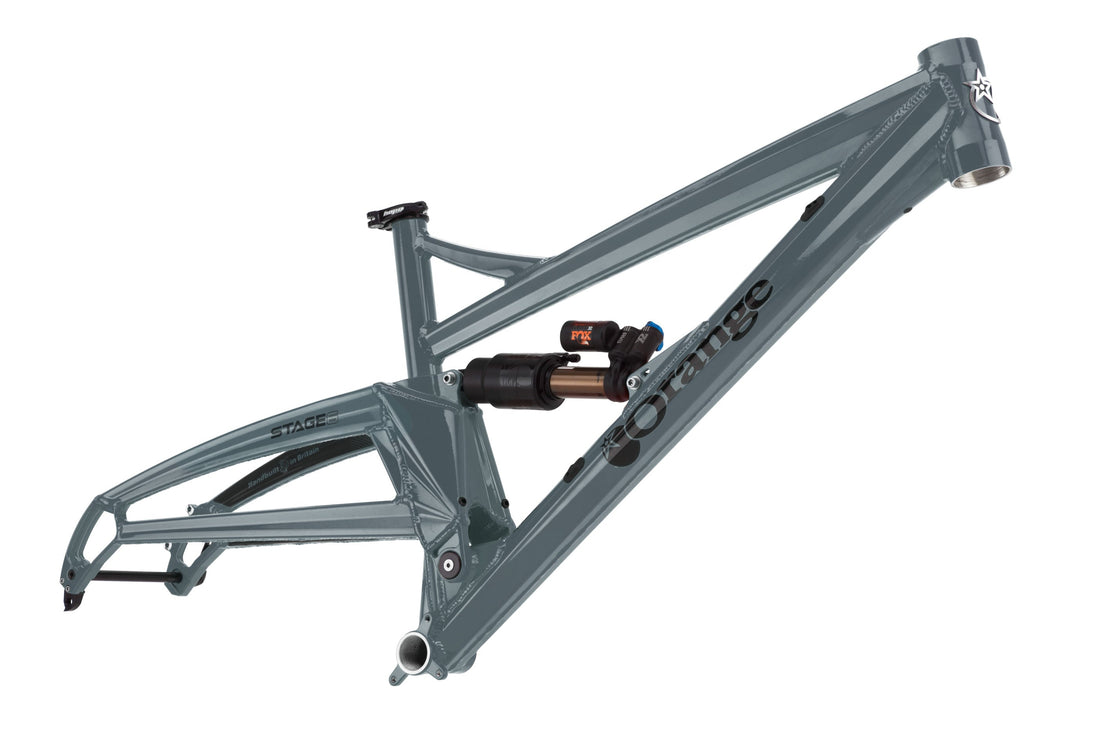

Stage 6 Frame - 2017
Overview
Why the Stage 6 LE?
- Handbuilt in Britain
- 5 year frame warranty
- Unique monocoque aluminium and tubing chassis
- Single pivot suspension for the optimum performance, efficiency and reliability
- 29" wheels
- 160mm Front/150mm rear travel
- RockShox Monarch Plus RC3 DB
- Enduro race honed geometry
- Increased length toptube and wheelbase coupled to a shorter stem for high-speed stability
Redefining the big travel 29er
When the only thing that matters is flat-out performance, the all-new Stage 6 nails it. Redefining the typical terrain of the 29er, this is a bike made for riding hard and racing the best in the world, anywhere in the world.
Long, slack, and with a trail-busting 160/150 travel, the Stage 6 goes wherever you want but aims straight for the podium. Lateral stiffness and low standover help its ability to hit extreme terrain fast. Meanwhile, refined single-pivot suspension delivers great pedaling efficiency, not to mention super-smooth and trouble-free riding for more of the season. Internal routing, a 5-year warranty and 10 stunning colour options all help seal the deal.
It’s simple: just when you’d got your head around the natural habitat of 29ers, the Stage 6 explodes it. One word of warning – this is a lot of bike that rewards skill and confidence, and that’s why guides and racers love it. If you’re ready for the ride of your life, step up now.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 150.
Finishing Kit
Geometry & Tech Info
STAGE 6 GEOMETRY
| Monocoque/6061-T6 Reynolds Custom Butted Aluminium tubing | |||
| Frame Size | M | L | XL |
| Seat Tube Length | 17" | 18" | 20" |
| A. Head Angle | 65.5° | 65.5° | 65.5° |
| B. Seat Angle (Actual) | 72° | 72° | 72° |
| B. Seat Angle (Effective) | 74.5° | 74.5° | 74.5° |
| C. Top Tube | 594 | 613 | 632 |
| D. Top Tube (effective) | 620 | 640 | 660 |
| E. BB Height (from ground) | 335 | 335 | 335 |
| BB height (from axles | -35 | -35 | -35 |
| F. Chainstay | 450 | 450 | 450 |
| G. Head Tube | 100 | 110 | 120 |
| H. Wheel base | 1223 | 1245 | 1266 |
| J. Reach | 444 | 462 | 479 |
| K. Stack | 633 | 643 | 652 |
| T. Rear Travel | 150 | 150 | 150 |
| Standover | 733 | 744 | 797 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre. | |||
technical Info
| fork travel | |||||||||
|
|||||||||
| Shock Length | 200 mm x 57 mm | ||||||||
| Rear Hub | 148 mm x 12mm | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Seatclamp Ø | 34.9 mm | ||||||||
| Front Derailleur | N/A | ||||||||
| BB Shell | 73 mm ISCG05 | ||||||||
| Tapered Headset | Upper: ZS49/28.6 Lower: EC49/40 |
||||||||
Ride Guide
| Yes | Downhill | 0 out of 5 stars |
| Yes | Freeride | 1 out of 5 stars |
| Yes | Enduro | 5.0 out of 5 stars |
| Yes | All-Mountain | 4.0 out of 5 stars |
| Yes | XC Trail | 4.0 out of 5 stars |
| Yes | Adventure | 3.0 out of 5 stars |
| Yes | Touring | 1.0 out of 5 stars |
| Yes | XC Racing | 0 out of 5 stars |
Bike Sizing Guidelines
Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
Prices and Specifications are liable to change without notice.
