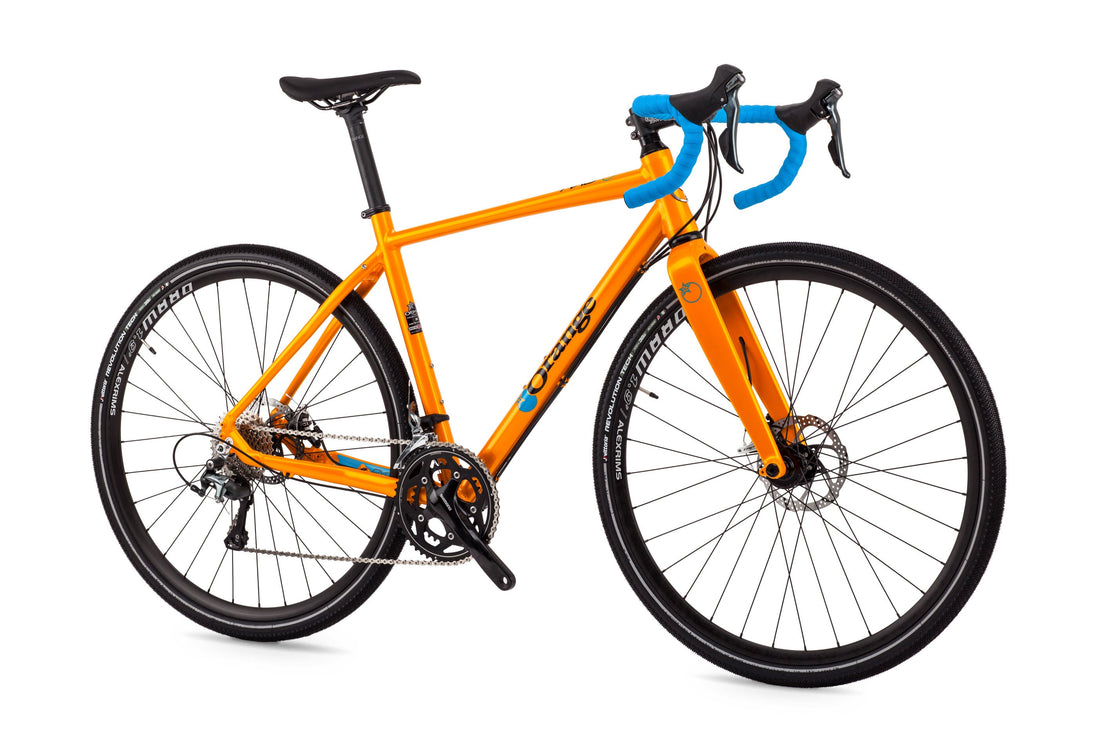

RX9 S - 2017
Overview
Why the RX9 S?
- Orange Road Cross Bike
- Lightweight frame designed in Britain
- 5 year frame warranty
- Carbon Fork 15mm Bolt Through
- Updated Frame with improved cable routing and 142x12mm bolt through dropouts
- Clearance for 42mm tyres
- Tiagra 2x10speed drivetrain
- TRP cable disc brakes
- Vittoria Revolution tyres perfect for road or gravel
- Strange Finishing Kit
- Mudguard compatible
More of an allrounder that the Pro version due to the double chainrings. Still rugged enough not to worry where roads or otherwise may lead.
DROP BARS, 700cc WHEELS, ROAD & GRAVEL
The RX9 is back, and it’s more fun, more versatile and basically better than ever. We’re not too keen on pigeonholes, so let’s just say this is the Orange for really taking flight, whether that’s on road, off road or even over your shoulder when you want to go wild.
10
Still built around a responsive but comfy double-butted alloy frame, for 2017 we listened to riders and improved the sizing by shortening the 30.9 seat tube. Meanwhile, a 142 x 12mm bolt-through rear and 15mm bolt-through fork stiffens things up for a sturdier feel and snappier handling. On top of that, the new chainstay disc mount keeps things tidy and accessible for running panniers and mudguards – great for going the distance whatever the weather.
Whether you’re razzing around or round-the-world bikepacking, the RX9 is right at home on the tarmac, towpath or tropical dirt roads. Thing is, it’s also built for the rough stuff and loves to prove it: a plucky little hero whose off-road talents are bigger than you think. A bike for adventures. An Orange through and through.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 700c.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
RX9 Geometry
| 6061-T6 Double Butted Aluminium | |||||
| Frame | S | M | L | XL | XXL |
| Frame Size (cm) | 50 | 52 | 54 | 56 | 58 |
| A. Head Angle | 70° | 70° | 70° | 70° | 70° |
| B. Seat Angle | 73° | 73° | 73° | 73° | 73° |
| C. Top Tube | 519 | 536 | 551 | 556 | 582 |
| D. Effective TT | 540 | 555 | 570 | 585 | 600 |
| E. Bottom Bracket Height | -70 | -70 | -70 | -70 | -70 |
| F. Chainstay | 435 | 435 | 435 | 435 | 435 |
| G. Head Tube | 125 | 140 | 160 | 180 | 195 |
| H. Wheelbase | 1024 | 1040 | 1056 | 1072 | 1088 |
| I. Front & Centre | 599 | 615 | 621 | 647 | 647 |
| J. Reach | 368 | 380 | 390 | 400 | 410 |
| K. Stack | 558 | 574 | 593 | 612 | 625 |
| Standover | 745 | 760 | 780 | 802 | 812 |
| Seat Tube Ø | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 |
| Unless otherwise indicated all measurements are in mm. Bottom bracket height measured from axle. |
|||||
RX9 Technical Info
| Rear Hub | 142 x 12 |
| Rear Axle | Length-160mm, Thread-20mm, Pitch-M12X1.5 |
| Front Hub | 100 x 15 |
| Front Axle | Length-152mm, Thread-20mm, Pitch-M12X1.5 |
| Seatpost Ø | 30.9 mm |
| Front Derailleur | Band |
| BB Shell | 68 mm |
| 1.1/8"Headset | Upper: ZS44/28.6 Lower: EC44/40 |
Bike Sizing Guidelines
Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
Prices and Specifications are liable to change without notice.
