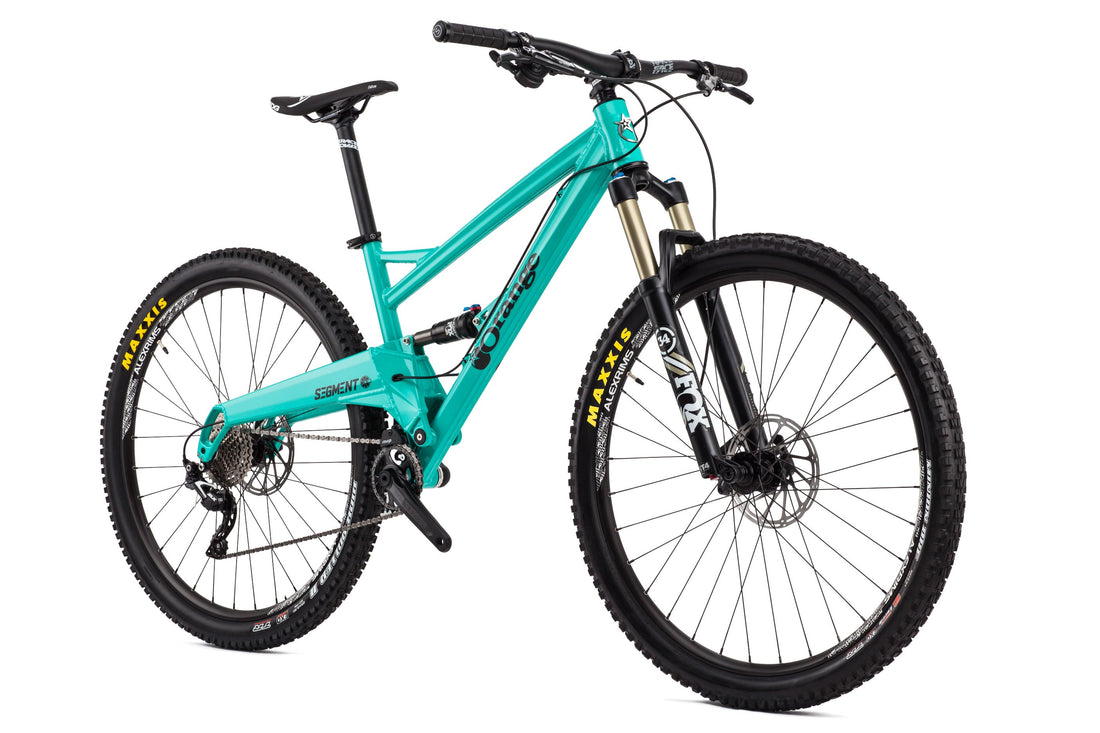

Segment Pro - 2016
Overview
Why the Segment Pro?
- New Lightweight Frame Handbuilt in Britain
- Five year frame warranty
- Fast rolling 29 Inch Wheels
- Generous tyre clearance
- 12x148mm Boost rear hub spacing for lateral stiffness and precise handling
- Suspension geometry for 120mm front/110mm rear
- Internal dropper post routing
- Fox 34 Performance 120mm
- Fox Float DPS EVOL Performance
- Race Face AEFFECT Direct Mount 30t Crankset
- SRAM DB5 Brakes 180mm Rotors
- Shimano 1x10 Drivetrain
- Formula Hubs & Alex MD23 Tubeless Ready Wheelset
With a Shimano SLX drivetrain easily upgradeable with the Hope 40T-Rex option and Fox suspension the Segment Pro is a solid base for any fast trail rider who digs the 29er wheel platform.
The Segment. Divides opinions. Conquers trails.
Designed to be the fastest all-rounder we could make, the Segment takes preconceptions about what is possible on a short travel bike and pulls them apart.
This is the 2nd generation Segment frame. Revisited, reshaped, and re-honed. All new CNCed frame parts, and thinner aluminium sheet shed the overall frame weight by around 400g. We added 6mm to the width of the pivot along with 148mm Boost rear hub spacing to provide even more lateral stiffness than the 1st generation model.
With the extra swing-arm breathing room, for generous tyre clearance.
As ever this 120/110mm travel 29er can ride way beyond its travel figure, a little more ramp-up in the frame's shock curve balances its inherent big-wheel unflappability with a taut and playful ride that encourages you to let it roll faster, both up and down. With its confidence inspiring low-slung stance and the kind of angles more often found on longer travel bikes, the Segment enjoys a fiercely loyal rapidly growing cult following. It is the short travel 29er that can, and does.
The Orange Segment, greater than the sum of its parts doesn’t even come close.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Monocoque/Reynolds Custom Butted Aluminium Tube. Wheel Size: 29. Rear wheel travel: 110.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
SEGMENT GEOMETRY
| Monocoque/6061-T6 Reynolds Custom Butted Aluminium tubing | |||
| Frame Size | M | L | XL |
| Seat Tube Length | 17" | 19" | 21" |
| A. Head Angle | 68° | 68° | 68° |
| B. Seat Angle (Actual) | 71.5° | 71.5° | 71.5° |
| B. Seat Angle (Effective) | 74° | 74° | 74° |
| C. Top Tube | 591 | 600 | 623 |
| D. Top Tube (effective) | 610 | 630 | 650 |
| E. BB Height (from ground) | 335 | 335 | 335 |
| BB height (from axles | -40 | -40 | -40 |
| F. Chainstay | 447 | 447 | 447 |
| G. Head Tube | 110 | 110 | 130 |
| H. Wheel base | 1167 | 1187 | 1208 |
| J. Reach | 435 | 455 | 468 |
| K. Stack | 612 | 612 | 631 |
| T. Rear Travel | 110 | 110 | 110 |
| Standover | 732 | 767 | 807 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre. | |||
technical Info
| fork travel | |||||||||
|
|||||||||
| Single crown | Triple Clamp | ||||||||
| Shock Length | 165 mm x 37 mm | ||||||||
| Rear Hub | 148 mm x 12mm | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Seatclamp Ø | 34.9 mm | ||||||||
| Front Derailleur | N/A | ||||||||
| BB Shell | 73 mm ISCG05 | ||||||||
| Tapered Headset | Upper: ZS49/28.6 Lower: EC49/40 |
||||||||
Ride Guide
| Yes | Downhill | 0 out of 5 stars |
| Yes | Freeride | 1 out of 5 stars |
| Yes | Enduro | 5.0 out of 5 stars |
| Yes | All-Mountain | 4.0 out of 5 stars |
| Yes | XC Trail | 4.0 out of 5 stars |
| Yes | Adventure | 3.0 out of 5 stars |
| Yes | Touring | 1.0 out of 5 stars |
| Yes | XC Racing | 0 out of 5 stars |
Bike Sizing Guidelines
Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
What they say ...
It’s simple; has enough suspension to keep things under control and is a hell of a ride when you push it hard.
Factory Jackson
It’s sprightly enough to be an everyday trail bike, but point it downhill and it shows a hooligan side.
Singletrack Magazine
Even when it gets a little wild, the Segment gives you the distinct feeling that, if you hold it wide open, you’ll get through anything.
MBR December 2014
Fast, fluorescent and fun to ride. the Segment is another great bike that proves 29ers aren't just mile munchers. We loved how it railed corners and how the no nonsense suspension offered an engaging ride.
MBR Magazine - December 2014Prices and Specifications are liable to change without notice.
