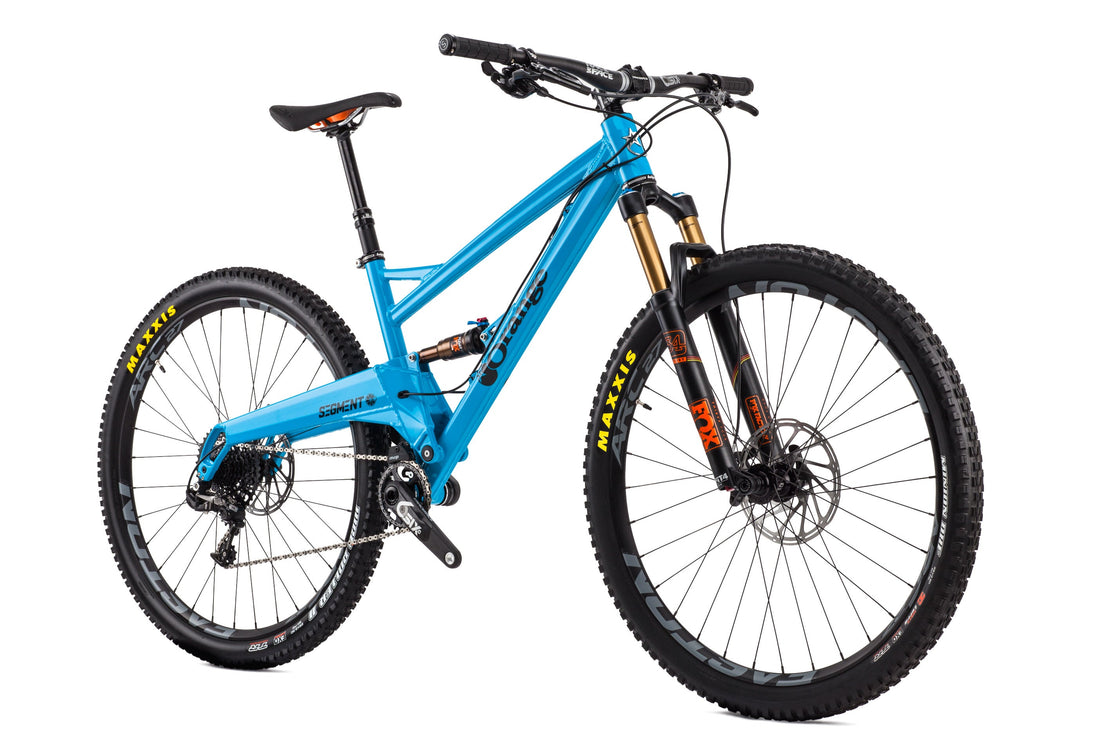

Segment Factory - 2016
Overview
Why the Segment Factory?
- New Lightweight Frame Handbuilt in Britain
- Five year frame warranty
- Fast rolling 29 Inch Wheels
- Generous tyre clearance
- 12x148mm Boost rear hub spacing for lateral stiffness and precise handling
- Suspension geometry for 120mm front/110mm rear
- Internal dropper post routing
- Fox 34 Factory 120mm Kashima Fork
- Fox Float DPS EVOL Factory Kashima Shock
- SRAM XO1 1x11 speed Drivetrain
- SRAM Guide RS brakes, 200mm/180mm Rotors
- Hope Pro II Evo + Easton Arc 27 Tubeless Wheelset
- Race Face Carbon finishing kit
The choice of those who value absolute speed and ground covering ability. The Factory models are second to none, with a SRAM XO1 1x11 drivetrain, Fox Factory Kashima suspension performance and Reverb Stealth dropper seatpost as standard, this is the Segment for riders who really know what they want.
The Segment. Divides opinions. Conquers trails.
Designed to be the fastest all-rounder we could make, the Segment takes preconceptions about what is possible on a short travel bike and pulls them apart.
This is the 2nd generation Segment frame. Revisited, reshaped, and re-honed. All new CNCed frame parts, and thinner aluminium sheet shed the overall frame weight by around 400g. We added 6mm to the width of the pivot along with 148mm Boost rear hub spacing to provide even more lateral stiffness than the 1st generation model.
With the extra swing-arm breathing room, for generous tyre clearance.
As ever this 120/110mm travel 29er can ride way beyond its travel figure, a little more ramp-up in the frame's shock curve balances its inherent big-wheel unflappability with a taut and playful ride that encourages you to let it roll faster, both up and down. With its confidence inspiring low-slung stance and the kind of angles more often found on longer travel bikes, the Segment enjoys a fiercely loyal rapidly growing cult following. It is the short travel 29er that can, and does.
The Orange Segment, greater than the sum of its parts doesn’t even come close.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Monocoque/Reynolds Custom Butted Aluminium Tube. Wheel Size: 29. Rear wheel travel: 110.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
SEGMENT GEOMETRY
| Monocoque/6061-T6 Reynolds Custom Butted Aluminium tubing | |||
| Frame Size | M | L | XL |
| Seat Tube Length | 17" | 19" | 21" |
| A. Head Angle | 68° | 68° | 68° |
| B. Seat Angle (Actual) | 71.5° | 71.5° | 71.5° |
| B. Seat Angle (Effective) | 74° | 74° | 74° |
| C. Top Tube | 591 | 600 | 623 |
| D. Top Tube (effective) | 610 | 630 | 650 |
| E. BB Height (from ground) | 335 | 335 | 335 |
| BB height (from axles | -40 | -40 | -40 |
| F. Chainstay | 447 | 447 | 447 |
| G. Head Tube | 110 | 110 | 130 |
| H. Wheel base | 1167 | 1187 | 1208 |
| J. Reach | 435 | 455 | 468 |
| K. Stack | 612 | 612 | 631 |
| T. Rear Travel | 110 | 110 | 110 |
| Standover | 732 | 767 | 807 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre. | |||
technical Info
| fork travel | |||||||||
|
|||||||||
| Single crown | Triple Clamp | ||||||||
| Shock Length | 165 mm x 37 mm | ||||||||
| Rear Hub | 148 mm x 12mm | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Seatclamp Ø | 34.9 mm | ||||||||
| Front Derailleur | N/A | ||||||||
| BB Shell | 73 mm ISCG05 | ||||||||
| Tapered Headset | Upper: ZS49/28.6 Lower: EC49/40 |
||||||||
Ride Guide
| Yes | Downhill | 0 out of 5 stars |
| Yes | Freeride | 1 out of 5 stars |
| Yes | Enduro | 5.0 out of 5 stars |
| Yes | All-Mountain | 4.0 out of 5 stars |
| Yes | XC Trail | 4.0 out of 5 stars |
| Yes | Adventure | 3.0 out of 5 stars |
| Yes | Touring | 1.0 out of 5 stars |
| Yes | XC Racing | 0 out of 5 stars |
Bike Sizing Guidelines
Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
What they say ...
It’s simple; has enough suspension to keep things under control and is a hell of a ride when you push it hard.
Factory Jackson
It’s sprightly enough to be an everyday trail bike, but point it downhill and it shows a hooligan side.
Singletrack Magazine
Even when it gets a little wild, the Segment gives you the distinct feeling that, if you hold it wide open, you’ll get through anything.
MBR December 2014
Fast, fluorescent and fun to ride. the Segment is another great bike that proves 29ers aren't just mile munchers. We loved how it railed corners and how the no nonsense suspension offered an engaging ride.
MBR Magazine - December 2014Prices and Specifications are liable to change without notice.
