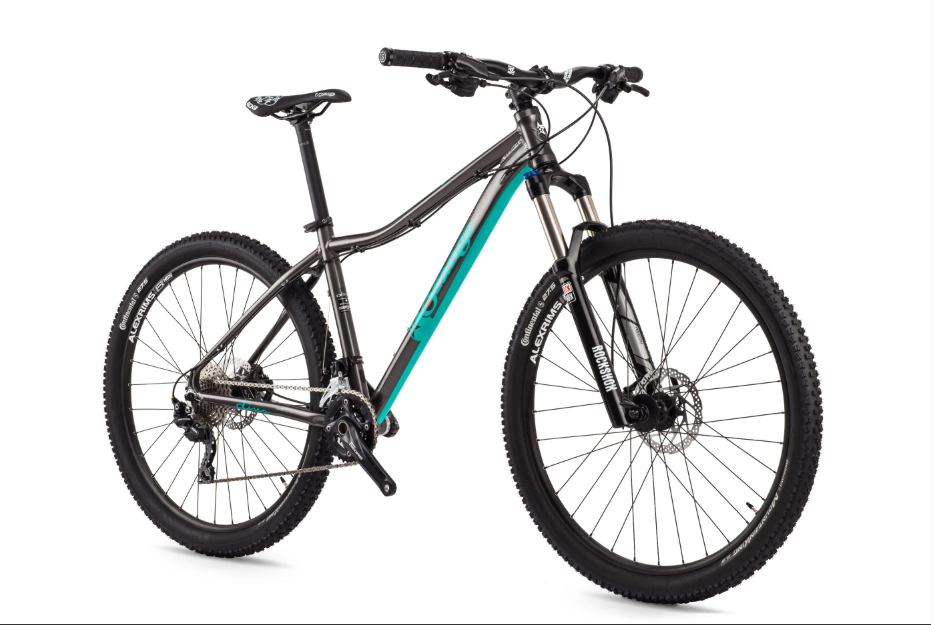

Diva - 2016
Overview
Why the Diva?
- Designed in Halifax, UK
- Five year frame warranty
- Lightweight custom butted aluminium frame
- Increased toptube clearance
- 27.5" wheels
- RockShox Recon Silver 120mm forks
- Shimano SLX/Deore drivetrain
- Shimano brakes
- Custom SDG women’s specific saddle
The Diva offers that little bit extra than the standard bike; lighter weight with the spec upgrades which make the biggest difference. The bike for those wanting top quality without moving to full-suspension.
The Diva high-performance hardtail geometry for women.
With 27.5inch wheels and 6061-T6 aluminium tubing the Diva sports a chassis that’s efficient on the pedals, inspiring in the singletrack and forgiving enough to reduce fatigue on day-long rides.
For 2016 the Orange Diva hardtail frame gets a makeover. We’ve looked at every tube and adjusted them where we can to improve ride quality. The Diva joins the rest of the range with a longer top-tube and short stem, making steering more direct and improving the rider’s weight distribution to give more front wheel traction. We have replaced the monostay rear end with compliant custom butted seatstays to add a little more comfort. The Diva is all about sure-footed, confident handling - up or down.
Just as with any of our bikes you’ll find the Diva is geared towards fun regardless of what the trail is doing and with components designed to relieve pressure points the fun only stops when you do.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
Diva Geometry
| 6061-T6 Custom Butted Aluminium | ||
| Frame Size | S | M |
| Frame Size | 15" | 17" |
| A. Head Angle | 68° | 68° |
| B. Seat Angle | 74° | 74° |
| C. Top Tube | 573 | 583 |
| D. Effective TT | 580 | 600 |
| E. BB Height | -48 | -48 |
| F. Chainstay | 440 | 440 |
| G. Head Tube | 100 | 110 |
| H. Wheelbase | 1118 | 1140 |
| J. Reach | 406 | 423 |
| K. Stack | 610 | 615 |
| Seat Tube Ø | 30.9 | 30.9 |
| Stem Length | 50 | 50 |
| Standover | 684 | 725 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 700 mm Ø tyre. | ||
technical Info
| fork travel | |||||||||
|
|||||||||
| Single crown | Triple Clamp | ||||||||
| Rear Hub | 135 mm | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Front Derailleur | Band | ||||||||
| BB Shell | 68 mm | ||||||||
| Tapered Headset | Upper: ZS44/28.6 Lower: EC44/40 |
||||||||
Ride Guide
| Yes | Downhill | 4.0 out of 5 stars |
| Yes | Freeride | 4.0 out of 5 stars |
| Yes | Enduro | 5.0 out of 5 stars |
| Yes | All-Mountain | 4.0 out of 5 stars |
| Yes | XC Trail | 4.0 out of 5 stars |
| Yes | Adventure | 4.0 out of 5 stars |
| Yes | Touring | 4.0 out of 5 stars |
| Yes | XC Racing | 4.0 out of 5 stars |
Bike Sizing Guidelines
Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
Prices and Specifications are liable to change without notice.
