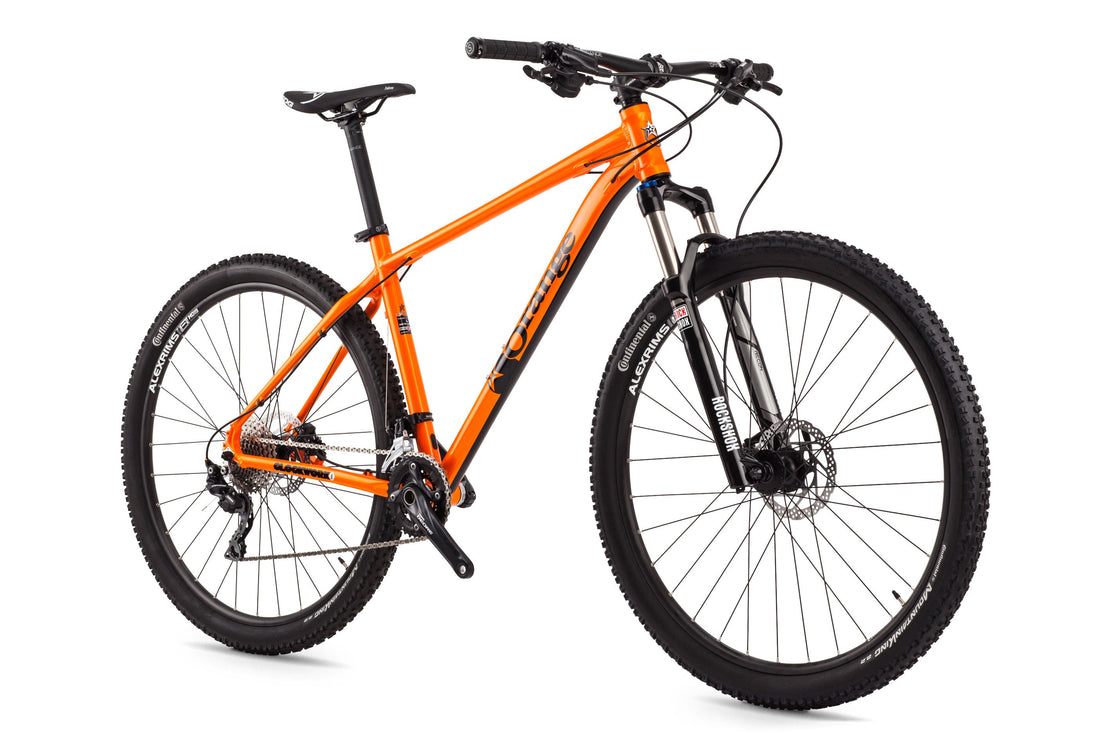

Clockwork 100 - 2016
Overview
Why the Clockwork 100?
- Designed in Britain
- Five year frame warranty
- Custom butted 6061-T6 aluminium
- 29" wheels
- 100mm travel fork
- Internal dropper routing & cable routing
- Designed for covering miles with ease
- Confidence inspiring with a zest of sharp handling
- Generous mud clearance
- RockShox Recon Silver Solo Air 100mm fork
- Shimano Deore drivetrain
- Shimano brakes
The question with the Clockwork is, why not? Whether it’s as an inspiring introduction to mountain biking or as a second, or even third bike for the enthusiast, the Clockwork is all that’s great about Orange. A Shimano drivetrain with 100mm RockShox Recon Silver Solo Air offer comfort and durability to keep you riding for longer.
Looking for a higher spec? You’ll be after the Clockwork 100 S. Prefer 27.5inch wheels? Try the Clockwork 120.
Classic Orange Hardtail thinking
The 29er version of the Clockwork just keeps us coming back for more. Even more so for 2016 as we've lengthend the top tube and shortend the stem for improved rider weight distribution. It will roll at speed all day long, and take on gnarly descents with a confidence most would baulk at.
With geometry designed around a 100mm travel fork and a mission to extract the most smiles out of your trail-time the Clockwork is the product of what we do best, making bikes that make you want to ride.
The frame light on weight but heavy on features. Custom butted and shaped tubes, a chainstay mounted disc brake mount combined with internal brake, gear and dropper post routing make for a sleek profile.
Years of experience with frame geometry and tubing profiles give a ride that’s balanced, confidence inspiring and really lets the rider, be they beginner or expert, get the most out of every trail.
The Clockwork is a sharp-looking, smooth-rolling hardtail that begs to be ridden hard but is more than happy cruising if that takes your fancy. The frame is ready for any future upgrades you might have in store for it.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
Clockwork 100 Geometry
| 6061-T6 Custom Butted Aluminium | ||||
| Frame Size | M | L | XL | |
| Seat Tube | 17" | 19" | 21" | |
| A. Head Angle | 70° | 70° | 70° | |
| B. Seat Angle | 73° | 73° | 73° | |
| C. Top Tube | 599 | 614 | 633 | |
| D. Effective TT | 620 | 640 | 660 | |
| E. BB Height (axle diff) | -60 | -60 | -60 | |
| F. Chainstay | 450 | 450 | 450 | |
| G. Head Tube | 110 | 120 | 130 | |
| H. Wheelbase | 1118 | 1139 | 1159 | |
| J. Reach | 427 | 444 | 461 | |
| K. Stack | 630 | 639 | 650 | |
| Stem Length | 50 | 50 | 50 | |
| Standover | 770 | 790 | 802 | |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from axle. |
||||
technical Info
| fork travel | |||||||||
|
|||||||||
| Single crown | Triple Clamp | ||||||||
| Rear Hub | 135 mm | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Front Derailleur | Band | ||||||||
| BB Shell | 68 mm | ||||||||
| 1.1/8"Headset | Upper: ZS44/28.6 Lower: ZS44/30 |
||||||||
Ride Guide
| Yes | Downhill | 4.0 out of 5 stars |
| Yes | Freeride | 4.0 out of 5 stars |
| Yes | Enduro | 5.0 out of 5 stars |
| Yes | All-Mountain | 4.0 out of 5 stars |
| Yes | XC Trail | 4.0 out of 5 stars |
| Yes | Adventure | 4.0 out of 5 stars |
| Yes | Touring | 4.0 out of 5 stars |
| Yes | XC Racing | 4.0 out of 5 stars |
Bike Sizing Guidelines
Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
Prices and Specifications are liable to change without notice.
