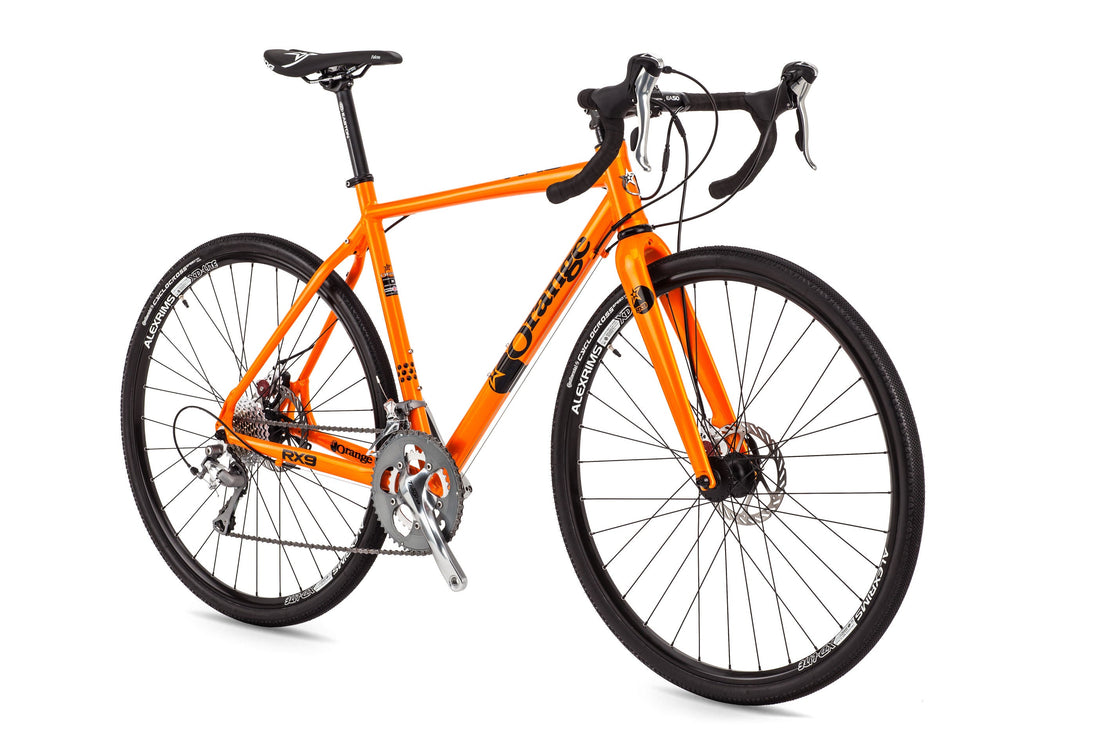

RX9 S - 2015

RX9 S - 2015

Overview

Why the RX9 S?



  • Designed in Halifax, UK
  • Lightweight Custom Butted 6061-T6 OS aluminium
  • Truly adaptable, suitable for on-road and off-road use
  • Mudguard compatible
  • Carbon fork
  • Avid BB7R cable-actuated disc brakes
  • Shimano Tiagra drivetrain
  • Easton EA50 cockpit
  • Shimano/Mavic wheelset

With a carbon fork, Shimano Tiagra drivetrain and Avid BB7 disc brakes the RX9 gives you a refined ride, whatever is under your tyres.

Want the same frame but with a lower spec? Try the RX9.

Like the idea of skinny tyres but not keen on drop bars? Take a look at the Express-O S.



Built with the Orange Bikes' ride philosophy firmly at the top of the list, the slack (for CX/Road rules of thumb) geometry hits the right balance to ride just about any terrain this side of rocks and boulders. We built it to be a workhorse and also to put a firm tick in the box next to 'Fun'.

The RX9 is our go-anywhere, black top or dirt track mile muncher. Whether you’re commuting to work, exploring the local countryside or taking a cruise along the coast, the RX9 will smooth out the miles. The double-butted alloy frame has been honed to provide a frame that is stiff enough to put your power to the black stuff, while being comfy enough to take the edge of any road chatter.

This is the bike for anything, with mounts for mudguards or racks, 10-speed Shimano components, disc brakes, and a carbon fork ensure sharp handling and confidence in any conditions.

Specs & Options

SIZES AND COLOURS

Sizes
S   M   L   XL   XXL
Colour
Carrot Top Orange

Select a frame size to choose colour

Frame and Fork

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 700c.

Headset
FPD 44mm
Fork
RX9 Carbon Rigid Fork
Swingarm
QR Axle
Rear Shock
N/A

Drivetrain

Bottom Bracket
Shimano
Crankset
Shimano Tiagra 50-34T
Rear Mech
Shimano Tiagra
Shifters
Shimano Tiagra
Cassette
Shimano HG81 10spd 11-32
Chain Device
Shimano Tiagra

Wheel and Tyres

Wheelset
Shimano 525 + Alex XD-Lite
Tyres
Continental Cyclocross Speed

Braking

Brakes
Avid BB7R

Finishing Kit

Seatpost
Easton EA50
Seat Clamp
Strange Bolted
Stem
Easton EA50
Saddle
Orange SDG Falcon 2015 Chromo
Handlebars
Easton EA50 Ergo Dropbar
Grips
Black Bar Tape
Pedals
Flat Black

Geometry & Tech Info

2015 RX9 Geometry
RX9 Geometry
6061-T6 Double Butted Aluminium
Frame S M L XL XXL
Frame Size (cm) 52 54 56 58 60
A. Head Angle 70° 70.5° 71° 71.5° 72°
B. Seat Angle 73° 73° 73° 73° 73°
C. Top Tube 525 538 545 567 582
D. Effective TT 540 555 560 585 600
E. Bottom Bracket Height -70 -70 -70 -70 -70
F. Chainstay 435 435 435 435 435
G. Head Tube 110 135 155 170 185
H. Wheelbase 1023 1034 1048 1056 1066
I. Front & Centre 598 610 586 630 640
J. Reach 374 382 390 400 410
K. Stack 544 572 585 609 625
Stem Length 75 90 90 100 115
Bar Width (cm) 42 42 44 44 46
Crank Length 170 170 175 175 175
Seat Tube Ø 27.2 27.2 27.2 27.2 27.2
Unless otherwise indicated all measurements are in mm.
Bottom bracket height measured from axle.
