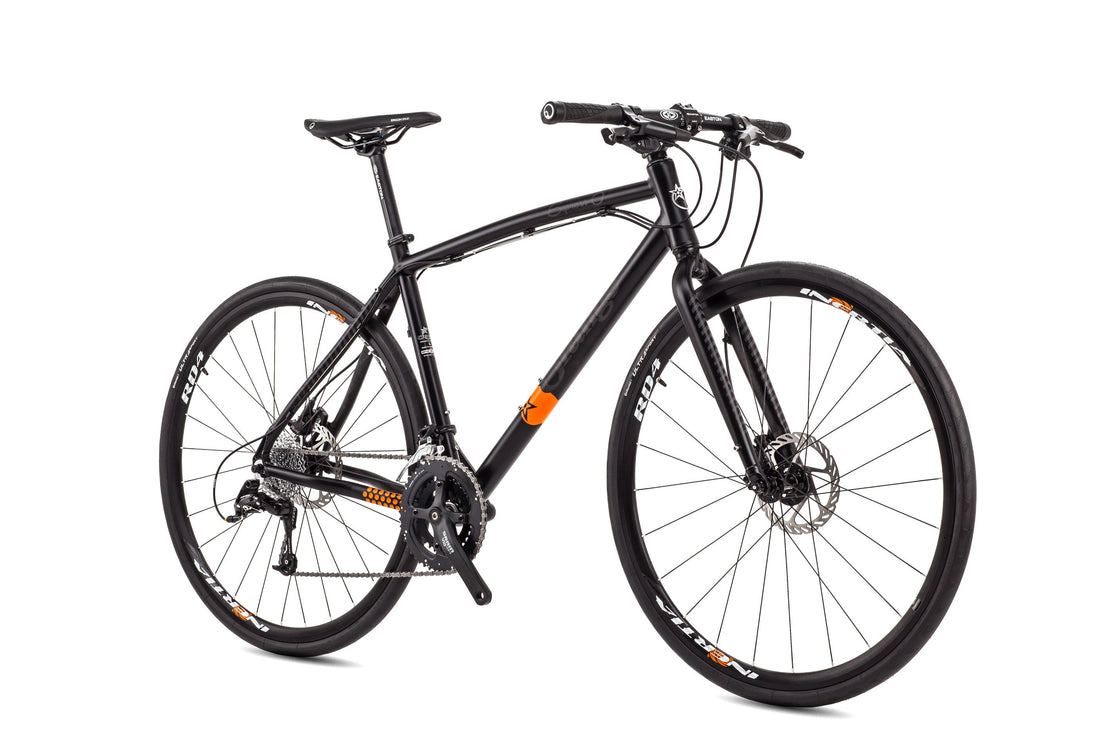

Express-O S - 2015

Express-O S - 2015

Overview

Why the Express-O S?



  • Designed in Britain
  • Lightweight custom butted 6061-T6 OS aluminium
  • Reflective decals for safety on the road
  • Anti-theft wheel skewers
  • Mudguard compatible
  • SRAM Via drivetrain
  • Xero Inertia RD4 wheels
  • Ergon saddle and grips

The perfect bike for the pro-commuter. SRAM’s 2 x 10 Via drivetrain, Avid brakes and a narrow Easton bar mean you can confidently play with traffic or escape it, depending on your mood.

Prefer your bars a little wider or a Shimano drivetrain? Have a look at the Express-O. Prefer your skinny wheeled bike to have drop bars? Try the RX9 S.



Road bike speed meets mountain bike comfort.

Not just a commuter – Read Sam Lister's Express-O adventure

The Express-O is more than just your commuter hack bike. With its comfortable ride, reliable drivetrain and road-grime immune disc brakes it’s a bike that will look after you on your kerb-hopping commute through the urban-jungle. Come the weekend though the Express-O is your speedy, smooth rolling, flat bar road bike. Lycra optional.

The Express-O’s aluminium frame uses custom butting to keep weight low while clever tube profiling builds in comfort as well as good looks. Details such as the reflective decals, anti-theft wheel skewers and mudguard mounts give peace of mind for any conditions in all environments, while components such as the ergonomically designed grips and saddle mean miles can be ticked off in comfort. From city streets and café bars to country roads and tea shops the Express-O is your perfect Tarmac explorer.

Specs & Options

SIZES AND COLOURS

Sizes
S   M   L   XL
Colour
Satin Black

Select a frame size to choose colour

Frame and Fork

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 700c.

Swingarm
QR Axle
Rear Shock
N/A
Headset
Cane Creek
Fork
Expresso Rigid

Drivetrain

Shifters
SRAM Via Centro 10spd
Cassette
SRAM PG-1030 11-32T
Chain Device
SRAM Via Centro
Bottom Bracket
Sram GXP
Crankset
SRAM Via Centro Urban Compact 32-48T
Rear Mech
SRAM Via GT

Wheel and Tyres

Wheelset
Xero Inertia RD4
Tyres
Continental Ultra Sport II 700x28c

Braking

Brakes
Avid DB1

Finishing Kit

Handlebars
Easton EA30 Flat bar 580mm
Grips
Strange Lock-On
Pedals
Flat Black
Seatpost
Easton EA30
Seat Clamp
Strange Bolted
Stem
Easton EA50
Saddle
Ergon SRX30

Geometry & Tech Info

2015 Express-o geometry
EXPRESS-O GEOMETRY
6061-T6 Double Butted Aluminium
Frame S M L XL
Frame Size (in) 16 17.5 19.5 21
A. Head Angle 70° 70° 70° 70°
B. Seat Angle 73.5° 73.5° 73.5° 73.5°
C. Top Tube 549 571 587 601
D. Effective TT 568 594 609 620
E. Bottom Bracket Height -70 -70 -70 -70
F. Chainstay 420 420 420 420
G. Head Tube 120 130 140 150
H. Wheelbase 1052 1069 1079 1090
I. Front & Centre 642 658 668 680
J. Reach 412 430 436 444
K. Stack 548 560 569 578
Stem Length 60 75 75 90
Bar Width (cm) 42 42 44 44
Crank Length 170 170 170 170
Seat Tube Ø 27.2 27.2 27.2 27.2
Unless otherwise indicated all measurements are in mm.
Bottom bracket height measured from axle.
