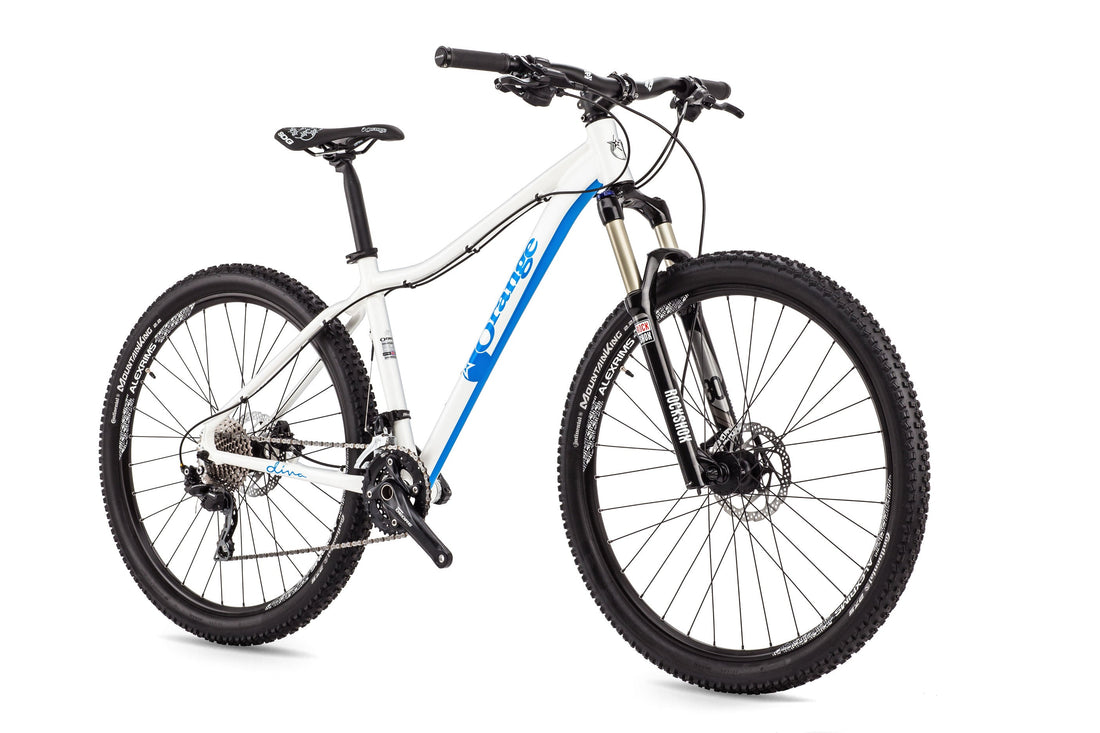

Diva - 2015

Diva - 2015

Overview

Why the Diva?



  • Designed in Halifax, UK
  • Lightweight custom butted aluminium frame
  • Increased toptube clearance
  • 27.5" wheels
  • RockShox XC30 Gold 120mm forks
  • Shimano Deore drivetrain
  • Shimano brakes
  • Custom SDG women’s specific saddle



The Diva delivers everything you’d expect from an Orange hardtail, just subtly adapted to improve performance for women.

With 27.5inch wheels and 6061-T6 aluminium tubing the Diva sports a chassis that’s efficient on the pedals, inspiring in the singletrack and forgiving enough to reduce fatigue on day-long rides. A slightly slacker head angle and steeper seat angle centre the rider between the wheels, allowing easier movement around the bike while a custom manipulated toptube adds generous standover giving greater control on technical trail features. Just as with any of our bikes you’ll find the Diva’s geometry is geared towards fun regardless of what the trail is doing and with components designed to relieve pressure points the fun only stops when you do. To keep you smiling through the worst of the weather we’ve equipped the Diva with full length cable outers; less time servicing gears in the workstand means more time riding.

Specs & Options

SIZES AND COLOURS

Sizes
S   M
Colour
Skylar White

Select a frame size to choose colour

Frame and Fork

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5.

Swingarm
QR Axle
Rear Shock
N/A
Headset
FPD 44mm
Fork
Rockshox 30 Gold 120mm 27.5

Drivetrain

Shifters
Shimano Deore
Cassette
Shimano 10spd 11-36T
Chain Device
Shimano Deore
Bottom Bracket
Shimano
Crankset
Shimano Deore Double 38-26T
Rear Mech
Shimano Deore Shadow +

Wheel and Tyres

Wheelset
Formula DC71/Shimano 525 + Alex MD21
Tyres
Continental Mountain King 2.2 27.5\"

Braking

Brakes
Shimano M445

Finishing Kit

Handlebars
Raceface Ride Riser 740mm
Grips
Strange Lock-On
Pedals
Flat Black
Seatpost
Raceface Ride
Seat Clamp
Strange QR
Stem
Raceface Ride
Saddle
Orange SDG Falcon 2015 Chromo

Geometry & Tech Info

2015 Diva Hardtail Geometry
Diva Geometry
6061-T6 Custom Butted Aluminium
Frame Size S M
Frame Size 15" 17"
A. Head Angle 68° 68°
B. Seat Angle 74° 74°
C. Top Tube 547 560
D. Effective TT 550 575
E. BB Height -48 -48
F. Chainstay 440 440
G. Head Tube 100 110
H. Wheelbase 1088 1114
J. Reach 376 399
K. Stack 605 615
Seat Tube Ø 30.9 30.9
Stem Length 60 60
Standover 684 725
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 700 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
120 mm 120 mm 100 mm
  Single crown   Triple Clamp
Rear Hub 135 mm
Seatpost Ø 30.9 mm
Front Derailleur Band
BB Shell 68 mm
Tapered Headset Upper: ZS44/28.6
Lower: EC44/40
