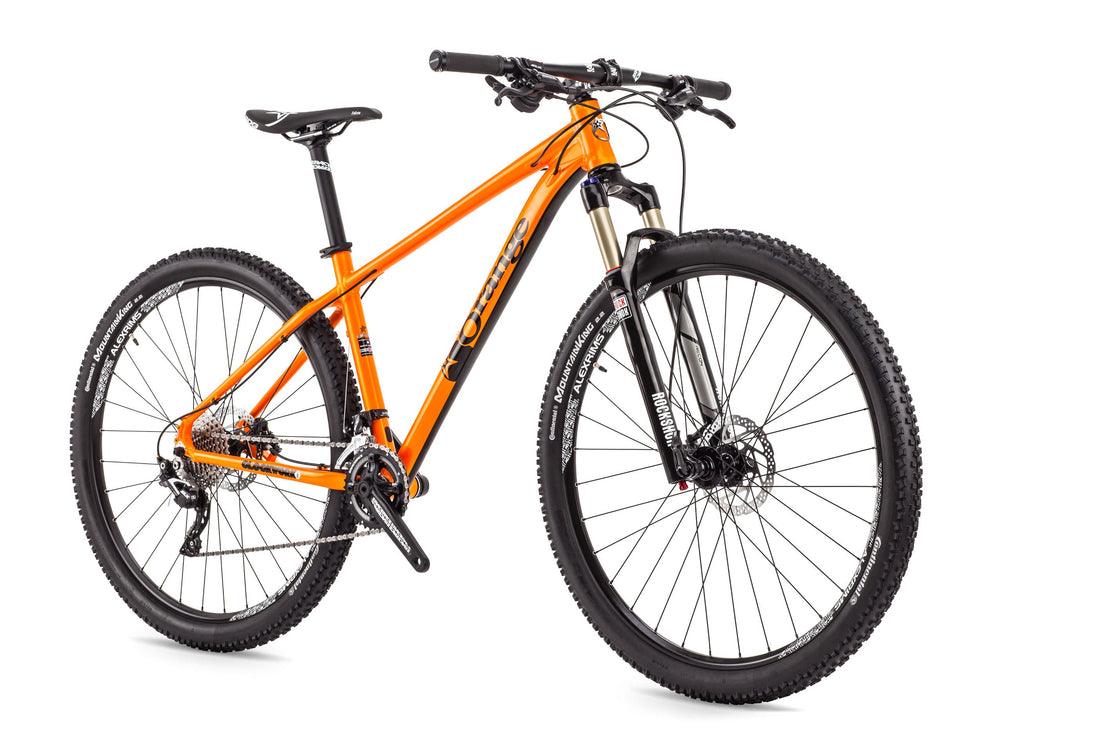

Clockwork 100 S - 2015

Clockwork 100 S - 2015

Overview

Why the Clockwork 100 S?



  • Designed in Britain
  • Custom butted 6061-T6 aluminium
  • 29" wheels
  • 100mm travel fork
  • Internal dropper routing
  • Internal cable routing
  • Designed for covering miles with ease
  • Confidence inspiring with a zest of sharp handling
  • Generous mud clearance
  • RockShox Gold Solo Air 100mm Fork
  • Shimano SLX drivetrain
  • Shimano brakes

With its 100mm RockShox Recon Gold forks, Shimano SLX drivetrain and RaceFace finishing kit the Clockwork 100 S is all about dependable performance, whether that be out on the hills or on the start line.

Looking for the perfect entry point to the Orange range? The Clockwork 100 might just be it.  Prefer 27.5inch wheels? Try the Clockwork 120 S.



A 29er built the Orange Bikes way. Whether you’re looking for an endurance race weapon or a rugged trail bike the Clockwork 100 is designed to take whatever you throw at it and keep you coming back for more.

With geometry designed around a 100mm travel fork and a mission to extract the most smiles out of your trail-time the Clockwork is the product of what we do best, making bikes that make you want to ride.

We’ve made the frame light on weight but heavy on features. Custom butted and shaped tubes, a chainstay mounted disc brake mount combined with internal brake, gear and dropper post routing make for a sleek profile.

That lightweight aluminium alloy matched with 29inch wheels provides speed and long distance comfort. Our years of experience with frame geometry and tubing profiles give a ride that’s balanced, confidence inspiring and really lets the rider, be they beginner or expert, get the most out of every trail.

The Clockwork is a sharp-looking, smooth-rolling hardtail that begs to be ridden hard but is more than happy cruising if that takes your fancy. The frame is ready for any future upgrades you might have in store for it.

Big wheels, big fun, that’s the Clockwork 100.

Specs & Options

SIZES AND COLOURS

Sizes
M   L   XL
Colour
Carrot Top Orange

Select a frame size to choose colour

Frame and Fork

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29.

Fork
Rockshox Recon Gold Solo Air 100mm 29\" Tapered Steerer Maxle
Swingarm
QR Axle
Rear Shock
N/A
Headset
Token 44mm Tapered

Drivetrain

Rear Mech
Shimano SLX Shadow +
Shifters
Shimano SLX
Cassette
Shimano 10spd 11-36T
Chain Device
Shimano SLX
Bottom Bracket
Shimano
Crankset
Raceface Ride Double 24-36T Bash

Wheel and Tyres

Wheelset
Formula DC71/Shimano 525 + Alex MD21
Tyres
Continental Mountain King 2.2 29\"

Braking

Brakes
Shimano M445

Finishing Kit

Stem
Raceface Ride
Saddle
Orange SDG Falcon 2015 Chromo
Handlebars
Raceface Ride Flat
Grips
Strange Lock-On
Pedals
Flat Black
Seatpost
Raceface Ride
Seat Clamp
Strange Bolted

Geometry & Tech Info

2015 Clockwork 100 Geometry
Clockwork 100 Geometry
6061-T6 Custom Butted Aluminium
Frame Size   M L XL
Seat Tube   17" 19" 21"
A. Head Angle   70° 70° 70°
B. Seat Angle   73° 73° 73°
C. Top Tube   589 604 615
D. Effective TT   608 629 640
E. BB Height (axle diff)   -60 -60 -60
F. Chainstay   450 450 450
G. Head Tube   110 120 130
H. Wheelbase   1118 1139 1159
J. Reach   418 436 453
K. Stack   630 639 650
Seat Tube Ø   30.9 30.9 30.9
Standover   770 790 802
Unless otherwise indicated all measurements are in mm.
Frame angles are measured static, without rider sag.
Bottom bracket height measured from axle.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
100 mm 100 mm 100 mm
  Single crown   Triple Clamp
Rear Hub 135 mm
Seatpost Ø 30.9 mm
Front Derailleur Band
BB Shell 68 mm
1.1/8"Headset Upper: ZS44/28.6
Lower: ZS44/30
