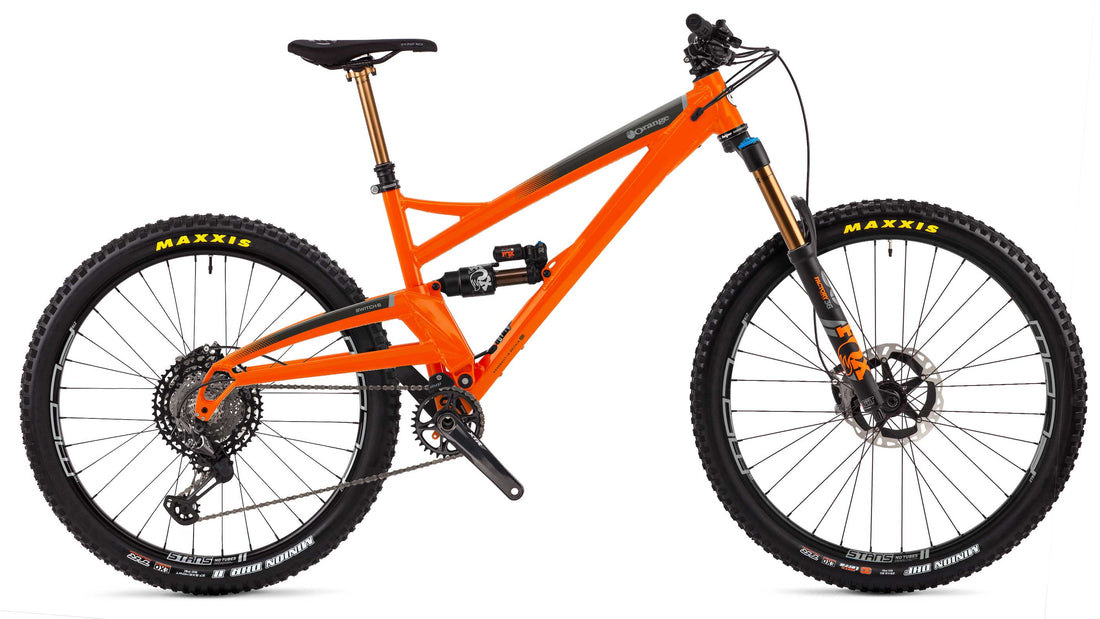

Switch 6 XTR - 2020
Overview
Why the Switch 6?
F: 160MM | R: 145MM | W: 29/27.5
- Lightweight Frame Handbuilt in Britain
- Brand New Monocoque 6061-T6 aluminium frame
- 5 year frame warranty with Limited Lifetime Crash Replacement
- New 29 front/27.5 rear mixed size wheelset
- Orange race tuned geometry
- New Reduced offset fork
- Streamlined cable routing
- Steep 76° seat angle
- New Frame bottle bosses
- Ultimate “Do it all” bike
- Choose from 4 custom colours
The Switch 6 is our first mixed wheel size bike, 29er wheel upfront with 160mm of travel and 27.5 wheel out back with 145mm.
New for 2020 this model comes with all the frame updates that we’ve integrated into the latest line-up; Metric shock, 76° seat angle, 64° head angle, with a generous 485mm reach on a size large and a reduced offset fork, this bike is clearly set-up with the agressive rider in mind.
Aimed at racers and fast trail riders this genre of bike has become the hottest ticket around, whether you call them a 'Mullet' or 'MX', the mixed size wheelset makes a massive amount of sense, but only if you apply the right geometry. The Switch 6 has it's geometry tuned to put all the key frame elements in the right place, therefore the ride by design is what you would expect from an Orange.
The bike will be available in 4 specs (pro, RS, Factory and XTR) with prices ranging from £4300-£6500 with a choice of four colour options.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. Rear wheel travel: 145.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
Switch 6 GEOMETRY
| Monocoque/6061-T6 Reynolds Custom Butted Aluminium tubing | |||
| Frame Size | M | L | XL |
| Seat Tube Length | 17" | 18" | 19" |
| A. Head Angle | 64° | 64° | 64° |
| B. Seat Angle | 76° | 76° | 76° |
| C. Top Tube | 621 | 632 | 640 |
| D. Top Tube (effective) | 625 | 645 | 665 |
| E. BB Height (from ground) | 330 | 330 | 330 |
| BB height (from axles) | -40 | -40 | -40 |
| F. Chainstay | 447 | 447 | 447 |
| G. Head Tube | 100 | 110 | 120 |
| H. Wheel base | 1250 | 1272 | 1294 |
| J. Reach | 467 | 484 | 503 |
| K. Stack | 633 | 642 | 652 |
| T. Rear Travel | 145 | 145 | 145 |
| O. Fork Offset | 42 | 42 | 42 |
| Standover | 733 | 744 | 797 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre. | |||
technical Info
| fork travel | |||||||||
|
|||||||||
| Fork Offset | 42 mm | ||||||||
| Shock Length | 210 mm x 55 mm | ||||||||
| Rear Hub | 12 x 148mm Boost | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Seatclamp Ø | 34.9 mm | ||||||||
| Front Derailleur | N/A | ||||||||
| BB Shell | 73 mm ISCG05 | ||||||||
| Tapered Headset | Upper: ZS49/28.6 Lower: EC49/40 |
||||||||
Ride Guide
| Downhill | ||
| Freeride | ||
| Enduro | ||
| All Mountain | ||
| Trail | ||
| XC Racing | ||
| Bike Packing | ||
| Gravel |
