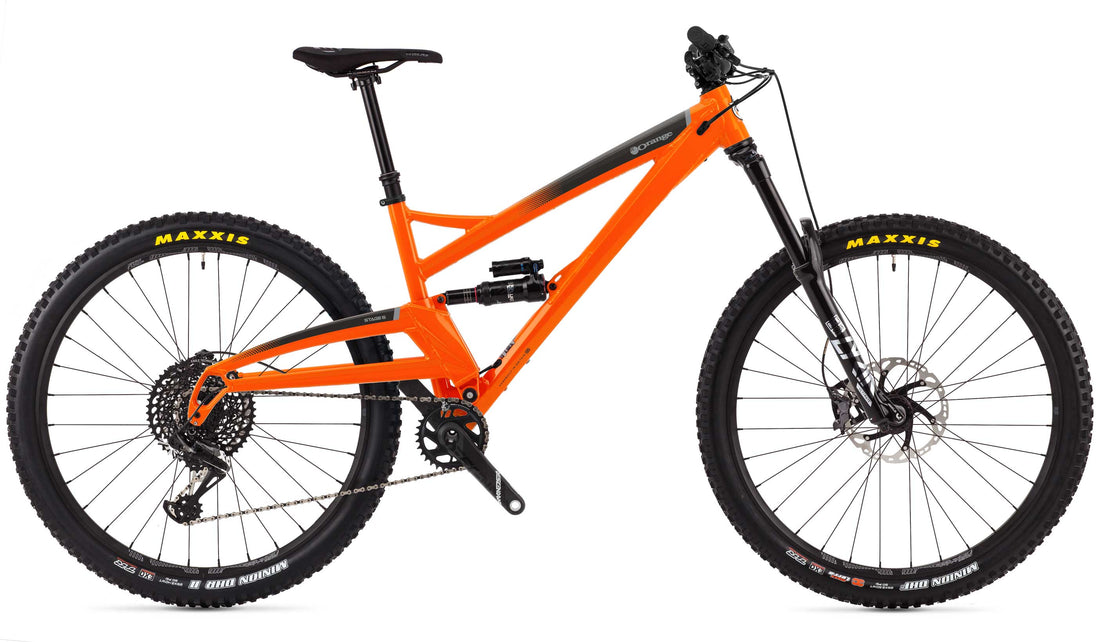

Stage 6 RS - 2020
Overview
Why the Stage 6?
- F: 160MM | R: 150MM | W: 29
- Lightweight Frame Handbuilt in Britain
- 5 year frame warranty with Limited Lifetime Crash Replacement
- Unique monocoque aluminium chassis
- New Orange Race Tuned geometry
- New Streamlined cable routing
- New Frame bottle bosses
- Internal dropper seatpost cable routing
- Available in 4 model specs: Pro, RS, Factory and XTR
- Choose from 6 custom colours
When the only thing that matters is flat-out performance, the Stage 6 nails it. Redefining the typical terrain of the 29er, this is a bike made for riding hard and racing the best in the world, anywhere in the world.
Long, slack, and with a trail-busting 160/150 travel, the Stage 6 goes wherever you want but aims straight for the podium. Lateral stiffness and low standover help its ability to hit extreme terrain fast. Meanwhile, refined single-pivot suspension delivers great pedalling efficiency, not to mention super-smooth and trouble-free riding for more of the season. Internal routing, a 5-year warranty and 6 stunning colour options all help seal the deal.
It’s simple: just when you’d got your head around the natural habitat of 29ers, the Stage 6 explodes it. One word of warning – this is a lot of bike that rewards skill and confidence, and that’s why guides and racers love it. If you’re ready for the ride of your life, step up now.
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 150.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
STAGE 6 GEOMETRY
| Monocoque/6061-T6 Reynolds Custom Butted Aluminium tubing | |||
| Frame Size | M | L | XL |
| Seat Tube Length | 17" | 18" | 19" |
| A. Head Angle | 64° | 64° | 64° |
| B. Seat Angle | 76° | 76° | 76° |
| C. Top Tube | 621 | 632 | 640 |
| D. Top Tube (effective) | 625 | 645 | 665 |
| E. BB Height (from ground) | 330 | 330 | 330 |
| BB height (from axles) | -40 | -40 | -40 |
| F. Chainstay | 469 | 469 | 469 |
| G. Head Tube | 100 | 110 | 120 |
| H. Wheel base | 1272 | 1294 | 1316 |
| J. Reach | 467 | 484 | 503 |
| K. Stack | 633 | 642 | 652 |
| T. Rear Travel | 150 | 150 | 150 |
| O. Fork Offset | 42 | 42 | 42 |
| Standover | 733 | 744 | 797 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre. | |||
technical Info
| fork travel | |||||||||
|
|||||||||
| Fork Offset | 42 mm | ||||||||
| Shock Length | 210 mm x 55 mm | ||||||||
| Rear Hub | 12 x 148mm Boost | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Seatclamp Ø | 34.9 mm | ||||||||
| Front Derailleur | N/A | ||||||||
| BB Shell | 73 mm ISCG05 | ||||||||
| Tapered Headset | Upper: ZS49/28.6 Lower: EC49/40 |
||||||||
