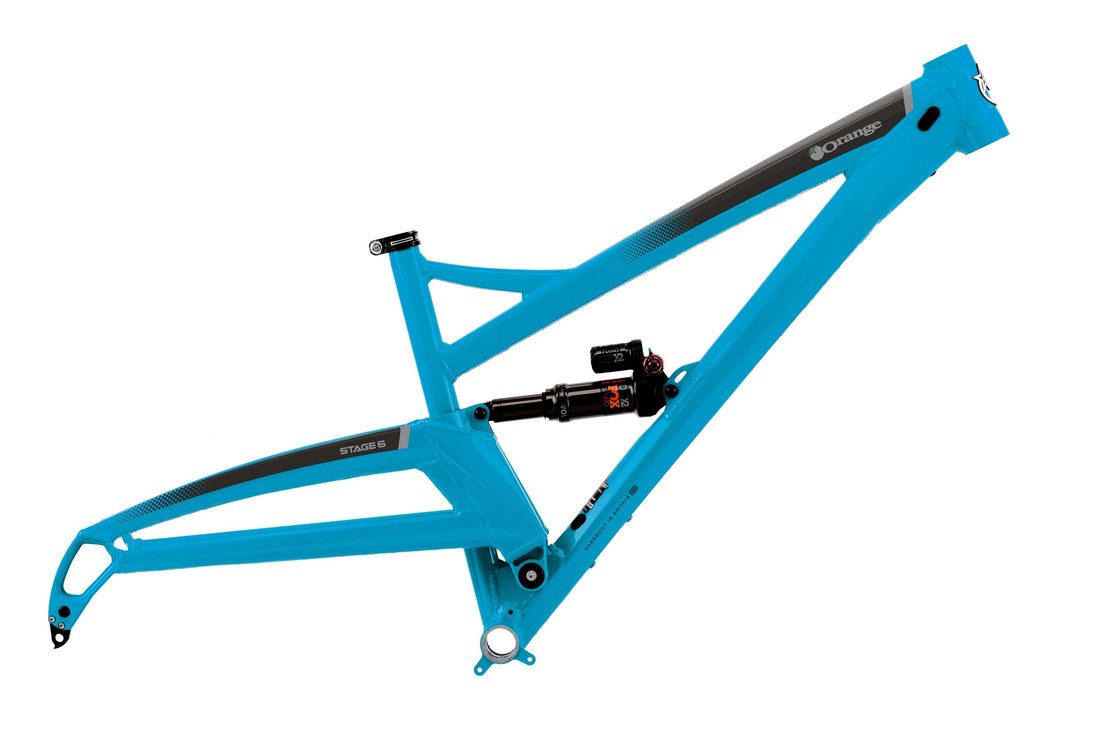

Stage 6 Frame - 2020

December 15, 2025

Overview

Why the Stage 6?

F: 160MM | R: 150MM | W: 29
Lightweight Frame Handbuilt in Britain
5 year frame warranty with Limited Lifetime Crash Replacement
Unique monocoque aluminium chassis
New Orange Race Tuned geometry
New Streamlined cable routing
New Frame bottle bosses
Internal dropper seatpost cable routing
Available in 4 model specs: Pro, RS, Factory and XTR
Choose from 6 custom colours

When the only thing that matters is flat-out performance, the Stage 6 nails it. Redefining the typical terrain of the 29er, this is a bike made for riding hard and racing the best in the world, anywhere in the world.

Long, slack, and with a trail-busting 160/150 travel, the Stage 6 goes wherever you want but aims straight for the podium. Lateral stiffness and low standover help its ability to hit extreme terrain fast. Meanwhile, refined single-pivot suspension delivers great pedalling efficiency, not to mention super-smooth and trouble-free riding for more of the season. Internal routing, a 5-year warranty and 6 stunning colour options all help seal the deal.

It’s simple: just when you’d got your head around the natural habitat of 29ers, the Stage 6 explodes it. One word of warning – this is a lot of bike that rewards skill and confidence, and that’s why guides and racers love it. If you’re ready for the ride of your life, step up now.

Specs & Options

SIZES AND COLOURS

Sizes

M L XL

Colour

Fizzy Orange

Decals

Black Decals

Frame and Fork

6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 150.

Swingarm

Bolt Type Allen Key Head (Boost 148mm Hub)

Rear Shock

Fox Float DPX2 Performance 210x55

Headset

Drivetrain

Chain Device

Finishing Kit

Seat Clamp

Strange Bolted

Geometry & Tech Info

STAGE 6 GEOMETRY

Monocoque/6061-T6 Reynolds Custom Butted Aluminium tubing
Frame Size	M	L	XL
Seat Tube Length	17"	18"	19"
A. Head Angle	64°	64°	64°
B. Seat Angle	76°	76°	76°
C. Top Tube	621	632	640
D. Top Tube (effective)	625	645	665
E. BB Height (from ground)	330	330	330
BB height (from axles)	-40	-40	-40
F. Chainstay	469	469	469
G. Head Tube	100	110	120
H. Wheel base	1272	1294	1316
J. Reach	467	484	503
K. Stack	633	642	652
T. Rear Travel	150	150	150
O. Fork Offset	42	42	42
Standover	733	744	797
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre.
