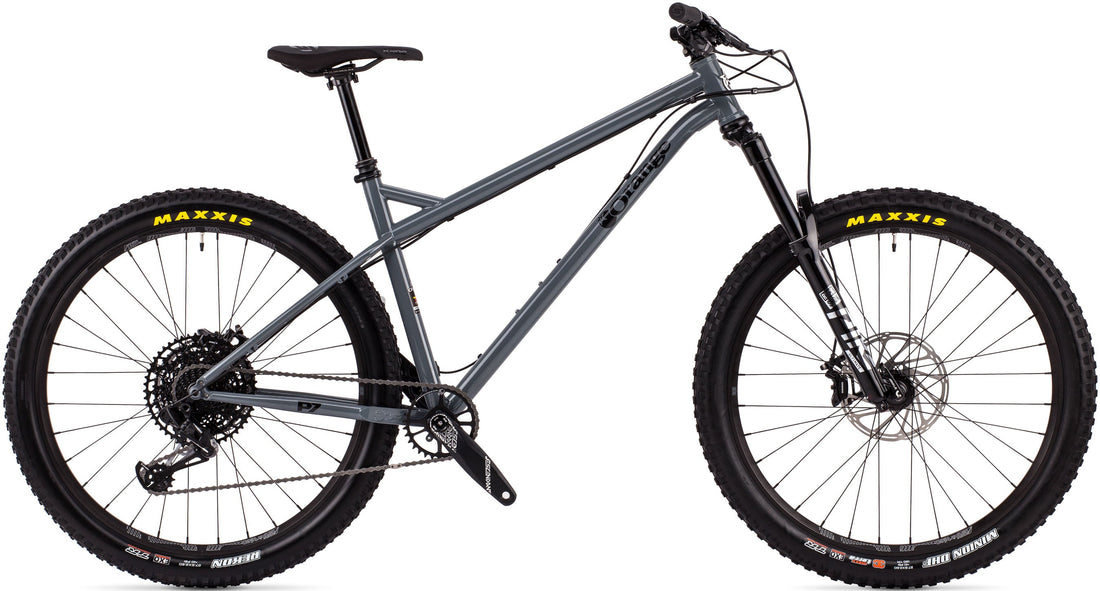

P7 R - 2020

P7 R - 2020

Overview

Why the P7?



F: 150MM | W: 27.5

  • Frame designed in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Custom butted Reynolds 525 CroMo Tubeset
  • 27.5" wheels
  • 150mm travel fork
  • Internal dropper routing
  • Generous mud clearance



Steel Yourself - The P7 is one wild ride

The legendary Orange hardcore steel hardtail has gone through a few changes over the years. For 2020 we've lowered the bottom bracket a tad and put a bit more breathing room in the reach. Other than that we don't want to mess with a good thing. Still the same attitude that'll see it stood outside the headmaster's office on the first day of trail school.

This new P7 has rebel written all over it; long top tube and slack head-angle geometry shows that this bike means business. The whip and the spring of the CroMo chassis cannot be replicated, and once you 'get' steel, it's hard to go back to a frame with a less spirited ride. The P7 urges you to go faster, pedal harder and fly higher.

With frame features like the bolt through rear axle for rigidity, optional hose and cable bosses where you want them, chunky tyre clearances, and internal dropper seatpost routing the P7 is ready to rock and roll.

Back by popular demand in limited numbers, you may have to join the queue - Steel Yourself.

Specs & Options

SIZES AND COLOURS

Sizes
S   M   L   XL
Colour
Fizzy Orange

Select a frame size to choose colour

Decals
Black Decals

Frame and Fork

Reynolds 525. Wheel Size: 27.5.

Headset
Cane Creek 44mm For Tapered Steerer
Fork
RockShox Pike Ultimate 150mm 27.5
Swingarm
Bolt Type Allen Key Head (Boost 148mm Hub)
Rear Shock
N/A

Drivetrain

Bottom Bracket
SRAM DUB
Crankset
SRAM Descendant 6K Dub
Rear Mech
SRAM GX Eagle 12spd
Chain
SRAM NX Eagle
Shifters
SRAM GX Eagle
Cassette
SRAM NX Eagle 1230 11-50T
Chain Device
Not Included

Wheel and Tyres

Wheelset
E13 TRS 30mm 27.5 (Grey) + Hope Pro 4 (Black)
Tyres
Maxxis Minion DHF 2.6 3C and Rekon+ 2.6 27.5
Rim Decals
Standard Rim Decals

Braking

Brakes
Shimano MT520 4-Piston 203/203/183

Finishing Kit

Seatpost
Fox Transfer Elite 150mm Drop
Seat Clamp
Strange Bolted
Stem
Burgtec MK2 Enduro Black 35mm
Saddle
SDG Radar Steel Rail Black/Black
Handlebars
Burgtec RideWide Enduro 800mm
Grips
Strange 130 Single Lock-On Black

Geometry & Tech Info

2020 P7 geometry
P7 Geometry
Reynolds 525 Tubing
Frame Size S M L XL
Seat Tube Length 15" 17" 18" 19"
A. Head Angle 64° 64° 64° 64°
B. Seat Angle 74° 74° 74° 74°
C. Top Tube 597 618 639 662
D. Effective TT 604 622 648 677
E. BB Height (axle diff) -58 -58 -58 -58
E. BB Height (from ground) 291 291 291 291
F. Chainstay 430 430 430 430
G. Head Tube 100 110 120 130
H. Wheelbase 1176 1197 1225 1255
J. Reach 427 443 467 493
K. Stack 615 624 633 642
O. Fork Offset 46 46 46 46
Standover 651 686 700 740
Stem Length 50 50 50 50
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 708 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
150 mm 150 mm 140 mm

Rear Hub 12 x 148 mm Boost
Seatpost Ø 30.9 mm
Seat Clamp Ø 34.9 mm
BB Shell 73mm ISCG 05
Tapered Headset Upper: ZS44/28.6
Lower: EC44/40
