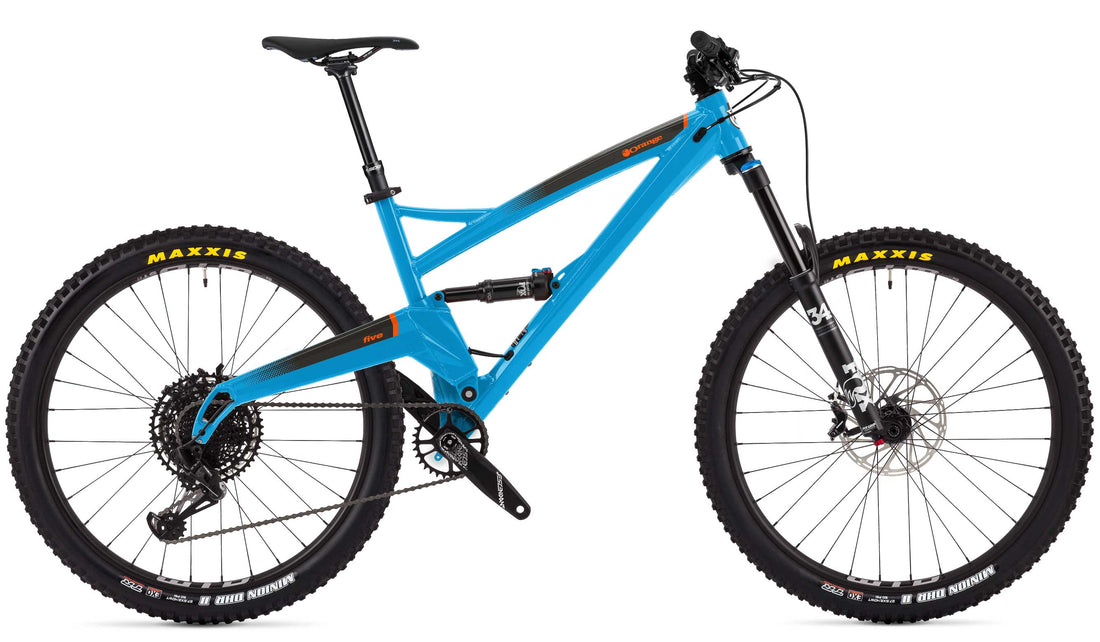

Five Pro - 2020

Five Pro - 2020

Overview

Why the Five?



F: 150MM | R: 145MM | W: 27.5

  • Frame designed and built in Britain
  • 5 year frame warranty
  • Single pivot suspension for the utmost performance, efficiency and reliability
  • New Radically revised progressive suspension frame curve
  • New re-worked geometry for confidence, speed and stability
  • New Geometry optimised for 150mm front/145mm rear travel
  • New Bottle cage mounts
  • 27.5 inch wheels
  • Boost 148 rear hub spacing
  • Aggressive trail geometry
  • Long top tube and wheelbase for high-speed stability
  • Internal dropper post routing
  • Choose from 6 custom colours, Excluding S Spec (Fizzy Orange only)
  • Fine tune your Five with custom upgrade options



There's no getting away from it, the Five is one of the most iconic trail bikes we've ever created. For the best part of twenty years it has stood proud amongst its competition. One of the best performers you'll find, period.

For the Mk12 iteration of the frame we've changed just about everything. While we've maintained classic Five 'shape' we all know and love, the chassis updates we've made with the Five take it to a new level.

While reworking the rear suspension kinematics to fit a metric shock standard, we've made the frame's suspension curve more progressive than any previous Five, giving plush travel  and a bottomless feel. Small adjustments in pivot width, swing-arm length and the key contact points mean the Five has more travel, is as responsive as ever, is more stable at speed, and importantly retains the 'pop' that's always been a part of its playful nature.

We've always loved the Five, and even if we say so ourselves, we've all fallen in love all over again.



The All New Five - The Door

Specs & Options

SIZES AND COLOURS

Sizes
S   M   L   XL   XXL
Colour
Fizzy Orange

Select a frame size to choose colour

Decals

Frame and Fork

6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 27.5. Rear wheel travel: 145.

Swingarm
Bolt Type Allen Key Head (Boost 148mm Hub)
Rear Shock
Fox Float DPS Performance 210x55
Headset
Cane Creek 49mm For Tapered Steerer
Fork
Fox Performance 34 Float 150mm 27.5

Drivetrain

Chain Device
Not Included
Bottom Bracket
SRAM DUB
Crankset
SRAM Descendant 6K Dub
Rear Mech
SRAM GX Eagle 12spd
Chain
SRAM NX Eagle
Shifters
SRAM NX Eagle
Cassette
SRAM NX Eagle 1230 11-50T

Wheel and Tyres

Rim Decals
Standard Rim Decals
Wheelset
WTB ST Light i30 on Strange Pro 27
Tyres
Maxxis DHR II 2.4 Exo TR 27.5

Braking

Brakes
Shimano MT520 4-Piston 203/203/183

Finishing Kit

Seatpost
SDG Tellis 150mm
Seat Clamp
Strange Bolted
Stem
Race Face Chester M35 x 40mm
Saddle
WTB Silverado Comp
Handlebars
Burgtec RideWide Enduro 800mm
Grips
Strange 130 Single Lock-On Black

Geometry & Tech Info

2020 Five Mk12 geometry
FIVE GEOMETRY
Monocoque/6061-T6 Custom Butted Aluminium tubing
Frame Size S M L XL XXL
Seat Tube Length 15" 17" 18" 19" 20"
A. Head Angle 65° 65° 65° 65° 65°
B. Seat Angle (Actual) 72º 72º 72º 72º 72º
B. Seat Angle (Effective) 74º 74º 74° 74º 74º
C. Top Tube 575 595 614 650 653
D. Top Tube (Effective) 600 620 640 660 680
E. BB Height (from ground) 329 329 329 329 329
E. BB height (from axles) -25 -25 -25 -25 -25
F. Chainstay 433 433 433 433 433
G. Head Tube 100 110 110 125 130
H. Wheel base 1176 1197 1217 1240 1261
J. Reach 429 447 467 483 502
K. Stack 599 608 608 621 626
T. Rear Travel 145 145 145 145 145
Standover 695 717 743 768 782
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 708 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
150 mm 150 mm 150 mm
Shock Length 210 mm x 55mm
Rear Hub 12 x 148mm Boost
Fork Offset 46 mm
Seatpost Ø 30.9 mm
Seatclamp Ø 34.9 mm
Front Derailleur N/A
BB Shell 73 mm ISCG05
Tapered Headset Upper: ZS49/28.6
Lower: EC49/40
