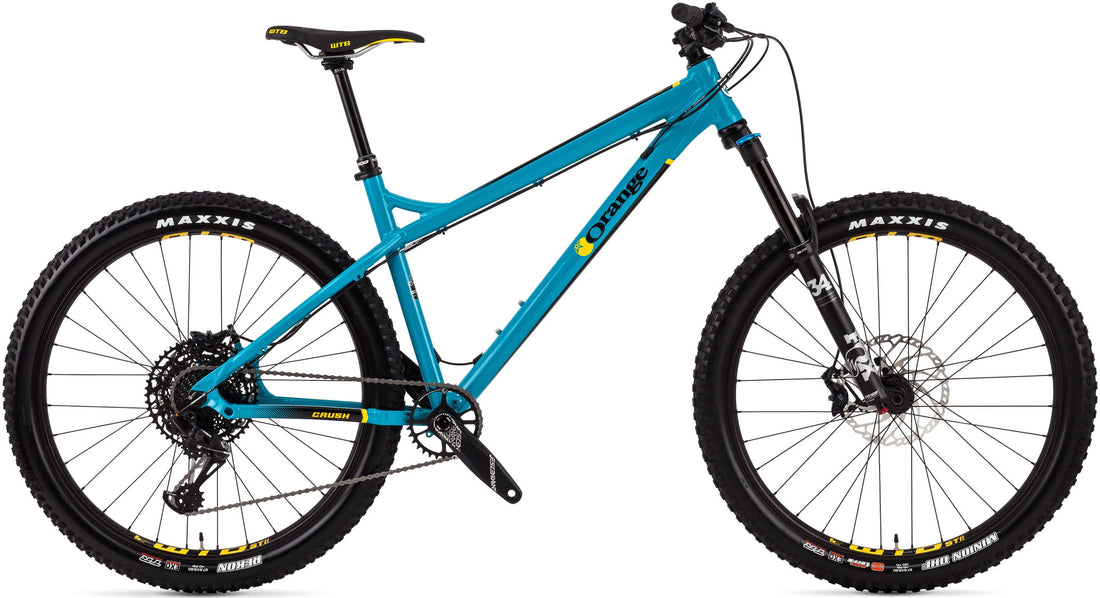

Crush Pro - 2020

December 16, 2025

Overview

Why the Crush?

F: 150MM | W: 27.5

Frame designed in Britain
5 year frame warranty with Limited Lifetime Crash Replacement
Custom butted 6061-T6 aluminium frame
Frame geometry for 150mm travel fork
Bolt through 12 x 148 hub spacing
Yoked chainstay design gives clearance for 27.5 2.6 tyres
73mm BB Shell with ISCG 05 tabs
Minimal design cable & hose bosses

The Orange Crush is a bike you don't want to mess with. It's loved and revered, with award winning performance. It's the definitive aluminium hardcore hardtail.

The frame is bang on point, the rear triangle features a 148
Boost bolt-through axle, giving unparalleled stability to what is already a strong and rigid chassis. The new model's geometry has been tweaked with a 64° head angle which, matched with the Crush’s long top tube design, adds an extra degree of confidence in the handling. With a short 50mm stem the rider is right where they need to be for direct control and weight distribution. Short chainstays make climbing as sweet as ever for a long-forked hardtail, those stays now reshaped with a CNCed yoke on the chainstay to allow plenty of clearance for a more than chunky 2.6 tyre.

The Crush’s unshakeable attitude is as strong as ever. Built tough to be ridden hard, where it really excels, on the rough stuff.

Specs & Options

SIZES AND COLOURS

Sizes

S M L XL

Colour

Tropical Blue

Decals

Black/Yellow Decals

Frame and Fork

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5.

Headset

FPD 44mm

Fork

Fox Performance 34 Float 150mm 27.5

Swingarm

Bolt Type Allen Key Head (Boost 148mm Hub)

Rear Shock

N/A

Drivetrain

Bottom Bracket

Shimano Hollow Tech II

Crankset

SRAM Descendant 6K Dub

Rear Mech

SRAM GX Eagle 12spd

Chain

SRAM SX Eagle

Shifters

SRAM NX Eagle

Cassette

SRAM SX Eagle 1210 11-50T

Chain Device

Not Included

Wheel and Tyres

Wheelset

WTB ST Light i30 on Strange Pro 27

Tyres

Maxxis Minion DHF 2.6 3C and Rekon+ 2.6 27.5

Rim Decals

Standard Rim Decals

Braking

Brakes

Shimano SLX 203/180

Finishing Kit

Seatpost

SDG Tellis 150mm

Seat Clamp

Strange Bolted

Stem

Race Face Chester M35 x 40mm

Saddle

WTB Silverado Comp

Handlebars

Burgtec RideWide Enduro 800mm

Grips

Strange 130 Single Lock-On Black

Pedals

Kore Rivera Thermo

Geometry & Tech Info

Crush Geometry

6061-T6 Custom Butted OS Aluminium Tube
Frame Size	S	M	L	XL
Frame Size	S	M	L	XL
Seat Tube Length	15"	17"	18"	20"
A. Head Angle	64°	64°	64°	64°
B. Seat Angle	73.5°	73.5°	73.5°	73.5°
C. Top Tube	605	615	630	642
D. Effective TT	600	620	640	660
E. BB Height (axle diff)	-48	-48	-48	-48
E. BB Height (from ground)	310	310	310	310
F. Chainstay	430	430	430	430
G. Head Tube	100	110	120	130
H. Wheelbase	1178	1200	1221	1243
J. Reach	418	436	453	470
K. Stack	613	622	629	640
O. Fork Offset	46	46	46	46
Standover	652	675	705	740
Stem Length	50	50	50	50
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 710 mm Ø tyre.
