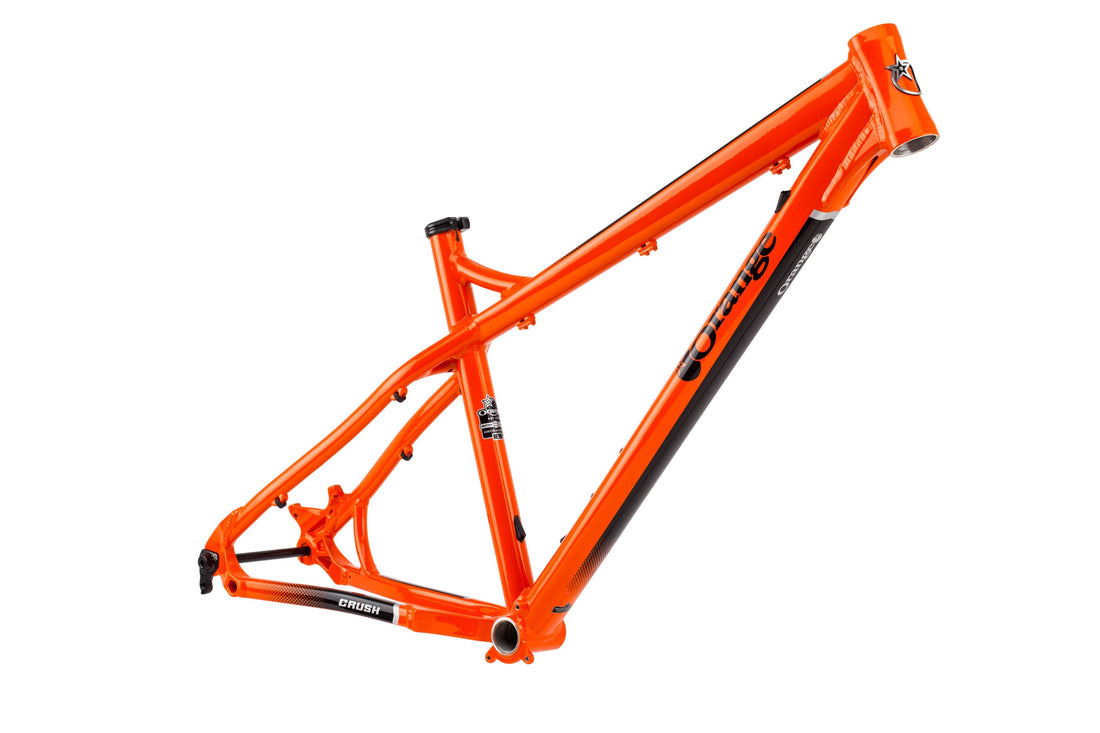

Crush Frame - 2020

December 16, 2025

Overview

Why the Crush?

F: 150MM | W: 27.5

Frame designed in Britain
5 year frame warranty with Limited Lifetime Crash Replacement
Custom butted 6061-T6 aluminium frame
Frame geometry for 150mm travel fork
Bolt through 12 x 148 hub spacing
Yoked chainstay design gives clearance for 27.5 2.6 tyres
73mm BB Shell with ISCG 05 tabs
Minimal design cable & hose bosses

The Orange Crush is a bike you don't want to mess with. It's loved and revered, with award winning performance. It's the definitive aluminium hardcore hardtail.

The frame is bang on point, the rear triangle features a 148
Boost bolt-through axle, giving unparalleled stability to what is already a strong and rigid chassis. The new model's geometry has been tweaked with a 64° head angle which, matched with the Crush’s long top tube design, adds an extra degree of confidence in the handling. With a short 50mm stem the rider is right where they need to be for direct control and weight distribution. Short chainstays make climbing as sweet as ever for a long-forked hardtail, those stays now reshaped with a CNCed yoke on the chainstay to allow plenty of clearance for a more than chunky 2.6 tyre.

The Crush’s unshakeable attitude is as strong as ever. Built tough to be ridden hard, where it really excels, on the rough stuff.

Specs & Options

SIZES AND COLOURS

Sizes

S M L XL

Colour

Fizzy Orange

Decals

Black Decals

Frame and Fork

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5.

Swingarm

Bolt Type Allen Key Head (Boost 148mm Hub)

Headset

Finishing Kit

Seat Clamp

Strange QR

Geometry & Tech Info

Crush Geometry

6061-T6 Custom Butted OS Aluminium Tube
Frame Size	S	M	L	XL
Frame Size	S	M	L	XL
Seat Tube Length	15"	17"	18"	20"
A. Head Angle	64°	64°	64°	64°
B. Seat Angle	73.5°	73.5°	73.5°	73.5°
C. Top Tube	605	615	630	642
D. Effective TT	600	620	640	660
E. BB Height (axle diff)	-48	-48	-48	-48
E. BB Height (from ground)	310	310	310	310
F. Chainstay	430	430	430	430
G. Head Tube	100	110	120	130
H. Wheelbase	1178	1200	1221	1243
J. Reach	418	436	453	470
K. Stack	613	622	629	640
O. Fork Offset	46	46	46	46
Standover	652	675	705	740
Stem Length	50	50	50	50
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 710 mm Ø tyre.
