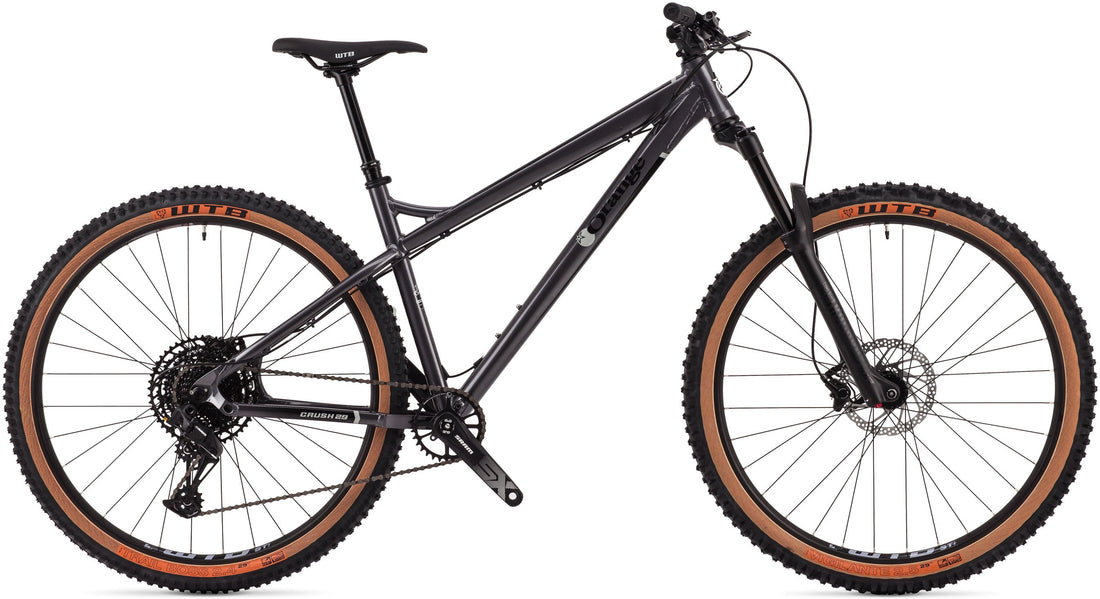

Crush 29 comp - 2020

Crush 29 comp - 2020

Overview

Why the Crush 29?



F: 140MM | W: 29

  • Frame designed in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Custom butted 6061-T6 aluminium frame
  • Frame geometry for 140mm travel fork
  • Bolt through 12 x 148 hub spacing
  • 73mm BB Shell with ISCG 05 tabs
  • Internal dropper routing
  • Yoked chainstay design gives clearance for 29x2.5 tyres or 27.5x3.0
  • Minimal design cable & hose bosses



There's a well known adage: "This one goes to 11". You know it, we know it, and it makes us grin. And the same applies to this new version of our notorious Crush, but we've notched it a little higher – This one goes to 29.

If the latest Crush isn't nuts enough in the hardcore hardtail stakes then this one's for you – the Crush 29 has landed, fast and hard. This is one rip-roaring ride on the dark side, designed to crash through everything you chuck it at. Seriously, you've been warned, it's going to spoil you, trails won't seem the same after you've screamed through them on a Crush 29.

All the checkboxes that make the classic Crush so good are ticked in bold here. Slack and low, fast and fierce. What more do you need to know? Yes, it's got a bolt-through rear axle, stacks of big 29er tyre clearance and ISCG05 all present and correct for the hooligans. The frame also offers the clearance to allow you to run 27.5+ tyres up to a 3.0 inch carcass if that's how you roll.

It's difficult not to get over-excited about the Crush 29. It puts just about every other hardtail in the shade - and you've got to love it for that. We know we do.

Specs & Options

SIZES AND COLOURS

Sizes
M   L   XL
Colour
Gloss Charcoal Grey

Select a frame size to choose colour

Decals
Black Decals

Frame and Fork

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29.

Swingarm
Bolt Type Allen Key Head (Boost 148mm Hub)
Rear Shock
N/A
Headset
FPD 44mm
Fork
RockShox Sektor 140mm 29

Drivetrain

Chain Device
Not Included
Bottom Bracket
SRAM DUB
Crankset
SRAM SX Eagle 32t
Rear Mech
SRAM SX Eagle 12spd
Chain
SRAM SX Eagle
Shifters
SRAM SX Eagle
Cassette
SRAM SX Eagle 1210 11-50T

Wheel and Tyres

Rim Decals
Standard Rim Decals
Wheelset
WTB ST i30 on Strange Pro 29
Tyres
WTB Vigilante 2.5 and Trail Boss 2.4 29

Braking

Brakes
Shimano MT400

Finishing Kit

Seatpost
KS Ragei 150mm Drop
Seat Clamp
Strange QR
Stem
Strange Stalk 40mm
Saddle
WTB Silverado Sport
Handlebars
Strange 0.5" Riser 780mm
Grips
Strange 130 Single Lock-On Black
Pedals
Kore Rivera Thermo

Geometry & Tech Info

2020 Crush 29 geometry
Crush Geometry
6061-T6 Custom Butted OS Aluminium Tube
Frame Size M L XL
Seat Tube Length 17" 18" 20"
A. Head Angle 65° 65° 65°
B. Seat Angle 73.5° 73.5° 73.5°
C. Top Tube 622 635 647
D. Top Tube (effective) 620 640 660
E. BB Height (from ground) 310 310 310
E. BB height (axle DIFF) -60 -60 -60
F. Chainstay 445 445 445
G. Headtube 110 120 130
H. Wheel base 1195 1221 1242
J. Reach 428 445 462
K. Stack 648 657 666
O. Fork Offset 51 51 51
Standover 689 706 746
Stem length 50 50 50
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 710 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
140 mm 140 mm 140 mm

Fork Offset 51 mm
Rear Hub 12 x 148 mm Boost
Seatpost Ø 30.9 mm
Seatclamp Ø 34.9 mm
BB Shell 73mm ISCG 05
Tapered Headset Upper: ZS44/28.6
Lower: EC44/40
Ride Guide
Downhill
Freeride
Enduro
All-Mountain
Trail
XC Racing
Bike Packing
Gravel
