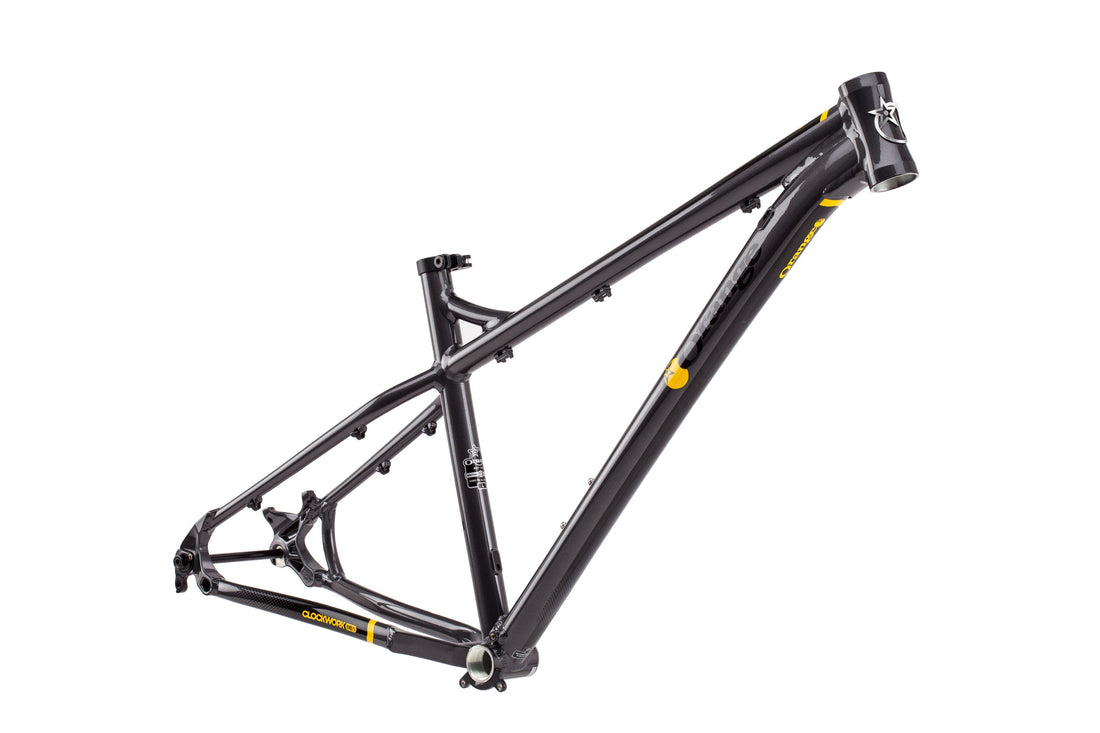

Clockwork Evo 29 Frame - 2020

December 17, 2025

Overview

Why the Clockwork EVO 29?

F: 130MM | W: 29

Super Lightweight Frame Designed in Britain
5 year frame warranty with Limited Lifetime Crash Replacement
Custom butted 6061-T6 aluminium frame
Improved standover and EVO geometry
Geometry revised for 130mm travel fork
Bolt through 12 x 148 boost hub spacing

Prefer 27.5 inch wheels? Try the Clockwork EVO.

The new Clockwork EVO 29 pushes the 29er model into the hard & fast trail arena. Running a 130mm travel fork, this one's for the fast and loose big wheel hardtail fans out there.

The EVO 29 shares the same tidy frame features as the 27.5:
neat external routing that tucks the cables cleanly under the top tube and internal stealth cable routing for a dropper post are both nice touches. The sturdy 12x148mm Boost bolt-though rear axle adds strength and rigidity for the 29er wheelset.

Trail centre hardtail, or out and out explorer, it’s up to you. But however you choose to ride the Clockwork EVO 29, it will be a more than worthy trail buddy.

Specs & Options

SIZES AND COLOURS

Sizes

M L XL

Colour

Gloss Charcoal Grey

Decals

Yellow/Black Decals

Frame and Fork

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29.

Swingarm

Bolt Type Allen Key Head (Boost 148mm Hub)

Headset

Finishing Kit

Seat Clamp

Strange QR

Geometry & Tech Info

Clockwork Evo 29 Geometry

6061-T6 Custom Butted Aluminium
Frame Size	M	L	XL
Seat Tube	17"	18"	19"
A. Head Angle	66°	66°	66°
B. Seat Angle	74°	74°	74°
C. Top Tube	632	643	654
D. Effective TT	630	650	670
E. BB Height (axle diff)	-68	-68	-68
E. BB Height (from ground)	302	302	302
F. Chainstay	450	450	450
G. Head Tube	110	110	120
H. Wheelbase	1198	1217	1239
J. Reach	445	465	483
K. Stack	646	646	655
O. Fork Offset	51	51	51
Stem Length	50	50	50
Standover	687	706	745
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 740 mm Ø tyre.
