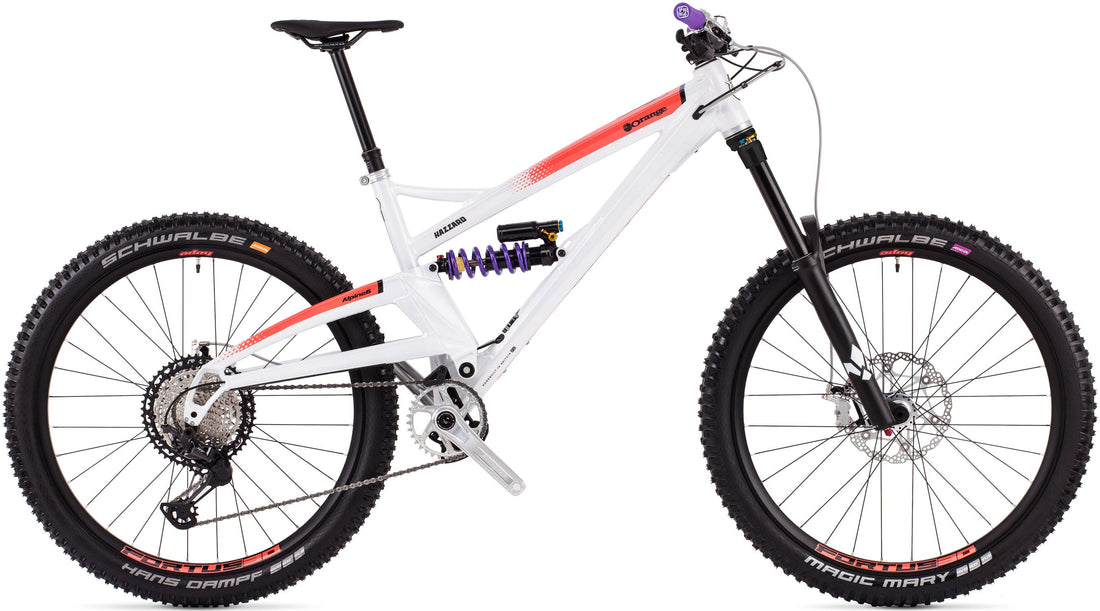

Alpine 6 Hazzard - 2020

Alpine 6 Hazzard - 2020

Overview

Why the Alpine 6 Hazzard?



  • Brand New monocoque 6061-T6 aluminium frame
  • Designed and built in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Unique Single-pivot suspension for optimum performance, efficiency and reliability
  • New Radically revised, more progressive frame suspension layout with 230x65mm metric shock
  • New Reworked Alpine geometry for confidence, speed and stability
  • New 170mm Front/165mm rear travel
  • Hazzard Spec Formula Suspension package selected by Joe Barnes
  • One Up Cockpit components
  • New Frame Bottle Bosses
  • Boost 148 rear hub spacing
  • Available in 5 model specs: S, Pro, RS, Factory and XTR
  • Bike Builder: Component upgrades available and a choice of
  • Special Hazzard Racin colourway



This is a Limited Edition Hazzard Racing spec of the Alpine 6. It is the same specification that the team members are running this season, featuring suspension components from Formula (See videos below), Cockpit set-up from One Up and some neat silver anodozed Hope Tech goodies to finish the package. There is also a Limited Edition Switch 6 Hazzard mixed wheel 29/27.5 model.

The Challenge: How do we go about updating a bike in our range whose legion of fans don't want us to change anything?
The answer, as with everything we do, is with great care and a stack of test feedback.

The new Alpine 6 has been through one of the most intensive prototyping programs we've ever done – the result is spectacular.

With the introduction of the 230mm metric shock, we have revised the suspension layout to increase the rear travel. We've also tuned the frame to be more progressive to retain a bottomless feel and improve small bump smoothness, treading that fine line that keeps wallow at bay and gives the Alpine 6 all the control it needs.

The geometry has also been under the microscope and refined to match the new suspension performance, resulting in more agility, stability and confident speed.

When you come upon one of those unholy beasts of a trail, this is the bike to take it on at full-gas and tame it.



Alpine 6 – Duel

Specs & Options

SIZES AND COLOURS

Sizes
S   M   L   XL   XXL
Colour
Cosmic White

Select a frame size to choose colour

Decals
As Image

Frame and Fork

6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 27.5. Rear wheel travel: 165.

Swingarm
Bolt Type Allen Key Head (Boost 148mm Hub)
Rear Shock
Formula Coil 230x65
Headset
Hope Silver - 49mm for Tapered Steerer
Fork
Formula Selva S 170mm 27.5

Drivetrain

Shifters
Shimano XT 12spd
Cassette
Shimano XT 10-51T
Chain Device
OneUp Bash Guide ISCG05
Bottom Bracket
Hope 30mm Silver
Crankset
Hope Silver 34t
Rear Mech
Shimano XT 12spd
Chain
Shimano XT 12spd

Wheel and Tyres

Rim Decals
Standard Rim Decals
Wheelset
Hope Fortus on Hope Pro 4 silver 27.5
Tyres
Schwalbe Magic Mary 2.35 SG US / Hans Dampf 2.35 SG S 27.5

Braking

Brakes
Hope Tech 3 V4 Silver 203/180

Finishing Kit

Handlebars
OneUp Carbon Bar 800mmx20mm
Grips
Gusset Black
Seatpost
OneUp Dropper Post V2 180mm
Seat Clamp
Hope Bolted Silver
Stem
OneUp Stem Black 35mm
Saddle
Gusset S2 SM

Geometry & Tech Info

2020 Alpine 6 Mk2 Geometry
ALPINE 6 GEOMETRY
Monocoque/6061-T6 Custom Butted Aluminium tubing
Frame Size S M L XL XXL
Seat Tube Length 15" 17" 18" 19" 20"
A. Head Angle 64° 64° 64° 64° 64°
B. Seat Angle (Actual) 72° 72° 72° 72° 72°
B. Seat Angle (Effective) 74° 74° 74° 74° 74°
C. Top Tube 582 601 619 641 658
D. Top Tube (effective) 605 625 645 665 685
E. BB Height (from ground) 337 337 337 337 337
BB height (from axles -17 -17 -17 -17 -17
F. Chainstay 441 441 441 441 441
G. Head Tube 100 110 120 125 130
H. Wheel base 1208 1231 1251 1272 1293
J. Reach 432 447 467 486 505
K. Stack 602 620 620 624 629
T. Rear Travel 165 165 165 165 165
Standover 700 724 752 775 790
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 708 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
170 mm 170 mm 160 mm
Shock Length 230 x 65 mm
Rear Hub 12 x 148mm Boost
Fork Offset 46 mm
Seatpost Ø 30.9 mm
Seatclamp Ø 34.9 mm
Front Derailleur N/A
BB Shell 73 mm ISCG05
Tapered Headset Upper: ZS49/28.6
Lower: EC49/40
Ride Guide
Downhill
Freeride
Enduro
All Mountain
Trail
XC Racing
Bike Packing
Gravel
