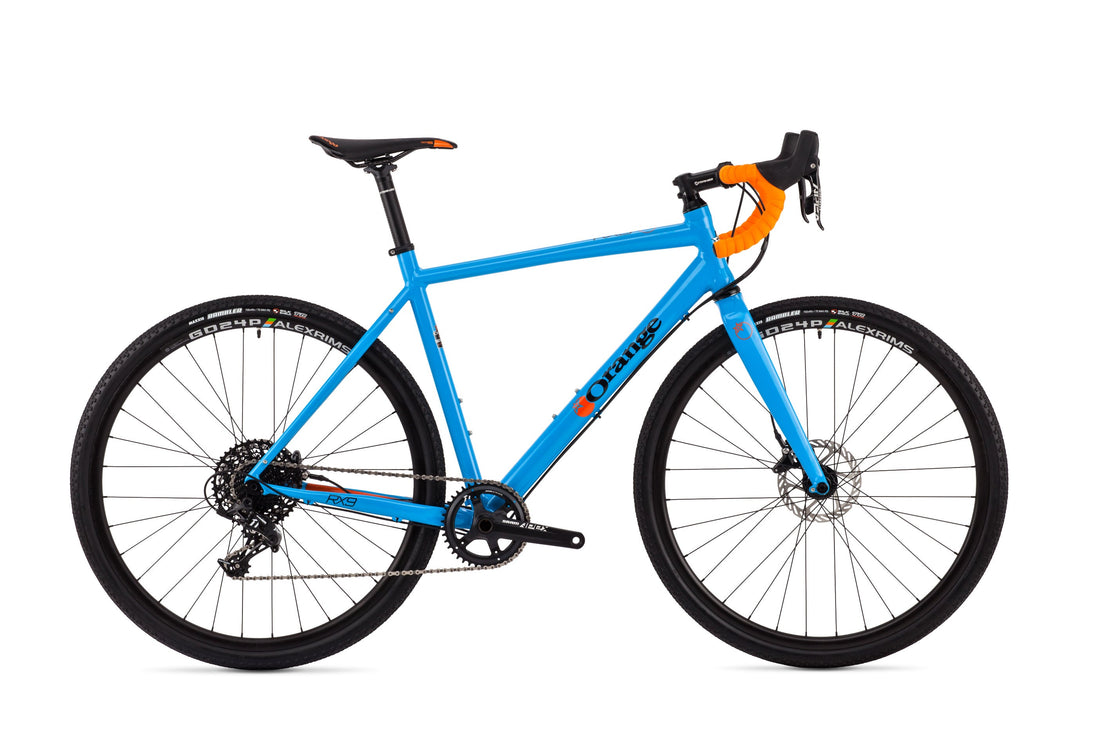

RX9 Pro - 2019
Overview
Why the RX9?
- Orange Road Cross Bike
- Lightweight frame designed in Britain
- 5 year frame warranty
- Carbon Fork 15mm Bolt Through
- Updated Frame with improved cable routing and 142x12mm bolt through dropouts
- Clearance for 42mm tyres
- Mudguard compatible
A great spec with its rugged 1x11 drivetrain and hydraulic disk brakes. The carbon fork looks sharp and adds comfort up front
RX9 – SIMPLE REFINEMENT OF A CLASSIC GRAVEL PERFORMER
We love the RX9 so much, it hits that perfect sweet spot for an all-road-off-road machine. It’s well-mannered on tarmac but really comes into its own when you turn down those unexplored trails you always wanted to check out. Confident off-road geometry means the RX9 is reassuringly capable for a dropbar bike.
The responsive and comfortable double-butted alloy frame features a low 30.9 seat tube for plenty or standover. Meanwhile, a 142 x 12mm bolt-through rear and 15mm bolt-through fork keeps things feeling sturdy and the handling snappy. The frame has internal dropper post compatibility too, so you can spec an RX9 to be as wild as you like. You’ve plenty of tyre choice too, with carefully shaped stays to allow up to 42mm 700c or a large volume 650b set-up.
Flat mount standard disc mount keeps things tidy and accessible for running panniers and mudguards – great for going the distance whatever the weather.
Romeo X-Ray Nine
Specs & Options
SIZES AND COLOURS
Frame and Fork
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 700c.
Drivetrain
Wheel and Tyres
Braking
Finishing Kit
Geometry & Tech Info
RX9 Geometry
| 6061-T6 Double Butted Aluminium | ||||
| Frame | S | M | L | XL |
| Frame Size (cm) | 50 | 52 | 54 | 56 |
| A. Head Angle | 70° | 70° | 70° | 70° |
| B. Seat Angle | 73° | 73° | 73° | 73° |
| C. Top Tube | 520 | 536 | 551 | 556 |
| D. Effective TT | 540 | 555 | 570 | 585 |
| E. Bottom Bracket Height | -70 | -70 | -70 | -70 |
| F. Chainstay | 435 | 435 | 435 | 435 |
| G. Head Tube | 125 | 140 | 160 | 180 |
| H. Wheelbase | 1024 | 1040 | 1056 | 1072 |
| I. Front & Centre | 599 | 615 | 621 | 647 |
| J. Reach | 368 | 380 | 390 | 400 |
| K. Stack | 558 | 574 | 593 | 612 |
| Standover | 745 | 760 | 780 | 802 |
| Seat Tube Ø | 30.9 | 30.9 | 30.9 | 30.9 |
|
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 735mm Ø tyre. |
||||
RX9 Technical Info
| Rear Hub | 142 x 12 | ||
| Rear Axle | Length-160mm, Thread-20mm, Pitch-M12X1.5 | ||
| Front Hub | 100 x 15 | ||
| Front Axle | Length-152mm, Thread-20mm, Pitch-M12X1.5 | ||
| Seatpost Ø | 30.9 mm | ||
| Seat Clamp Ø | 34.9 mm | ||
| Front Derailleur | Band | ||
| BB Shell | 68 mm | ||
| 1.1/8"Headset | Upper: ZS44/28.6 Lower: EC44/40 |
||
