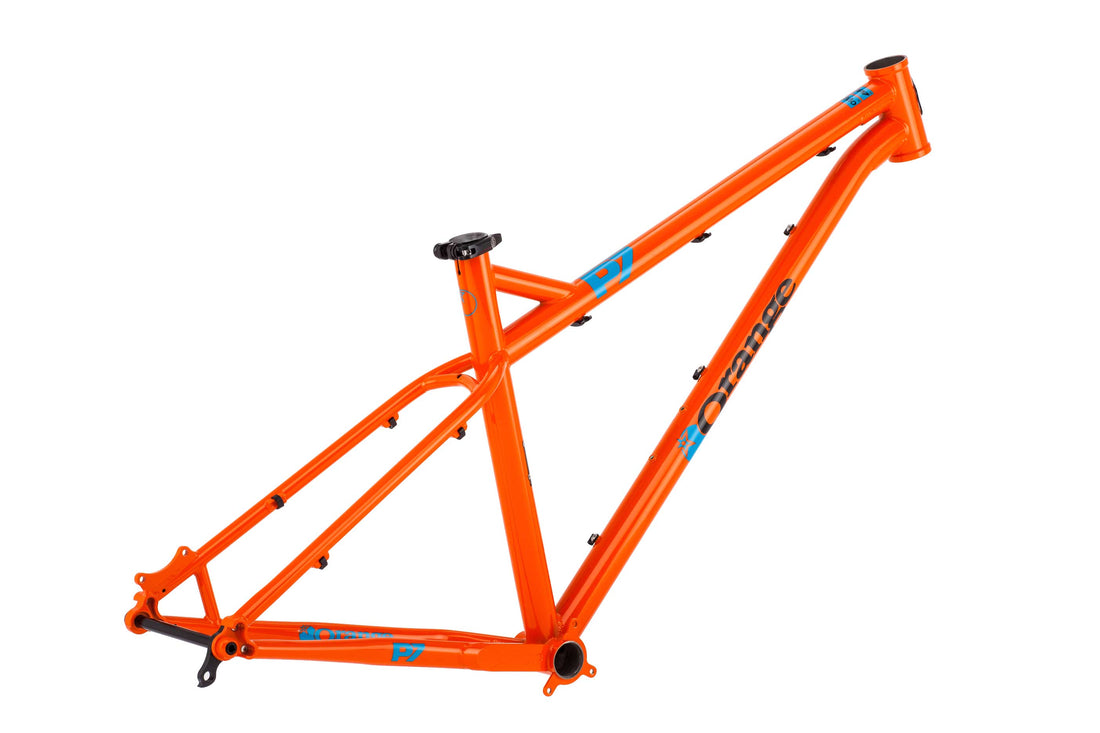

P7 29 Frame - 2019

P7 29 Frame - 2019

Overview

Why the P7 29?



  • Designed in Britain
  • Five year frame warranty
  • Custom butted Reynolds 525 CroMo Tubeset
  • 29" wheels
  • Geomtrey of a 130mm fork
  • Internal dropper routing
  • Frame clearance for 29x2.6 or 27.5x3.0 tyres



It was only a matter of time and we couldn't ignore the clamour any longer; by popular demand, a 29 inch wheel version of our cult Reynolds 525 steel frame P7 just had to be built.

After a stop start beginning the 29 inch wheel size is now firmly here to stay. The geometry is better than ever, riders realise the advantages and new standards have brought more reliability and performance to wheel builds. We are in the era of the 29er.

This P7 29 ups the ante from its little wheeled brother, a veritable runaway trail train, the 29er version will have the wind whistling in your ears before you realise how fast you're travelling. With a 130mm travel fork up front this bike roars with confidence taking everything before it in its long legged stride.

The frame also offers stacks of clearance to allow you to run 27.5+ tyres up to a 3.0 inch carcass if that's how you roll. Fast and raucous, grippy and sure-footed and every level in-between – how you choose to ride your P7 29 is up to you.

Specs & Options

SIZES AND COLOURS

Sizes
M   L   XL
Colour

Select a frame size to choose colour

Decals
Black/Blue Decals

Frame and Fork

Reynolds 525. Wheel Size: 29.

Swingarm
Bolt Type Allen Key Head (Boost 148mm Hub)
Rear Shock
N/A
Headset

Drivetrain

Chain Device

Finishing Kit

Seat Clamp

Geometry & Tech Info

2018 P7 29 geometry
P7 Geometry
Reynolds 525 Tubing
Frame Size M L XL
Seat Tube Length 17" 18" 20"
A. Head Angle 66.5° 66.5° 66.5°
B. Seat Angle 74° 74° 74°
C. Top Tube 622 633 645
D. Effective TT 620 640 660
E. BB Height (axle diff) -60 -60 -60
E. BB Height (from ground) 310 310 310
F. Chainstay 445 445 445
G. Head Tube 110 120 130
H. Wheelbase 1181 1202 1224
J. Reach 434 452 469
K. Stack 648 657 666
Standover 692 710 751
Stem Length 50 50 50
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 740 mm Ø tyre.
technical Info
fork travel
OPTIMUM MAXIMUM MINIMUM
130 mm 130 mm 130 mm
  Single crown   Triple Clamp
Rear Hub 148mm x 12mm Boost
Seatpost Ø 30.9 mm
Front Derailleur None
BB Shell 73mm ISCG 05
Tapered Headset Upper: ZS44/28.6
Lower: EC44/40
Ride Guide
Yes Downhill 4.0 out of 5 stars
Yes Freeride 4.0 out of 5 stars
Yes Enduro 5.0 out of 5 stars
Yes All-Mountain 4.0 out of 5 stars
Yes XC Trail 4.0 out of 5 stars
Yes Adventure 4.0 out of 5 stars
Yes Touring 4.0 out of 5 stars
Yes XC Racing 4.0 out of 5 stars
